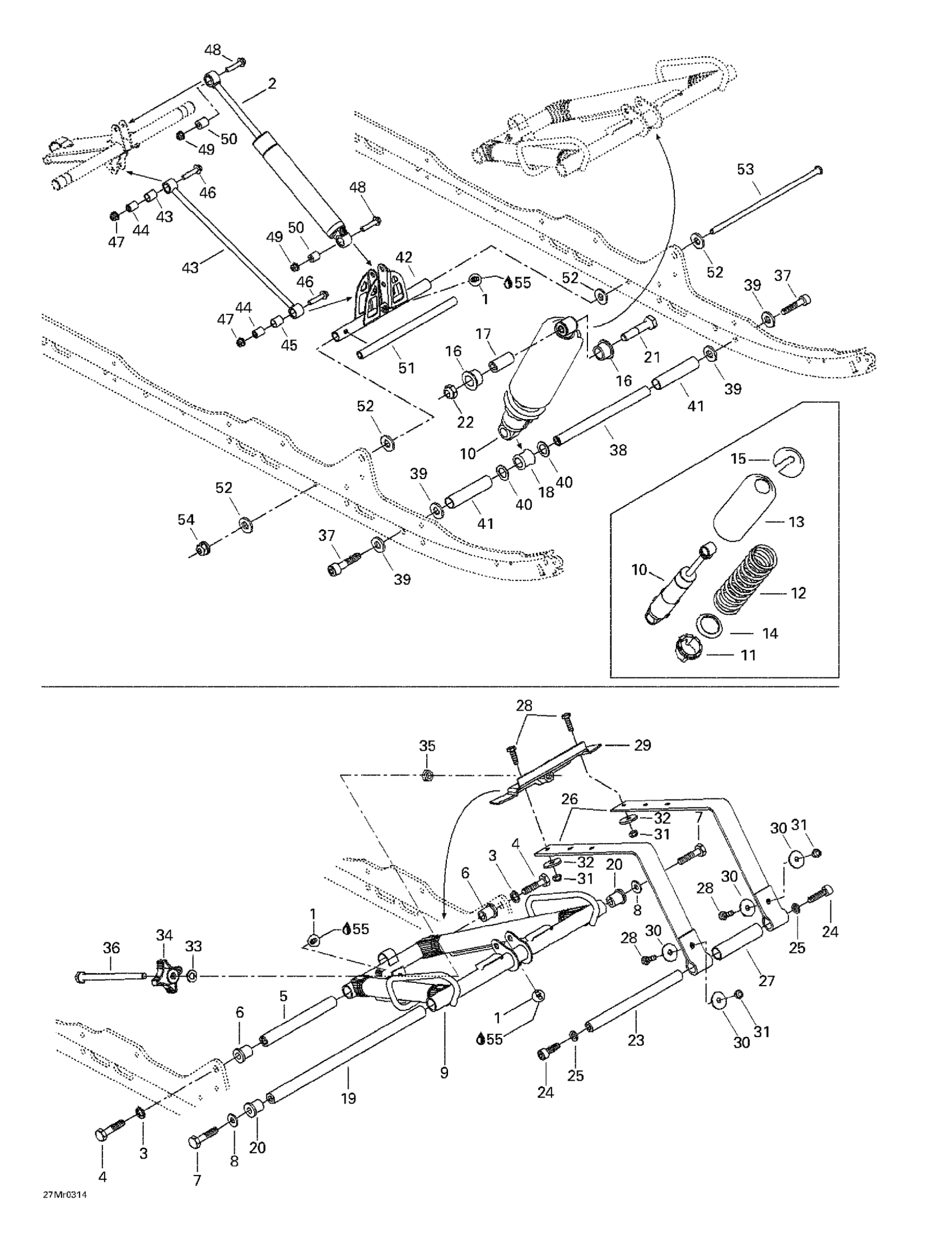

Ski-Doo Summit 600 HO/700/800 HO, 2003 08- Front Arm And Shock Diagram

#

Description
Price

1

Grease Fitting

408200700

$3.49

2

Rear shock | ADRENALINE & HIGHMARK

503189897

Unavailable

Rear shock | X & HIGHMARK X Summit 700. Summit 800.

503190024

Unavailable

Rear shock | HIGHMARK X EXTREME Summit 800.

503190020

Unavailable

Rear shock | ADRENALINE (EUROPE) Summit 600.

503190236

Unavailable

Rear shock | X (EUROPE) Summit 800.

503190225

Unavailable

3

Washer

503189276

$3.28

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

5

SHAFT - Call your local BRP dealership

503189313

Unavailable

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

8

Washer

732900049

$0.58

9

Front arm

503189797

Unavailable

10

Center shock | ADRENALINE & HIGHMARK. ADRENALINE (EUROPE) Summit 600.

503189893

Unavailable

Center shock | X & HIGHMARK X Summit 700. Summit 800.

503190017

Unavailable

Center shock | X (EUROPE) Summit 800.

503190226

Unavailable

Center shock | HIGHMARK X EXTREME Summit 800.

503190015

Unavailable

11

Adjustment Cam

505073625

$12.99

Adjustment Cam

505073625

$12.99

Adjustment Cam

505073625

$12.99

12

Spring

415070500

Unavailable

Black, Spring

503189686

$67.99

13

Protector

503193663

$37.99

14

Spring Guide

503187500

$10.49

Spring Guide

503191872

$2.29

15

Spring Stopper

706200881

$12.99

16

Urethane Bushing

503189117

$8.19

17

Bushing | Includes 240d to 240d1

503189282

$4.34

18

Bushing

503189271

$13.99

19

SHAFT - Call your local BRP dealership

503190387

Unavailable

20

Bushing

503189324

$14.15

21

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

22

Elastic Locking Nut M10 X 1.5

233601416

$1.69

23

AXLE - Call your local BRP dealership

503189562

Unavailable

24

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

25

Washer

503189564

$0.74

26

Stopper strap

503189450

Unavailable

27

SPACER - Call your local BRP dealership

503189936

Unavailable

28

Hex. Screw M8 X 25

207182544

$0.90

29

Belt Bracket

503189806

Unavailable

30

Flat Washer

224081301

$0.88

31

Hex. Elastic Stop Nut M8

232581414

$0.56

32

Washer

503183100

$3.17

33

Washer

503183800

$3.28

34

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

35

Hex. Nut M10 X 1.5

232006414

$1.37

36

BOLT, LONG - Call your local BRP dealership

250000062

Unavailable

37

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

38

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

39

Washer

503189276

$3.28

40

Washer

503189273

$3.28

41

SPACER - Call your local BRP dealership

503189274

Unavailable

42

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

43

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

44

BUSHING - Call your local BRP dealership

503189133

Unavailable

45

CUSHION - Call your local BRP dealership

503189625

Unavailable

46

Hex. Flange Screw M8 X 40

207684044

$1.48

47

Elastic Flange Nut M8

250100025

$1.48

48

Hex. Flange Screw M8 X 40

207684044

$1.48

49

Elastic Flange Nut M8

250100025

$1.48

50

Bushing

414936000

$13.99

51

Pivot Arm Axle

503189156

$21.99

52

Washer

503189157

$3.28

53

Bolt M8 X 248mm

503192440

$30.49

54

Elastic Flange Nut M8

250100025

$1.48

55

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
