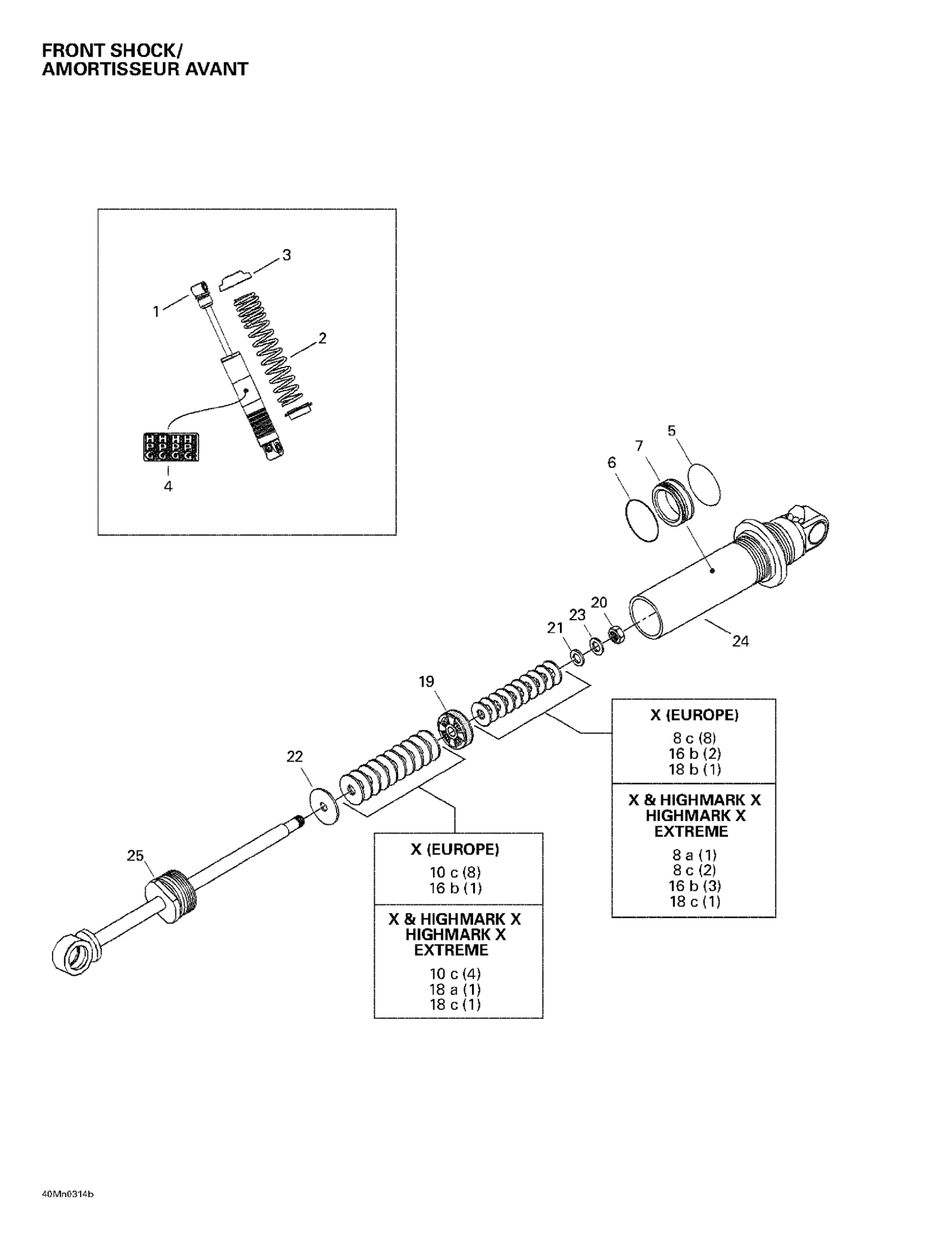

Ski-Doo Summit 600 HO/700/800 HO, 2003 07- Front Take Apart Shocks Diagram
#
1
Front shock | X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.
505070753
Unavailable
Front shock | X (EUROPE) Summit 800 HO.
505070894
Unavailable
2
Spring | X, Highmark X, HM Xtreme
505070760
Unavailable
Spring | X, Highmark X, HM Xtreme
505070760
Unavailable
4
Shock Decal
516000183
Unavailable
Shock Decal
516000183
Unavailable
7
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
8a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
8b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
8c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
9a
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
9b
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
10a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
10b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
10c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
11a
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
11b
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
12a
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
13a
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
13b
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
13c
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
14a
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
14b
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
15a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
15b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
15c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
15d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
16a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
16b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
16c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
16d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
17a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
17b
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
17c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
17d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
18a
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
18b
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
18c
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
19
Piston (C36)
414888304
Unavailable
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
