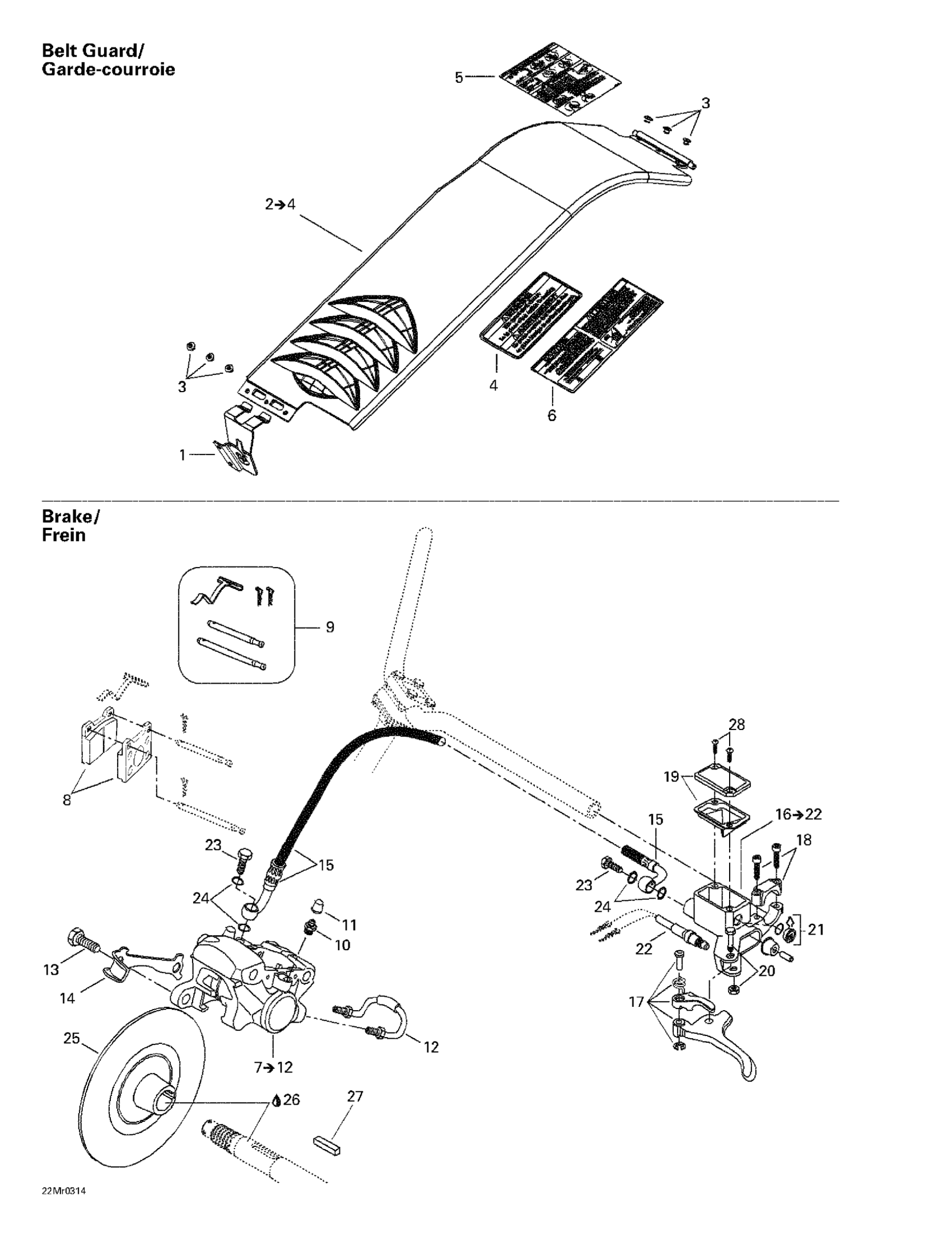

Ski-Doo Summit 600 HO/700/800 HO, 2003 06- Hydraulic Brake And Belt Guard Diagram

Bracket

417300001

Unavailable

Belt Guard Ass’Y | Includes Items 2 to 4

417300173

Unavailable

Pop Rivet 3/16"

390402200

$0.35

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

Decal, Suspension Adjustment

516001639

Unavailable

Instruction Label | Canada / U.S.A.

516001232

Unavailable

Caliper | EUROPE / INCLUDES ITEMS 1 TO 6

507032351

Unavailable

Caliper | X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.

507032350

Unavailable

Brake Pad Kit

415084600

$79.49

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

HOSE - Call your local BRP dealership

507032237

Unavailable

Braided Brake Hose

507032329

Unavailable

Master cylinder | Includes 16 - 22. ADRENALINE. HIGHMARK Summit 700. Summit 800 HO.

507032340

Unavailable

Master cylinder | X Summit 700. HIGHMARK X. HIGHMARK X EXTREME Summit 800 HO.

507032357

Unavailable

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

Clamp And Screw Kit

507032477

$23.99

Cap

415029900

$41.49

Pin Ass'y

415030000

$19.99

WINDOW - Call your local BRP dealership

414990600

Unavailable

Microswitch

507032366

$98.99

Banjo Bolt

414920500

$8.68

Washer

414920600

$1.90

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

Brake Disk | X & Renegade X

507032301

Unavailable

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

KEY - Call your local BRP dealership

507021300

Unavailable

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
