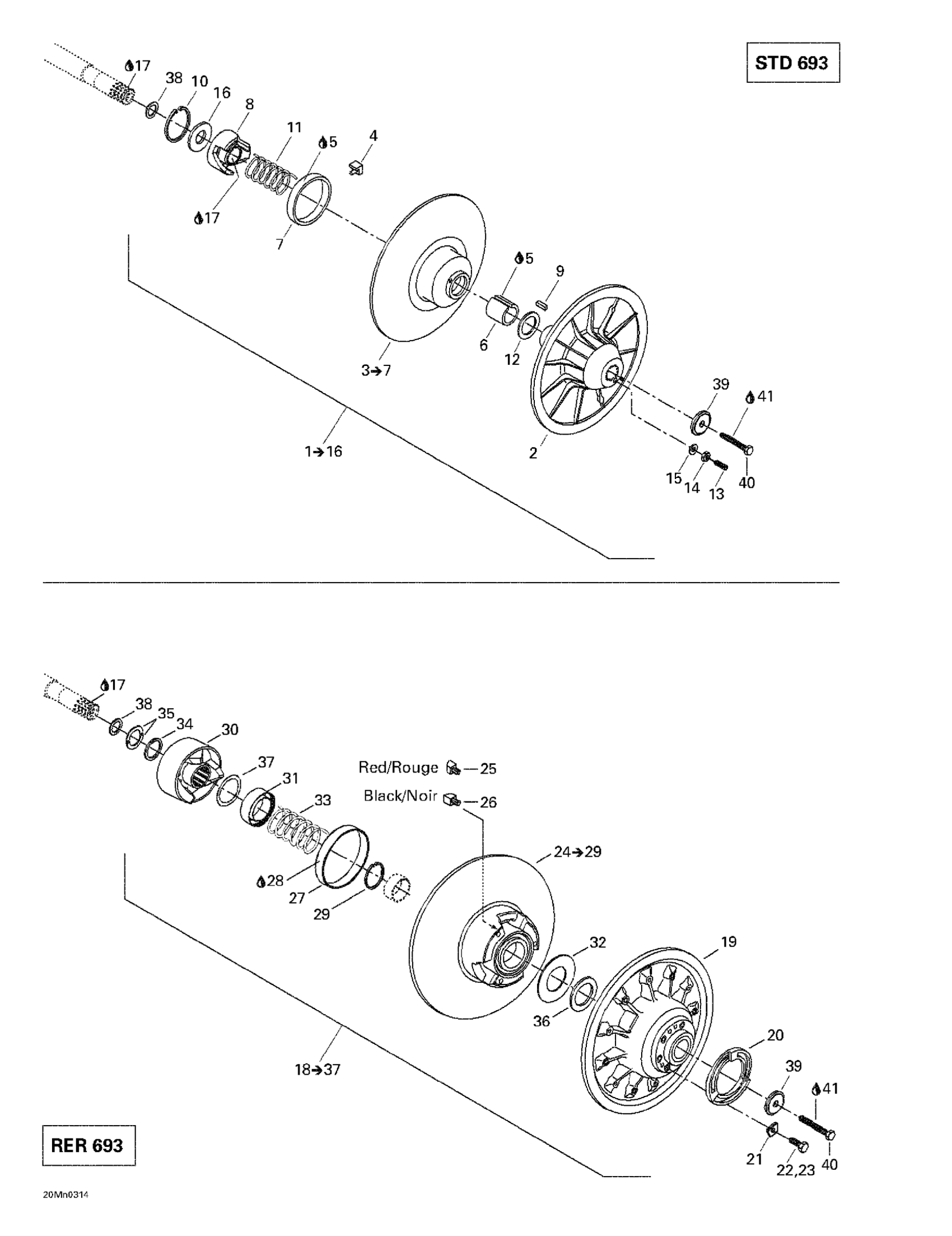

Ski-Doo Summit 600 HO/700/800 HO, 2003 05- Driven Pulley (693) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417126663

Unavailable

3

Sliding Flange Ass’Y | Includes 3 - 7.

417126486

Unavailable

4

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

5

Loctite 609, 10 ml

413703100

$26.99

6

BUSHING - Call your local BRP dealership

415011200

Unavailable

7

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

8

Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.

417126337

Unavailable

9

Key

414820800

Unavailable

10

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

11

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

12

Thrust Washer

504141900

Unavailable

13

Socket Set Screw M6 X 30

206263044

Unavailable

14

Hex. Nut M6

232061414

$0.53

15

WASHER - Call your local BRP dealership

420245370

Unavailable

16

Washer

504141800

Unavailable

17

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

18

Driven pulley ass'y | Includes 18 - 37. RER 700 ADRENALINE. RER 700 X. RER 700 HIGHMARK Summit 700.

417126556

Unavailable

19

Fixed Flange Ass’Y | INCLUDES ITEMS 39 TO 42

417126527

Unavailable

20

Adjustment Ring

415005800

Unavailable

21

Adjustment Shim

415005900

Unavailable

22

Hex. Screw M6 X 25

207162544

$1.15

23

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

24

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

25

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

26

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

27

BUSHING - Call your local BRP dealership

417126902

Unavailable

28

Loctite 609, 10 ml

413703100

$26.99

29

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

30

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

31

GUARD - Call your local BRP dealership

417126381

Unavailable

32

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

33

Release Spring, Purple | North America

414978300

$33.99

34

Spacer

417126375

Unavailable

35

HALF KEY - Call your local BRP dealership

371911000

Unavailable

36

SHIM - Call your local BRP dealership

504112300

Unavailable

37

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

38

Spacer

504149100

$12.99

39

Strength Washer

517302322

$12.63

40

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

41

Loctite 243, 10 ml

293800060

$21.49
