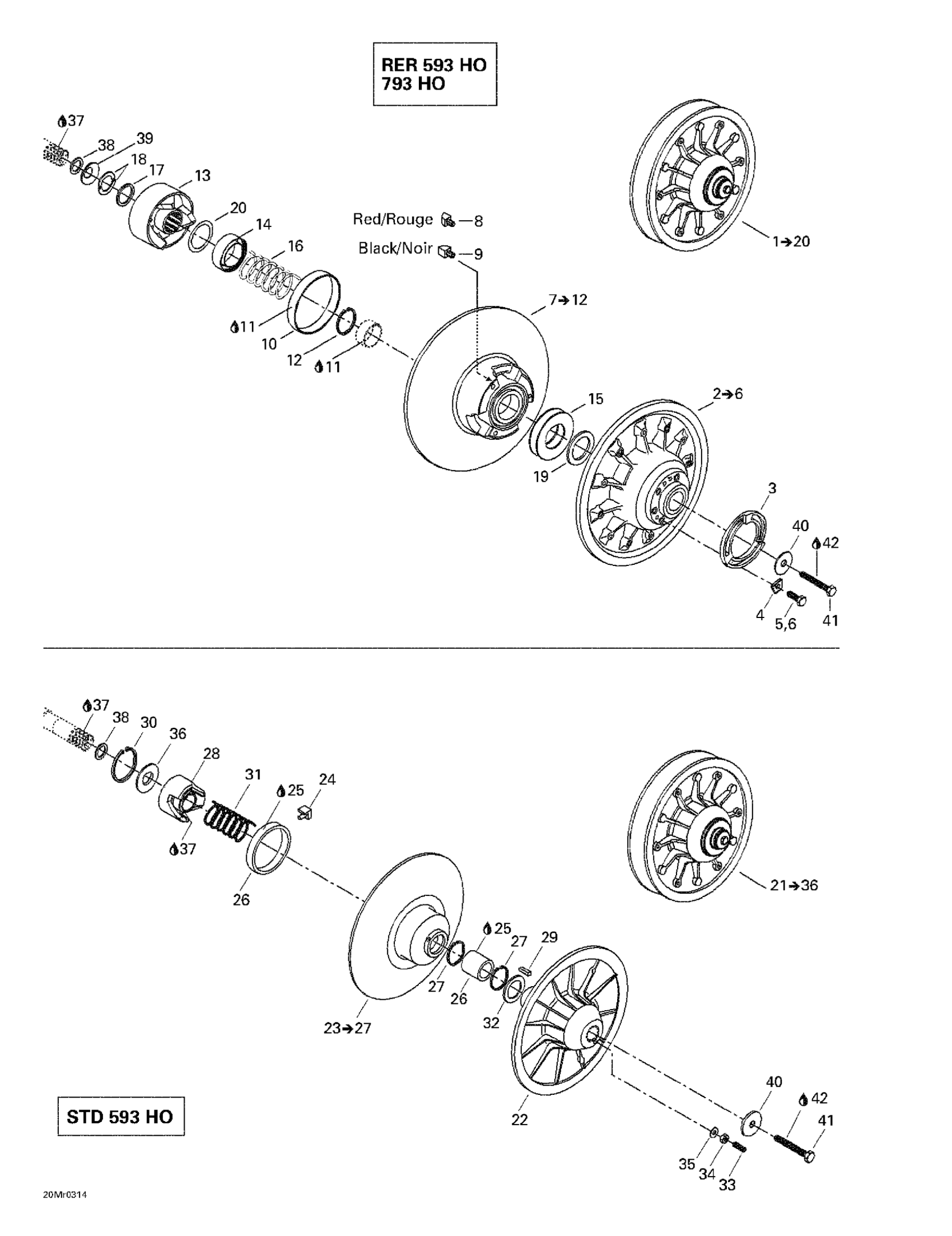

Ski-Doo Summit 600 HO/700/800 HO, 2003 05- Driven Pulley (593 HO, 793 HO) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y | Includes 40 to 44

417126603

Unavailable

3

Adjustment Ring

415005800

Unavailable

4

Adjustment Shim

415005900

Unavailable

5

Hex. Screw M6 X 25

207162544

$1.15

6

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

7

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

8

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

9

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

10

BUSHING - Call your local BRP dealership

417126902

Unavailable

11

Loctite 609, 10 ml

413703100

$26.99

12

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

13

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

Cam ass'y | RER 600 HO ADRENALINE Summit 600 HO.

417126559

Unavailable

Cam Ass'y

417126385

Unavailable

14

GUARD - Call your local BRP dealership

417126381

Unavailable

15

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

16

SPRING, BLACK - Call your local BRP dealership

417126687

Unavailable

17

Spacer

417126375

Unavailable

18

HALF KEY - Call your local BRP dealership

371911000

Unavailable

19

SHIM - Call your local BRP dealership

504112300

Unavailable

20

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

21

Driven pulley ass'y | Includes 21 - 36. STD 600 HO ADRENALINE Summit 600 HO.

417126706

Unavailable

22

Fixed Flange

417126499

Unavailable

23

Sliding Flange Ass’Y | Includes items 36 to 41

417126501

Unavailable

24

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

25

Loctite 609, 10 ml

413703100

$26.99

26

Cushion

417126514

Unavailable

27

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

28

Came

417126704

Unavailable

29

Key

414820800

Unavailable

30

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

31

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

32

Thrust Washer

504141900

Unavailable

33

Socket Set Screw M6 X 30

206263044

Unavailable

34

Hex. Nut M6

232061414

$0.53

35

WASHER - Call your local BRP dealership

420245370

Unavailable

36

Washer

417126555

Unavailable

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Spacer

417300265

$2.29

Spacer

504149100

$12.99

39

Protector

417300055

Unavailable

40

Strength Washer

517302322

$12.63

41

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

42

Loctite 243, 10 ml

293800060

$21.49
