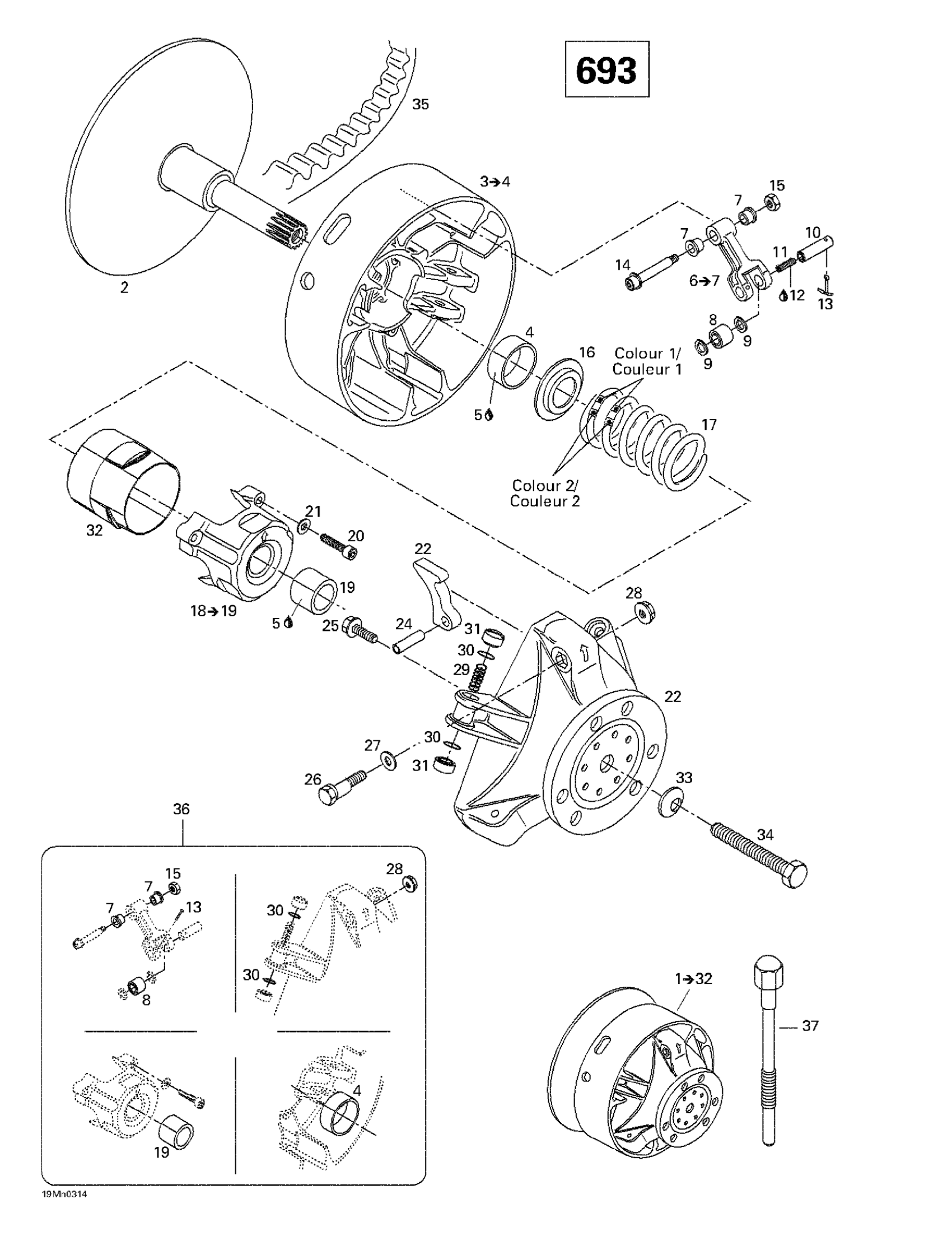

Ski-Doo Summit 600 HO/700/800 HO, 2003 Drive Pulley (693) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange

417222411

$226.12

3

SLIDING FLANGE ASSY - Call your local BRP dealership | Includes 2 to 4

417222241

Unavailable

4

Bushing

417004201

$23.82

5

Loctite 609, 10 ml

413703100

$24.58

6

LEVER ASSY - Call your local BRP dealership | Includes 5 to 6

417222383

Unavailable

7

Bushing

417004305

$4.62

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Threaded Pin

417222477

$24.58

11

Socket Set Screw M6 X 20

206262099

$3.00

12

Loctite 243, 10 ml

293800060

$20.77

13

Cotter Pin

250400060

$1.60

14

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

15

Elastic Stop Nut M6

232561414

$1.55

16

Spring Seat

417222044

Unavailable

17

Spring, Violet/yellow This part replaces 415128608.

415015300

$14.75

18

Spring Cover Ass‘Y | Includes 17 to 18

417222304

Unavailable

19

Bushing

417004501

Unavailable

20

Socket Head Screw M6 X 40

250000038

$6.52

21

WASHER - Call your local BRP dealership

420245370

Unavailable

22

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

23

RAMP 299 - Call your local BRP dealership

417222372

Unavailable

Ramp 300 | RER 700 ADRENALINE MANUEL. RER 700 ADRENALINE ELECTRIC. STD 700 ADRENALINE MX Z 700.

417222381

Unavailable

24

Pin M8 X 24

732804009

Unavailable

25

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$3.86

28

Hex. Flange Nut M6

233061414

$1.34

29

Spring

417005700

$4.65

30

O-Ring

732401030

$0.95

31

Slider Shoe This part replaces 420460045.

417223021

$6.09

32

Guard

417222176

Unavailable

33

Spring Washer 14 mm

250200006

$5.80

34

Drive Pulley Bolt

417120000

$63.82

35

Drive Belt

417300585

$154.58

36

Clutch Repair Kit

417006100

$175.35

37

Puller This part replaces 529022400.

529000064

$73.99
