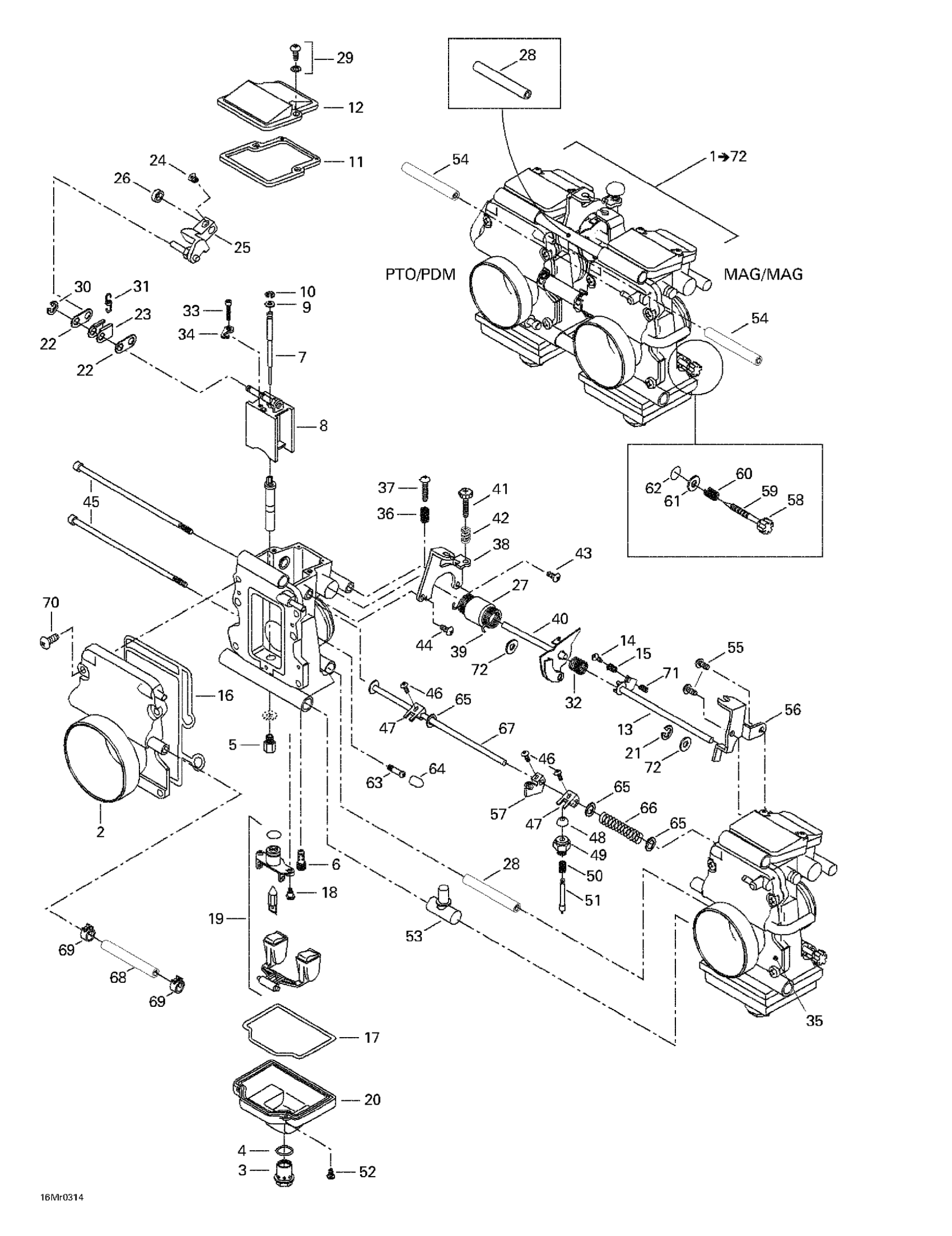

Ski-Doo Summit 600 HO/700/800 HO, 2003 Carburetors Diagram

#

Description
Price

1

Carburetor kit | 600 HO Summit 600 HO.

403138734

Unavailable

Carburetor kit | 700 Summit 700.

403138735

Unavailable

Carburetor kit | 800 HO Summit 800 HO.

403138736

Unavailable

2

Funnel, PTO

404162017

Unavailable

Funnel, PTO

404162018

Unavailable

3

DRAIN SCREW - Call your local BRP dealership

404161955

Unavailable

4

O-Ring

404161945

$8.14

5

Main Jet 380

404106300

$5.19

Main Jet 500 | 600

404108200

$5.19

MAIN JET 430 - Call your local BRP dealership | Summit 800 HO.

404108000

Unavailable

6

Pilot Jet 17.5

404161944

$5.19

7

NEEDLE J8-9DHI 12-58 - Call your local BRP dealership | Summit 600 HO. Summit 800 HO.

404162016

Unavailable

Needle J8-9ZLY 07-58 | Summit 700.

404162026

Unavailable

8

Valve Piston 2.0

404162020

$199.97

Piston Valve 2.0

404162005

Unavailable

9

Packing

404137600

$6.49

10

E-Ring

404152200

$4.29

11

Gasket

404161940

$25.99

12

COVER - Call your local BRP dealership

404161939

$38.43

13

Throttle Shaft

404162006

$214.99

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

O-Ring

404161935

$25.99

17

O-Ring

404161961

$16.89

18

Screw

404161933

$10.99

19

Float

404161932

$124.99

20

BODY FLOAT ASS'Y - Call your local BRP dealership

404161960

Unavailable

21

E-Ring

707200027

$5.29

22

Plate

404162007

$16.12

23

Holder

404162008

$16.12

24

Screw

404161928

$12.22

25

Lever

404162009

$103.82

26

Ring

404161926

$12.22

27

Ring

404161925

Unavailable

28

RING - Call your local BRP dealership

404161924

Unavailable

29

Screw

404161923

$7.39

30

E-Ring

404138300

$11.49

31

Spring

404162010

$16.12

32

Spring

404162011

$12.22

33

Screw

404161920

$12.22

34

Plate

404161919

$12.22

35

Funnel, Mag | MX Z 600.

404162024

Unavailable

Funnel, Mag

404162012

Unavailable

36

Spring

404161918

Unavailable

37

Screw

404161917

Unavailable

38

Bracket Tm 40-98, PTO

404162013

Unavailable

39

Spring

404162014

$32.99

40

Throttle Shaft

404162015

$214.99

41

Adjustment Screw

404137500

$18.43

42

Spring

404161913

$12.22

43

Screw

404161912

$6.49

44

Screw

404136100

$6.49

45

Screw

404161911

Unavailable

46

Screw

404161910

$12.22

47

Lever

404161909

Unavailable

48

Cap

404140000

$11.49

49

Guide Holder

404136900

$16.49

50

Spring

404161908

$12.99

51

Plunger Ass'y

404161907

$32.99

52

Screw

404161906

$6.49

53

Nipple

404161905

$48.99

54

HOSE - Call your local BRP dealership

404161904

Unavailable

55

Screw

404161903

$3.19

56

Bracket, Mag

404161902

Unavailable

57

Starter Lever

404161901

$36.89

58

Cap

404161899

$11.86

59

Adjuster

404161898

$24.99

60

Spring

404161897

$6.09

61

Washer

404161896

$6.19

62

Packing

404161895

$8.14

63

Nipple

404153400

$11.51

64

CAP - Call your local BRP dealership

404154900

Unavailable

65

Packing

404161894

$12.22

66

Spring

404103500

$8.25

67

SHAFT - Call your local BRP dealership

404161981

Unavailable

68

Hose | Grand Touring 500.

404161956

$18.43

69

Clip | Grand Touring 500.

404161957

$16.12

70

Screw

404138800

$6.19

71

Not Available As Spare Part - Friction Washer

Unavailable

72

Packing

270500118

$8.63
