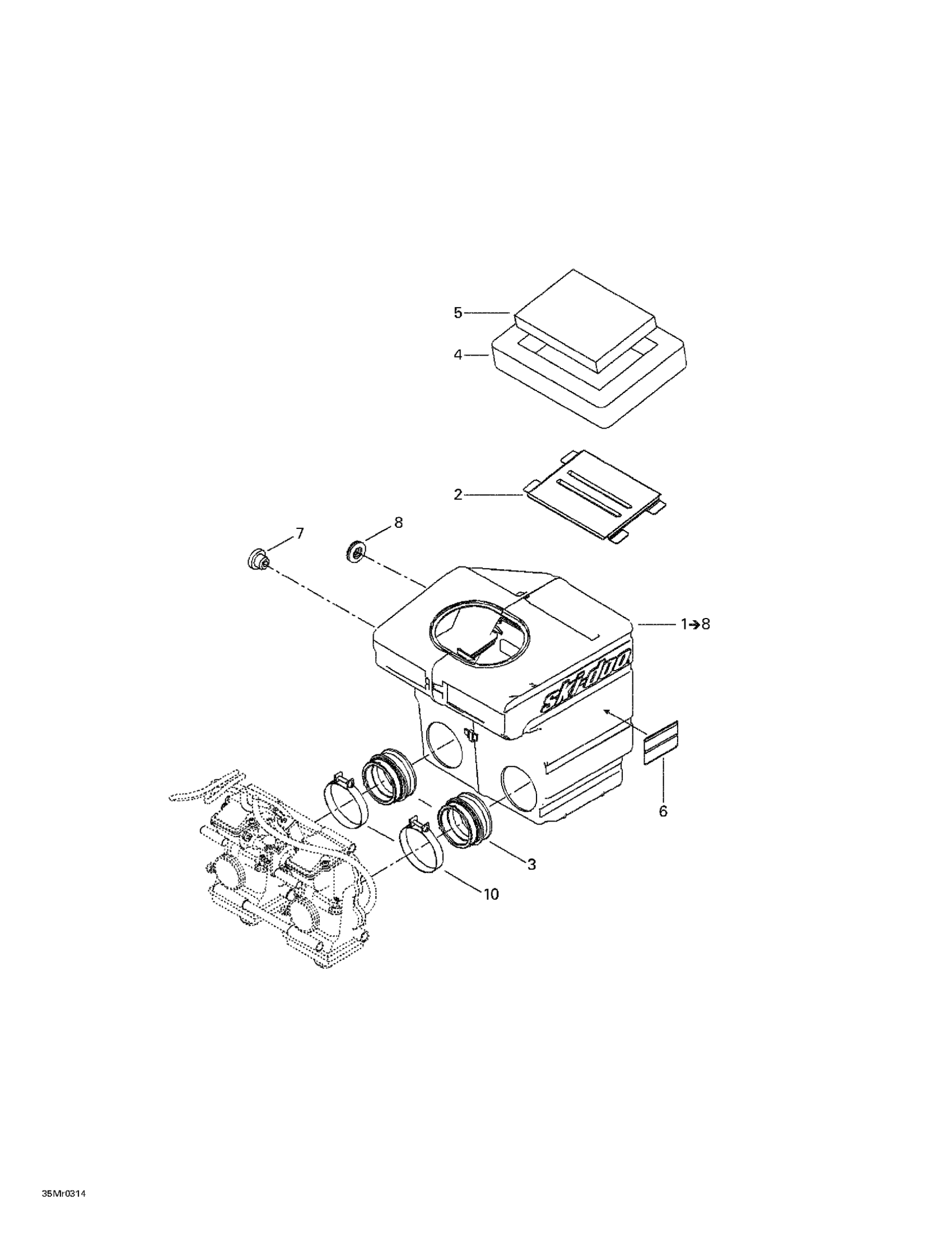

Ski-Doo Summit 600 HO/700/800 HO, 2003 Air Intake System Diagram

#

Description
Price

1

Air Intake Ass’Y | DPM 600 HO MX Z 600.

508000284

Unavailable

Air Intake Ass’Y | DPM 700 Grand Touring 700.

508000293

Unavailable

Air intake ass'y | DPM 800 HO Summit 800 HO.

508000298

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Grommet

513032908

$10.49

8

GROMMET - Call your local BRP dealership

570065500

Unavailable

9

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

$43.99

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

10

Gemi Clamp

508000346

$10.33
