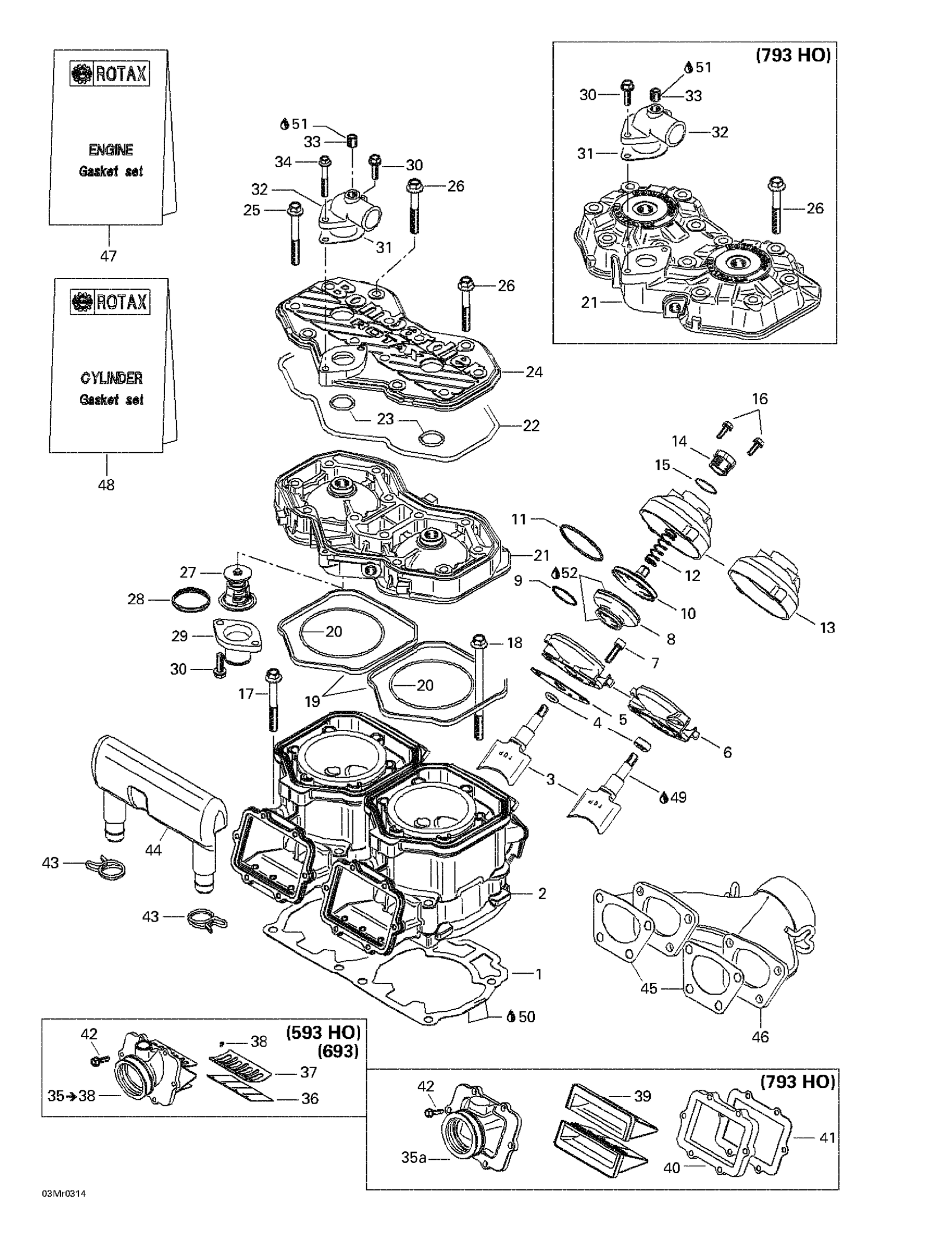

Ski-Doo Summit 600 HO/700/800 HO, 2003 Cylinder, Exhaust Manifold, Reed Valve Diagram

#

Description
Price

1

Double Gasket 0.8 mm

420431163

$22.36

GASKET 0.8 - Call your local BRP dealership

420931839

Unavailable

Gasket 0.7 mm

420431162

$22.36

GASKET 0.7 - Call your local BRP dealership

420931964

Unavailable

Gasket 0.6 mm

420431161

$22.36

GASKET 0.6 - Call your local BRP dealership

420931837

Unavailable

Gasket 0.5 mm

420431160

$16.39

GASKET 0.5 - Call your local BRP dealership

420931838

Unavailable

2

NICASIL CYLINDER - Call your local BRP dealership

420613710

Unavailable

Cylinder With Sleeve, Nicasil

420923695

Unavailable

NICASIL CYLINDER - Call your local BRP dealership

420613852

Unavailable

REBUILD-CYLINDER NICASIL 793 HO - Call your local BRP dealership

421000604

Unavailable

3

Exhaust Valve

420854650

$64.90

EXHAUST VALVE - Call your local BRP dealership

420854332

Unavailable

EXHAUST VALVE - Call your local BRP dealership

420854465

Unavailable

4

O-Ring

420430110

$4.15

Oil Seal | Included in gasket kit

420950732

$8.09

5

Gasket

420250239

$6.42

Gasket

420931542

$6.42

6

Valve Housing

420854266

$91.01

Valve Housing

420854455

$75.99

7

Socket Head Screw M6 X 20

205062044

$1.22

Socket Head Screw M6 X 25

205062544

$1.01

8

Exhaust Bellows

420260723

$40.27

Bellows

420260729

$36.54

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

Spring This part replaces 420239944.

420239954

$7.09

SPRING - Call your local BRP dealership

420239942

Unavailable

13

Valve Cover

420911552

$36.54

Valve Cover This part replaces 420911558.

420911559

$27.58

14

Adjuster Screw

420241221

$12.15

15

O-Ring

420430220

$7.79

16

Hex. Tapping Screw M5 X 20

420841555

$1.63

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$1.99

17

Hex. Collar Screw

420640524

$11.18

18

Hex. Collar Screw

420640534

$13.18

19

Rubber Ring

420931590

$5.52

20

O-Ring This part replaces 420850540.

293300026

$3.06

O-RING - Call your local BRP dealership

420931840

$11.75

O-Ring | Included in gasket kit

420931410

$3.06

21

CYLINDER HEAD, SILVER - Call your local BRP dealership

420613700

Unavailable

Cylinder Head, Silver

420613840

Unavailable

Cylinder Head Cover, Silver

420613920

Unavailable

22

O-Ring This part replaces 290950320.

420950320

$13.18

23

O-Ring

420430782

$5.06

24

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

26

Hex. Screw M8 X 56.5

420941627

$8.09

27

Thermostat This part replaces 414834100.

420922519

$57.43

28

Sealing Ring

420931272

$14.90

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

31

Gasket

420850338

$9.97

32

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

33

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

34

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

35a

Reed valve ass'y | Summit 800 HO.

420667102

Unavailable

35

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$241.01

35

Carburetor Socket | MX Z 600.

420867874

$238.03

36

Reed Pedal

420924680

$36.54

37

Reed Pedal Stop

420924695

$13.18

38

Phillips Screw M3 X 5

420941215

$1.63

39

Reed Valve Ass'y

420924798

$38.03

40

DISTANCE FLANGE - Call your local BRP dealership

420924820

Unavailable

41

Gasket

420630815

$13.18

42

Taptite Screw M5 X 16

420941928

Unavailable

TAPTITE SCREW M5 X 35 - Call your local BRP dealership

420641840

Unavailable

43

CLAMP - Call your local BRP dealership

420851440

Unavailable

44

Intake Resonator

420867817

Unavailable

45

Gasket

420850552

$7.69

Gasket

420931850

$11.43

46

Exhaust Manifold | 700

420973593

Unavailable

Exhaust Manifold | MX Z 800.

420973714

Unavailable

47

Gasket Set, Engine

420889931

$238.03

Engine Gasket Set

420888604

Unavailable

Gasket Engine Kit

420888741

$268.63

48

Gasket Set, Cylinder

420889936

$165.64

Cylinder Gasket Set

420888608

Unavailable

CYLINDER GASKET - Call your local BRP dealership

420888745

Unavailable

49

Molykote G-N, 50 g

420297433

$26.09

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

51

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

52

Dow Corning 111, 150 g

413707000

$59.99
