2005 Ski-Doo Summit 600 HO Bottom PAN Diagram

← All diagrams

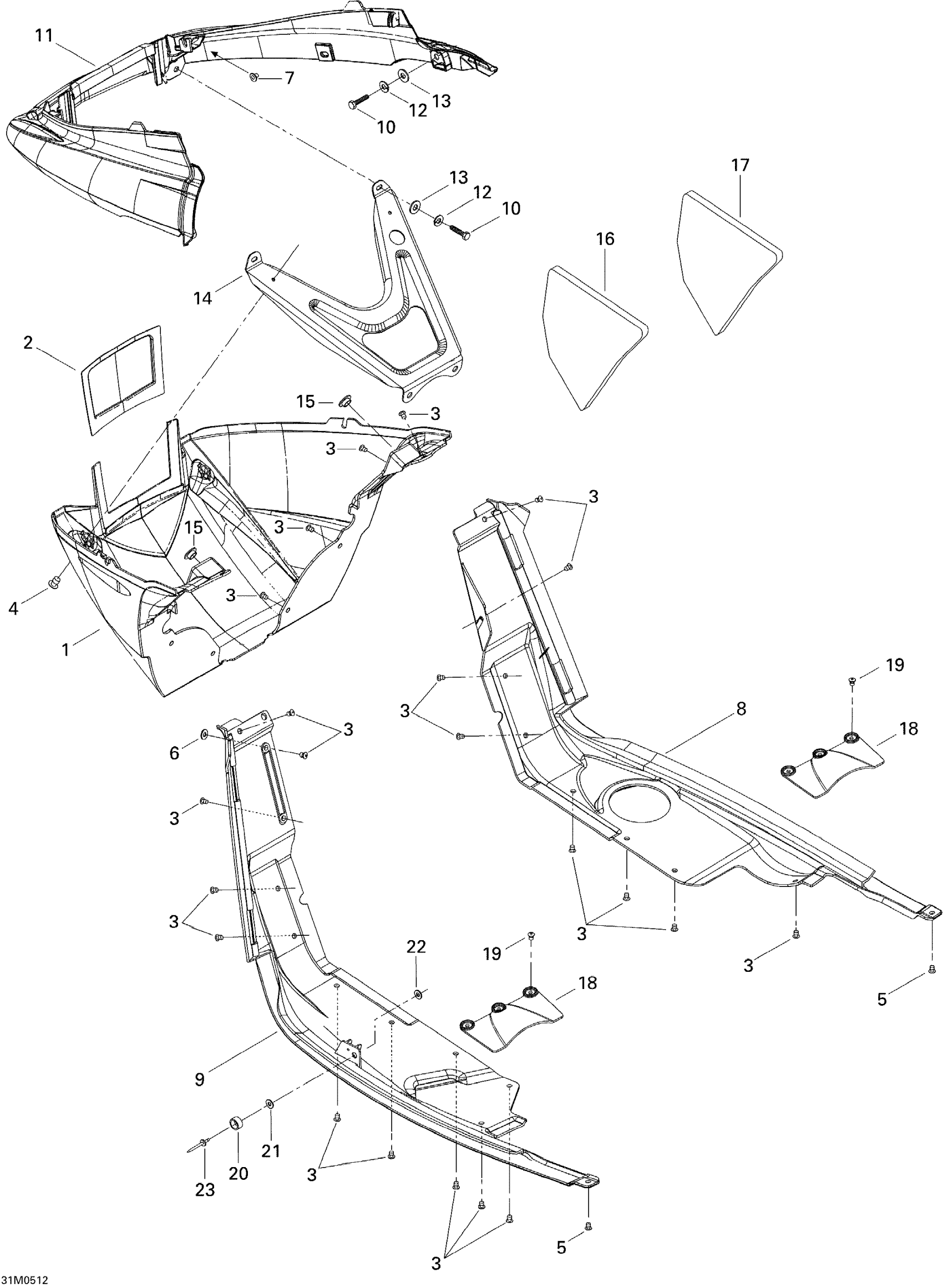

Find the part on the Bottom PAN diagram for your 2005 Ski-Doo Summit 600 HO, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Ski-Doo Summit 600 HO Bottom PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BOTTOM PAN, BLACK - Call your local BRP dealership

502006681

—
Out of stock

2

BOTTOM PAN GRILL - Call your local BRP dealership

502006687

—
Out of stock

3

Pop Rivet 3/16" | DS 650 X

293150104

26
Out of stock

4

Pop Rivet 3/16”

293150108

2
Out of stock

5

Pop Rivet 3/16"

293150103

2
Out of stock

6

Washer

517124300

1
Out of stock

7

Nut Welded, M6

293100003

2
Out of stock

8

RH BOTTOM PAN - Call your local BRP dealership

502006702

—
Out of stock

9

LH BOTTOM PAN - Call your local BRP dealership

502006703

—
Out of stock

10

Hex. Screw M6 X 14

207161444

4
Out of stock

11

Bumper, Black

502006679

1
Out of stock

11

Bumper, Black

502006679

1
Out of stock

12

4

$0.52

In stock

13

Flat Washer

224061121

4
Out of stock

14

Support

502006772

1
Out of stock

15

Black, Nylon Cap

414916600

2
Out of stock

16

LH FOAM - Call your local BRP dealership

502006722

—
Out of stock

17

RH FOAM - Call your local BRP dealership

502006721

—
Out of stock

18

TRAP - Call your local BRP dealership

502006720

—
Out of stock

19

Pop Rivet 3/16"

293150103

6
Out of stock

20

Rubber Stopper

415018100

1
Out of stock

21

Rubber Washer 5 mm

250200024

1
Out of stock

22

WASHER - Call your local BRP dealership

293150007

—
Out of stock

23

Pop Rivet 1/8" | SM5

390401600

1
Out of stock
