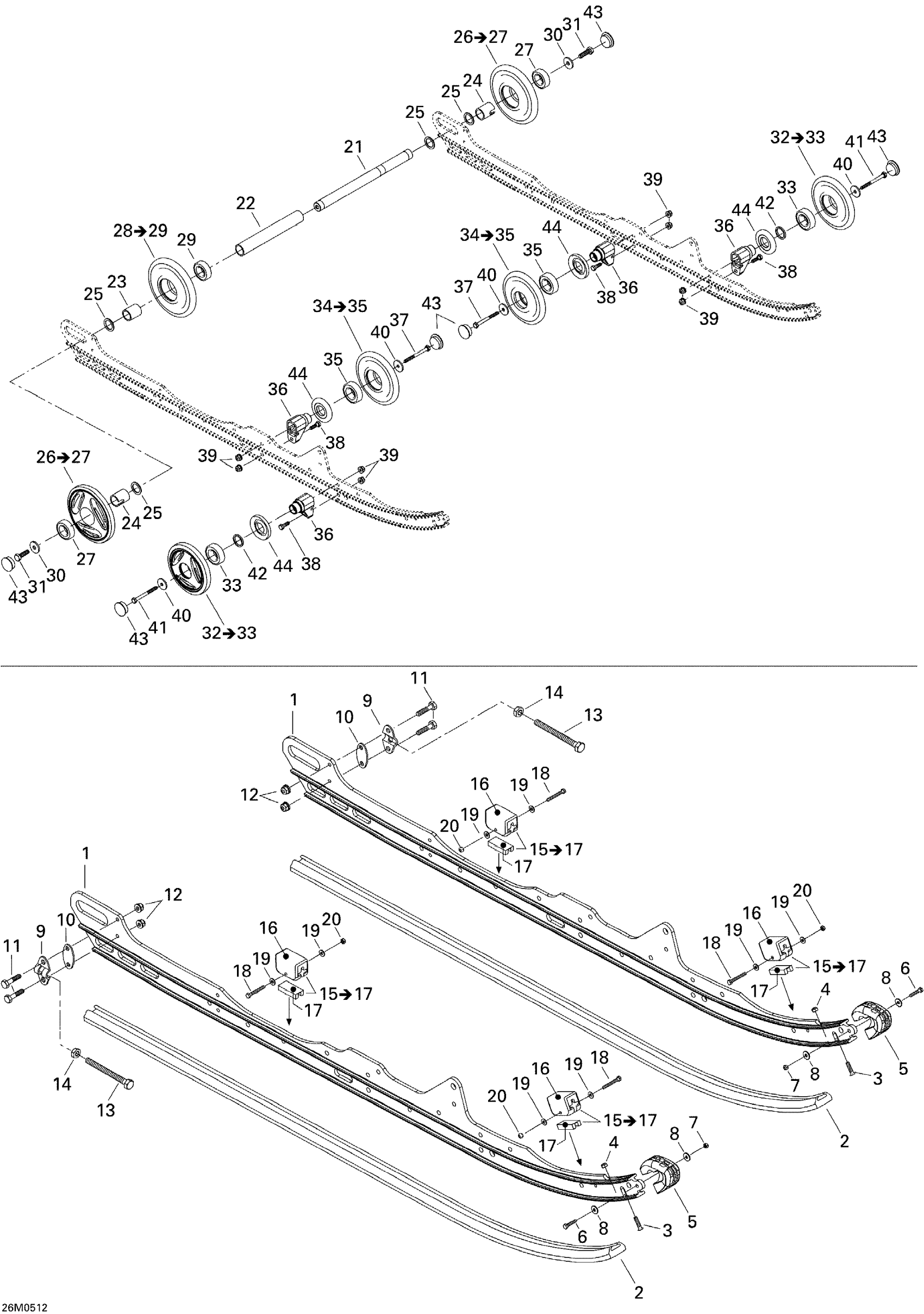

Ski-Doo Summit 600 HO, 2005 08- Rear Suspension 600HO Diagram

#

Description
Price

1

Runner 151" | X & Adrenaline

503190347

Unavailable

1

Runner 144" | X & Adrenaline

503190402

Unavailable

2

Rail 151", Black

503190368

Unavailable

2

Slide Shoe

605355362

$29.49

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$1.26

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

16

Rubber Stopper

570063000

Unavailable

17

Reinforcement Stopper

572084800

$12.99

18

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Elastic Stop Nut M5

232551414

$0.87

21

Rear Axle

503167900

$139.99

22

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

23

Inner Spacer

503182900

$12.58

24

Outer Spacer

503189809

$18.89

25

Washer

503180400

$3.49

26

Wheel 180 Ass'y, Yellow | Includes 35 to 36

503190800

$51.99

27

Ball Bearing

293350115

$12.11

28

Wheel 180

503190799

$51.99

29

Ball Bearing

293350115

$12.11

30

Washer

503183300

$5.82

31

Hex. Screw With Nylon

250000019

$1.69

32

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

33

Ball Bearing

293350115

$12.11

34

Wheel 139 mm Ass'y

503190798

$33.99

35

Ball Bearing

293350115

$12.11

36

SUPPORT - Call your local BRP dealership

503190389

Unavailable

37

Hex. Screw M8 X 80

207088044

$1.68

38

Hex. Screw M8 X 25

207182544

$0.90

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Washer

503183100

$3.17

41

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

42

WASHER - Call your local BRP dealership

503173700

Unavailable

43

Wheel Cap

570063600

$3.49

44

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
