2004 Ski-Doo Summit 600 HO Windshield AND Console Diagram

← All diagrams

Find the part on the Windshield AND Console diagram for your 2004 Ski-Doo Summit 600 HO, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

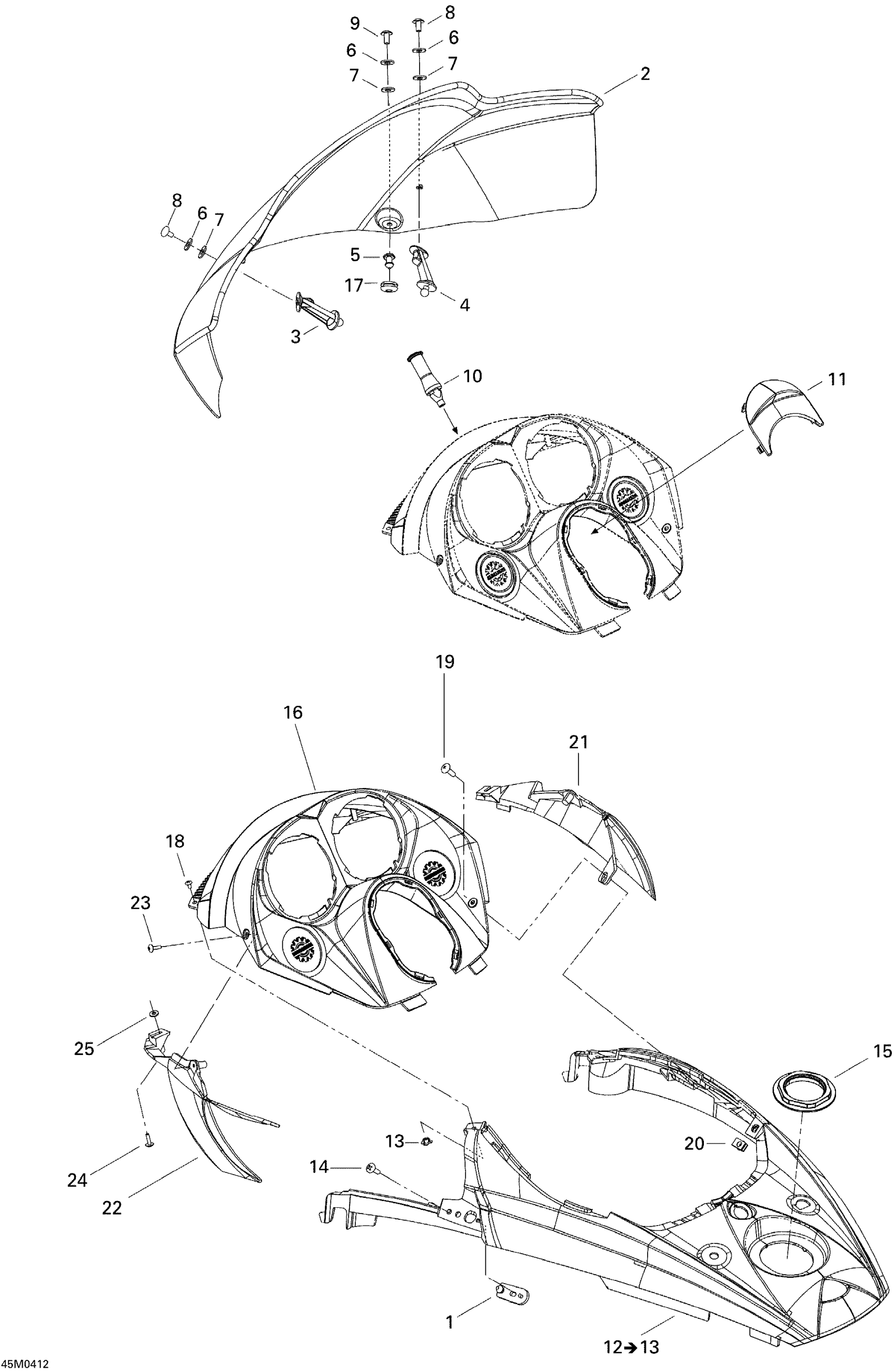

2004 Ski-Doo Summit 600 HO Windshield AND Console Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOOD LATCH - Call your local BRP dealership

517302616

—
Out of stock

2

MEDIUM WINDSHIELD - Call your local BRP dealership

517303174

—
Out of stock

MEDIUM WINDSHIELD - Call your local BRP dealership

517303174

—
Out of stock

MEDIUM WINDSHIELD - Call your local BRP dealership

517303174

—
Out of stock

3

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303214

—
Out of stock

4

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303215

—
Out of stock

5

Knob

517303439

3
Out of stock

6

Washer M5

250200025

5
Out of stock

7

Rubber Washer 5 mm

250200024

5
Out of stock

8

2

$1.39

In stock

9

Torx Screw M5 X 14

250000742

3
Out of stock

10

WINDSHIELD SUPPORT - Call your local BRP dealership

517303197

—
Out of stock

11

CONSOLE CAP - Call your local BRP dealership

517302592

—
Out of stock

12

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 10 to 11, (Black/Yellow)

517302795

—
Out of stock

CENTER CONSOLE - Call your local BRP dealership

517302797

—
Out of stock

CENTER CONSOLE - Call your local BRP dealership | Includes 13 to 14, X, Black-Black Model

517303072

—
Out of stock

Center Console | Includes 11 to 12 / X, Cab Yellow B-190

517303073

—
Out of stock

13

T-NUT, M4 - Call your local BRP dealership

250100030

—
Out of stock

14

Torx Screw M6 X 20

250000722

2
Out of stock

15

CONSOLE NUT - Call your local BRP dealership

517302575

—
Out of stock

16

Support

517303198

—
Out of stock

17

Grommet

517302841

5
Out of stock

18

Torx Screw M4 X 8

250000127

2
Out of stock

19

Torx Screw M5 X 20

250000724

2
Out of stock

20

Panel Nut M5 X 0.8

250000958

2
Out of stock

21

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

—
Out of stock

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

—
Out of stock

RH Air Deflector

517302798

—
Out of stock

22

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

—
Out of stock

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

—
Out of stock

LH AIR DEFLECTOR - Call your local BRP dealership

517302799

—
Out of stock

23

Phillips Screw K40 X 16

250000723

2
Out of stock

24

Screw M4 X 16

250000725

2
Out of stock

25

Flat Washer 4 mm, Stainless

234042600

2
Out of stock
