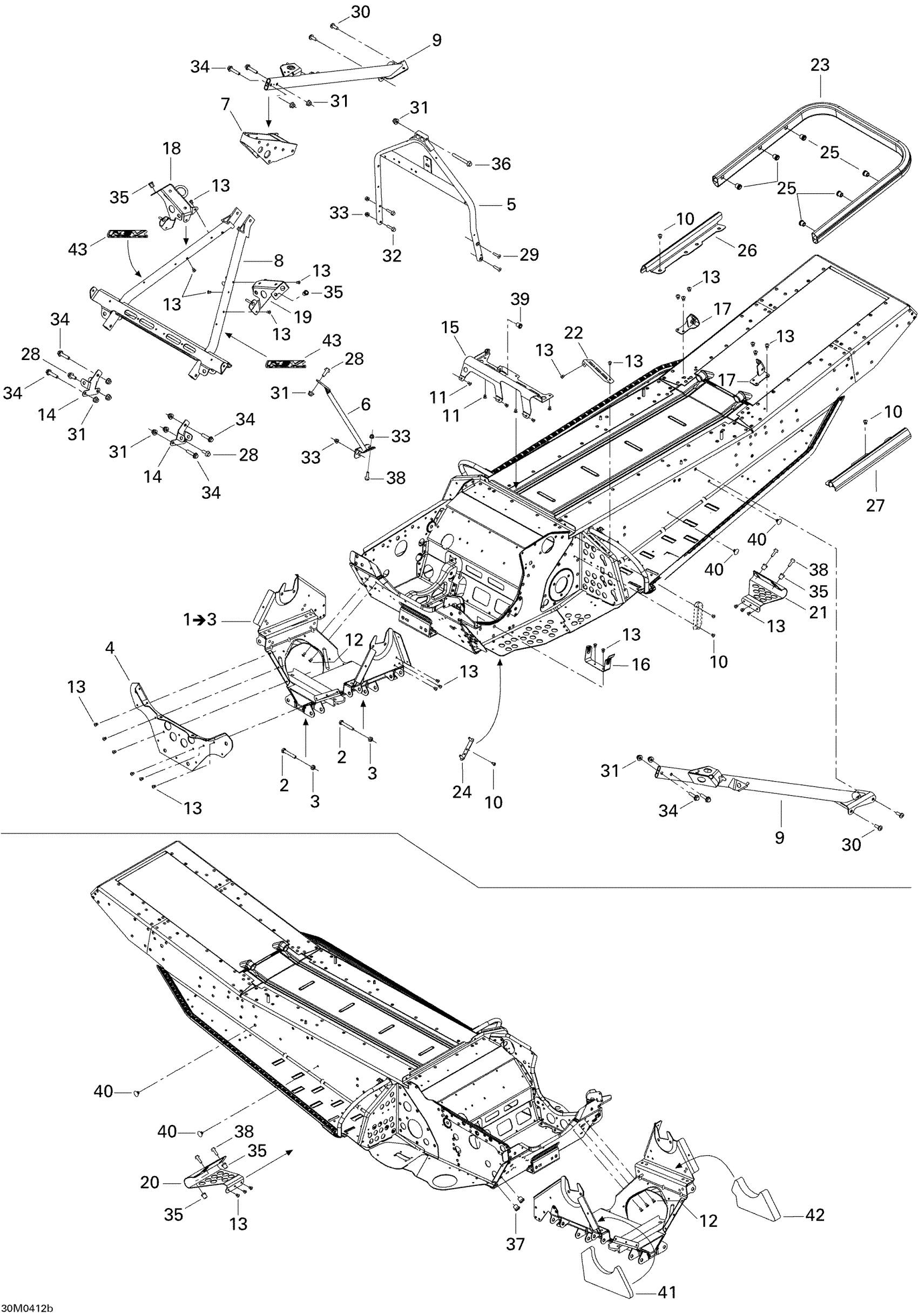

Ski-Doo Summit 600 HO, 2004 Frame 1 Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

Unavailable

2

Hex. Screw M8 X 50

207085044

Unavailable

3

Hex. Elastic Stop Nut M8

232581414

Unavailable

4

Front Plate

518322166

Unavailable

5

HANDLE SUPPORT - Call your local BRP dealership

518323979

Unavailable

6

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

7

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

8

Upper Cross Member

518324009

Unavailable

9

RH Member

518323352

Unavailable

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

10

Pop Rivet 3/16"

390402200

$0.26

11

Pop Rivet 3/16"

390402400

Unavailable

12

Avex Rivet

390909100

$0.29

13

Avex Rivet

390909200

Unavailable

14

RH SHOCK BRACKET - Call your local BRP dealership

518322461

$8.43

LH SHOCK BRACKET - Call your local BRP dealership

518322462

$8.43

15

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

16

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

17

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

18

RH Console Support

518323535

Unavailable

19

LH Console Support

518323536

Unavailable

20

RH Toe Hold

518323377

Unavailable

21

LH Toe Hold

518323378

Unavailable

22

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

23

Rear Bumper

518323778

Unavailable

REAR BUMPER, BLACK - Call your local BRP dealership | Europe

518324077

Unavailable

Rear Bumper

518323778

Unavailable

Rear Bumper

518323778

Unavailable

Rear Bumper | 151" Track

518323836

Unavailable

REAR BUMPER, BLACK - Call your local BRP dealership | Europe

518324077

Unavailable

24

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

25

Hex. Screw M8 X 20

236282084

Unavailable

26

RH Wire Protector | Adrenaline with Track 144"

518323901

Unavailable

RH Wire Protector 151" | X & Adrenaline 800HO & Europe

518323924

Unavailable

RH Wire Protector | Adrenaline with Track 144"

518323901

Unavailable

RH Wire Protector 151" | X & Adrenaline 800HO & Europe

518323924

Unavailable

RH Wire Protector 151" | X & Adrenaline 800HO & Europe

518323924

Unavailable

27

LH Wire Protector | Adrenaline with Track 144"

518323902

Unavailable

LH Wire Protector 151" | X & Adrenaline 800HO & Europe

518323925

Unavailable

LH Wire Protector | Adrenaline with Track 144"

518323902

Unavailable

LH Wire Protector 151" | X & Adrenaline 800HO & Europe

518323925

Unavailable

LH Wire Protector 151" | X & Adrenaline 800HO & Europe

518323925

Unavailable

28

Hex. Flange Screw M8 X 20

207682044

Unavailable

29

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

30

Pan Head Torx Screw M8 X 12

250000887

$1.56

31

Hex. Flange Elastic Nut M8

233281414

Unavailable

32

Hex. Flange Screw M6 X 25

207662544

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

34

Hex. Flange Screw M8 X 35

207683544

$1.39

35

Insert

293450275

Unavailable

36

Hex. Flange Screw M8 X 70

207687044

Unavailable

37

Insert

293450166

Unavailable

38

Hex. Flange Screw M6 X 20

207662044

Unavailable

39

Threaded Insert M6 X 1.0

250100242

Unavailable

40

Panel Fastener

518321954

Unavailable

41

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

42

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

43

Frame Decal

516001725

Unavailable

44

Hex. Screw M8 X 50

207085044

Unavailable

45

Hex. Elastic Stop Nut M8

232581414

Unavailable
