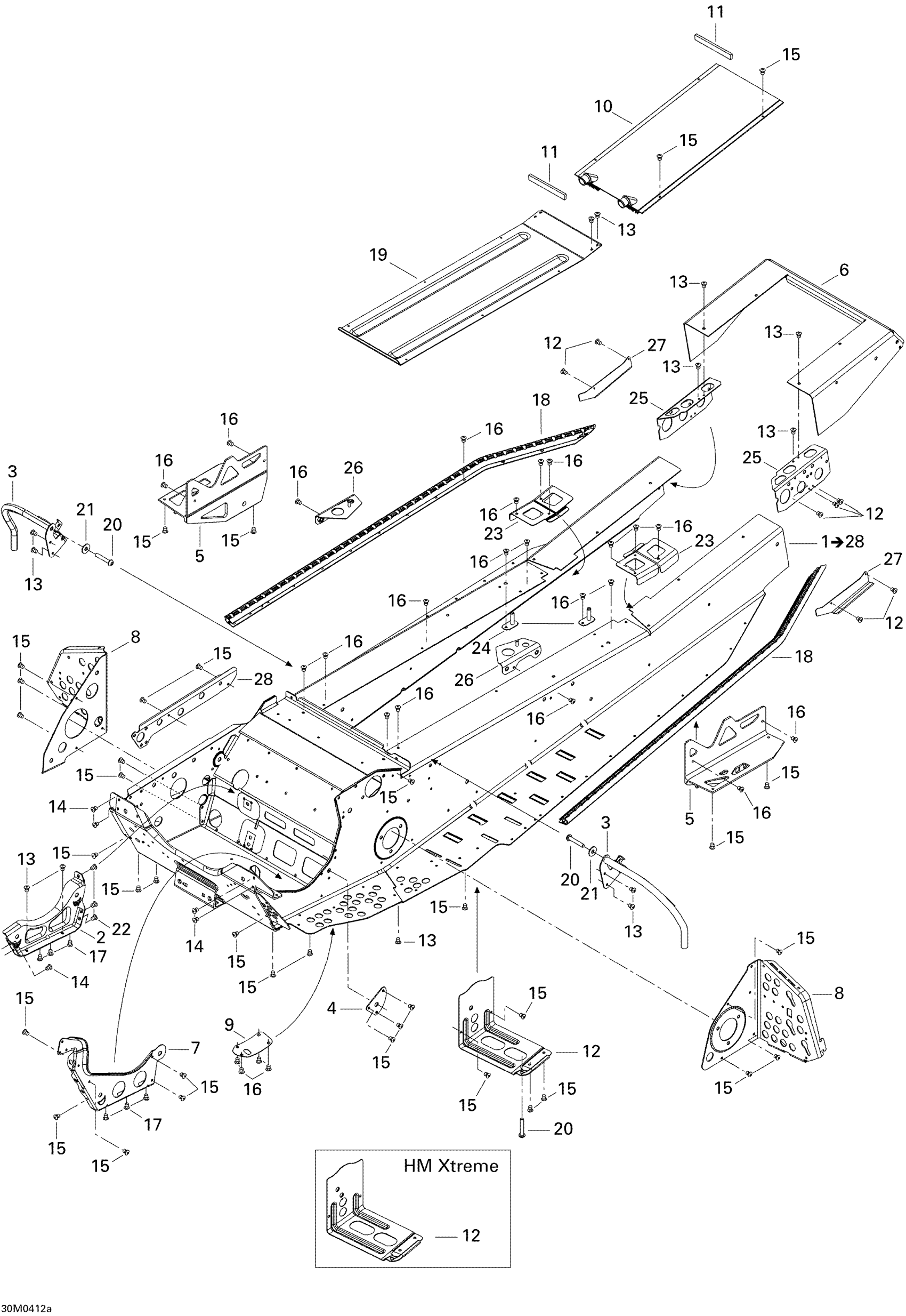

Ski-Doo Summit 600 HO, 2004 09- Frame 2 Diagram
#
1
Frame | Includes items 1 to 28 / Adrenaline & X
415128815
Unavailable
Frame | Includes items 1 to 28 / Sport, Highmark & Highmark X
415128816
Unavailable
Frame | Includes items 1 to 28 / HM Xtreme
415128817
Unavailable
2
ENGINE SUPPORT, BLACK - Call your local BRP dealership
518323346
Unavailable
3
RH TOE HOLD SUPPORT - Call your local BRP dealership
518324162
Unavailable
3
LH TOE HOLD SUPPORT - Call your local BRP dealership
518324163
Unavailable
4
OUTER REINFORCEMENT - Call your local BRP dealership
518323507
Unavailable
5
RH Suspension Bracket
518323722
Unavailable
RH Suspension Bracket | HM Xtreme
518324052
Unavailable
LH Suspension Bracket
518323723
Unavailable
LH Suspension Bracket | HM Xtreme
518324053
Unavailable
6
REAR CAP - Call your local BRP dealership | Adrenaline with Track 144"
518323803
Unavailable
Rear Cap | Adrenaline with Track 151"
518323728
Unavailable
Rear Cap | X
518323746
Unavailable
7
INNER REINFORCEMENT, BLACK - Call your local BRP dealership
518323241
Unavailable
8
RH Footrest Reinforcement
518323805
Unavailable
LH Footrest Reinforcement
518323765
Unavailable
9
PLATE - Call your local BRP dealership
518324169
Unavailable
10
Rear Radiator
518323720
Unavailable
Rear Radiator | Track 151"
518323730
Unavailable
Rear Radiator | Track 159"
518323806
Unavailable
12
RH Reinforcement, Black
518323761
Unavailable
RH Reinforcement, Black
518323757
Unavailable
RH Reinforcement, Black
518323762
Unavailable
LH Reinforcement, Black
518323758
Unavailable
17
HENROB RIVET - Call your local BRP dealership
390910300
Unavailable
18
RH Roller
518324083
Unavailable
LH Roller
518324084
Unavailable
19
Center Plate
518323804
Unavailable
20
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter
205982086
Unavailable
23
RH Frame Reinforcement
518323919
Unavailable
LH Frame Reinforcement
518323920
Unavailable
24
Tank Bracket
518322791
Unavailable
25
RH Frame Reinforcement
518324108
Unavailable
LH Frame Reinforcement
518323745
Unavailable
26
RH Frame Reinforcement, Black
518323336
Unavailable
LH Frame Reinforcement, Black
518323337
Unavailable
27
RH Corner, 144"
518324185
Unavailable
RH Corner, 151" | Track 151"
518324187
Unavailable
RH Corner, 159" | Track 159"
518324189
Unavailable
LH Corner, 144"
518324186
Unavailable
LH Corner, 151" | Track 151"
518324188
Unavailable
LH CORNER, 159 - Call your local BRP dealership | Track 159"
518324190
Unavailable
28
RH TUNNEL STIFFENER - Call your local BRP dealership
518323328
Unavailable
