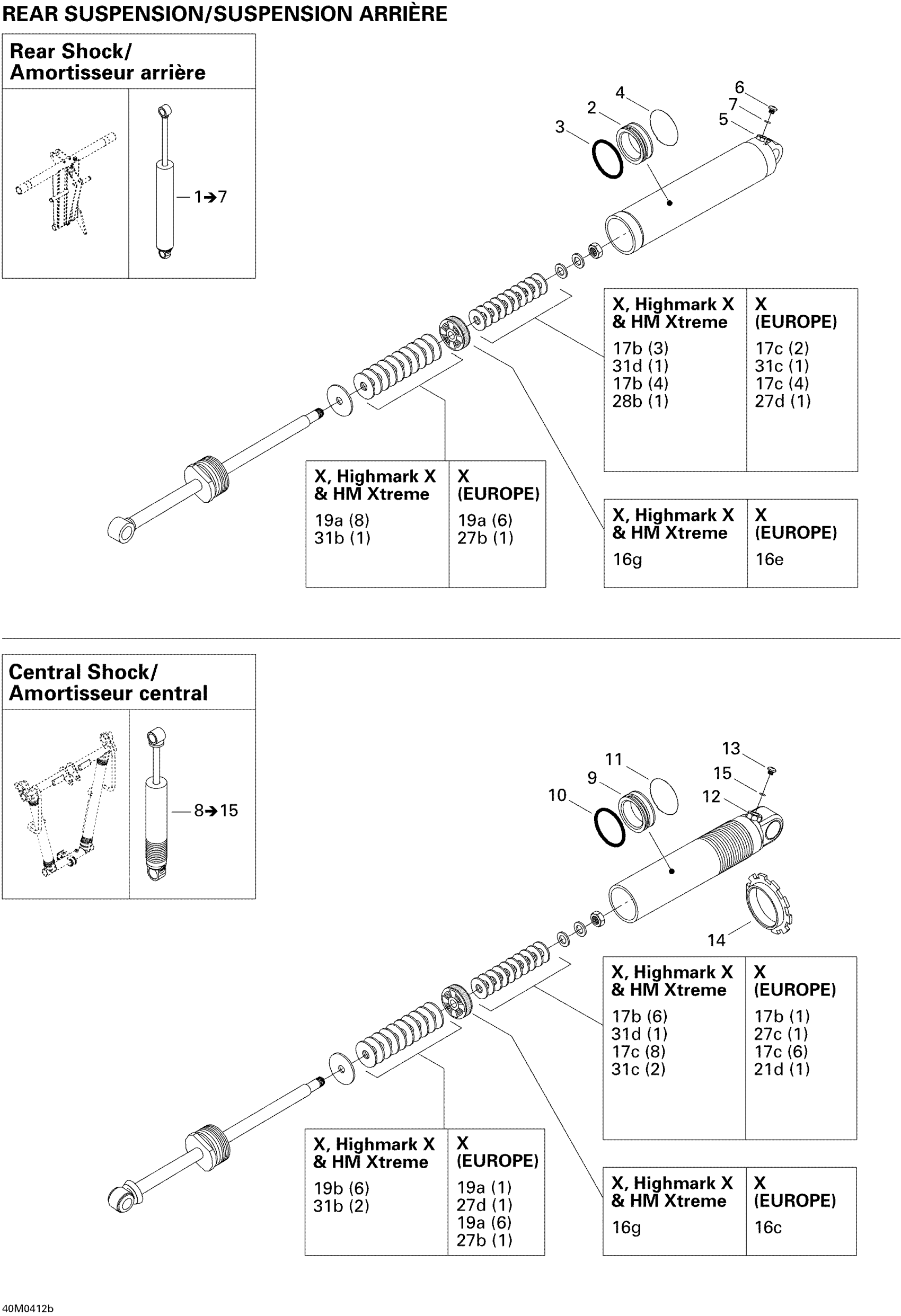

Ski-Doo Summit 600 HO, 2004 08- Rear Take Apart Shocks Diagram
#
1
Rear Shock, Hpg | X, Highmark X & HM Xtreme
503190308
Unavailable
1
Rear Shock, Hpg | X Europe
503190502
Unavailable
2
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
8
Center Shock | X, Highmark X & HM Xtreme
503190310
Unavailable
8
Center Shock | X Europe
503190501
Unavailable
9
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
14
SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe
414888316
Unavailable
16a
Piston (C36)
414888304
Unavailable
16b
Piston (2 X 0,3-1) (C36)
415128848
Unavailable
16c
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
16d
Not Available As Spare Part - Friction Washer
Unavailable
16e
Piston (2 X 0.3-4) (C36)
414888306
Unavailable
16f
Not Available As Spare Part - Friction Washer
Unavailable
16g
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
17a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
17b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
17c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
17d
Not Available As Spare Part - Friction Washer
Unavailable
18a
Not Available As Spare Part - Friction Washer
Unavailable
18b
Leaf Valve Ø28 X 0.203 (C36)
414888320
Unavailable
18c
Leaf Valve Ø28 X 0.152 (C36)
414888321
Unavailable
18d
Not Available As Spare Part - Friction Washer
Unavailable
19a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
19b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
19c
Leaf Valve Ø26 X 0.152 (C36)
414888323
Unavailable
19d
Not Available As Spare Part - Friction Washer
Unavailable
20a
Not Available As Spare Part - Friction Washer
Unavailable
20b
Not Available As Spare Part - Friction Washer
Unavailable
20c
Not Available As Spare Part - Friction Washer
Unavailable
20d
Not Available As Spare Part - Friction Washer
Unavailable
21a
Not Available As Spare Part - Friction Washer
Unavailable
21b
Leaf Valve Ø22 X 0.203 (C36)
414888324
Unavailable
21c
Leaf Valve Ø22 X 0.152 (C36)
414888325
Unavailable
21d
Not Available As Spare Part - Friction Washer
Unavailable
22a
Not Available As Spare Part - Friction Washer
Unavailable
22b
Not Available As Spare Part - Friction Washer
Unavailable
22c
Not Available As Spare Part - Friction Washer
Unavailable
22d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
23a
Not Available As Spare Part - Friction Washer
Unavailable
23b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
23c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
23d
Leaf Valve Ø20 X 0.114 (C36)
414888328
Unavailable
24a
Not Available As Spare Part - Friction Washer
Unavailable
24b
Not Available As Spare Part - Friction Washer
Unavailable
24c
Not Available As Spare Part - Friction Washer
Unavailable
24d
Not Available As Spare Part - Friction Washer
Unavailable
25a
Not Available As Spare Part - Friction Washer
Unavailable
25b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
25c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
25d
Not Available As Spare Part - Friction Washer
Unavailable
26a
Not Available As Spare Part - Friction Washer
Unavailable
26b
Not Available As Spare Part - Friction Washer
Unavailable
26c
Not Available As Spare Part - Friction Washer
Unavailable
26d
Not Available As Spare Part - Friction Washer
Unavailable
27a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
27b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
27c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
27d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
28a
Leaf Valve Ø15 X 0.254 (C36)
414888334
Unavailable
28b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
28c
Leaf Valve Ø15 X 0.152 (C36)
414888336
Unavailable
28d
Leaf Valve Ø15 X 0.114 (C36)
414888337
Unavailable
29a
Not Available As Spare Part - Friction Washer
Unavailable
29b
Not Available As Spare Part - Friction Washer
Unavailable
29c
Not Available As Spare Part - Friction Washer
Unavailable
29d
Not Available As Spare Part - Friction Washer
Unavailable
30a
Not Available As Spare Part - Friction Washer
Unavailable
30b
Not Available As Spare Part - Friction Washer
Unavailable
30c
Not Available As Spare Part - Friction Washer
Unavailable
30d
Not Available As Spare Part - Friction Washer
Unavailable
31a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
31b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
31c
Leaf Valve Ø12 X 0.152 (C36)
414888339
Unavailable
31d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
