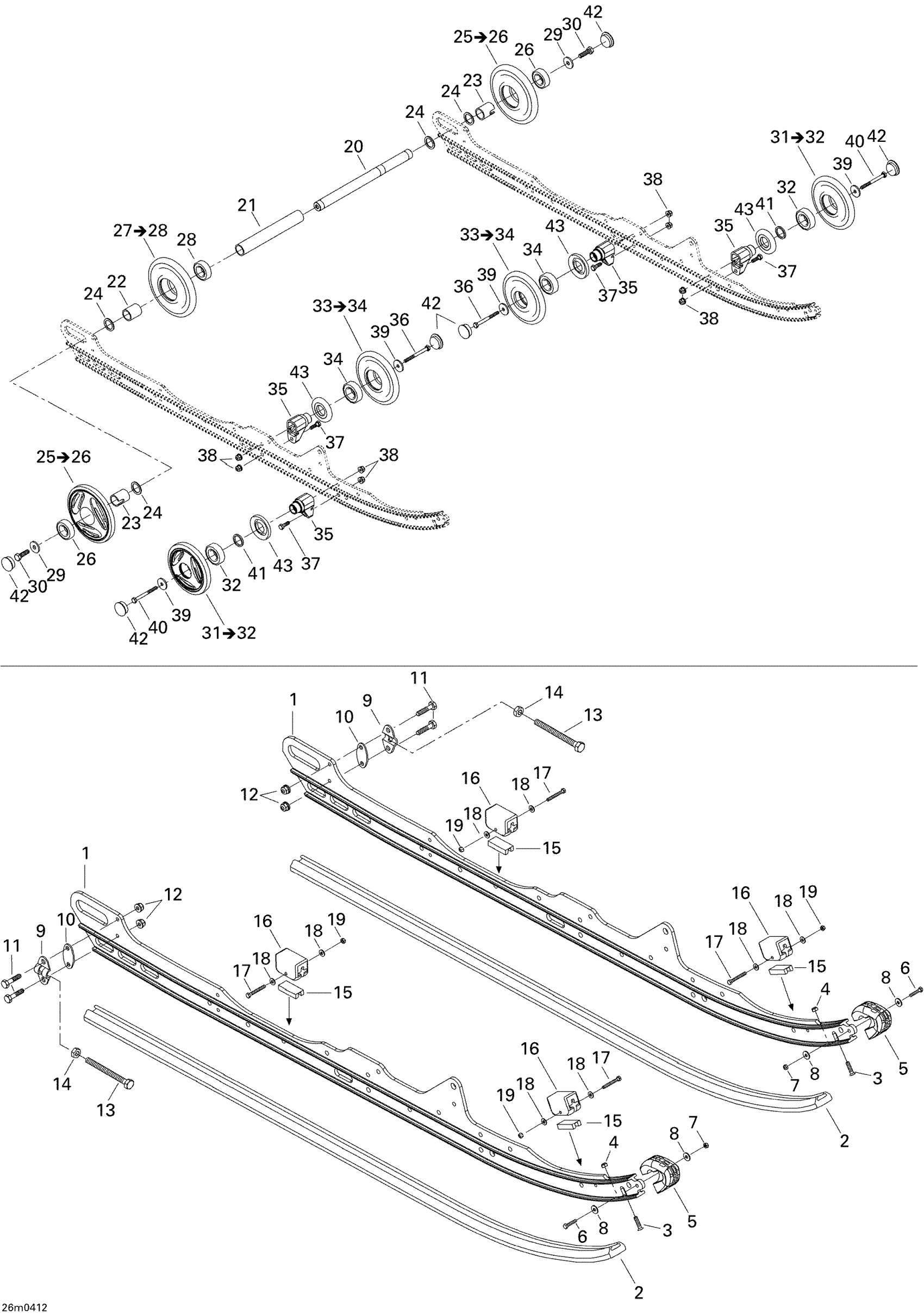

Ski-Doo Summit 600 HO, 2004 08- Rear Suspension Diagram

#

Description
Price

1

RUNNER (144) - Call your local BRP dealership | Adrenaline

503190278

Unavailable

Runner (151") | Sport & Highmark

503190411

Unavailable

Runner 144" | X & Adrenaline

503190402

Unavailable

Runner 151" | X & Adrenaline

503190347

Unavailable

Runner 159" | X

503190360

Unavailable

2

Rail (144") | Adrenaline

503190413

Unavailable

Rail (151") | Sport & Highmark

503190415

Unavailable

RAIL 144, YELLOW - Call your local BRP dealership | X

503190280

Unavailable

RAIL 151, YELLOW - Call your local BRP dealership

503190383

Unavailable

RAIL 159, YELLOW - Call your local BRP dealership

503190370

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.32

4

Elastic Stop Nut M6

232561414

$0.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$0.87

8

Washer | DS 650 X

391301600

$0.48

9

Tensioner

503155300

Unavailable

10

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

11

Hex. Screw M6 X 30

207063044

$1.26

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

14

Elastic Locking Nut M10 X 1.5

233601416

$1.69

15

Reinforcement Stopper

572084800

$12.99

16

Rubber Stopper

570063000

Unavailable

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Elastic Stop Nut M5

232551414

$0.87

20

Rear Axle

503167900

$139.99

21

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

22

Inner Spacer

503182900

$12.58

23

Outer Spacer

503189809

$18.89

24

Washer

503180400

$3.49

25

Wheel 180 Ass'y, Yellow | Includes 35 to 36

503190800

$51.99

26

Ball Bearing

293350115

$12.11

27

Wheel 180

503190799

$51.99

28

Ball Bearing

293350115

$12.11

29

Washer

503183300

$5.82

30

Hex. Screw With Nylon

250000019

$1.69

31

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

32

Ball Bearing

293350115

$12.11

33

Wheel 139 mm Ass'y

503190798

$33.99

34

Ball Bearing

293350115

$12.11

35

SUPPORT - Call your local BRP dealership

503190389

Unavailable

36

Hex. Screw M8 X 80

207088044

$1.68

37

Hex. Screw M8 X 25

207182544

$0.90

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Washer

503183100

$3.17

40

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

41

WASHER - Call your local BRP dealership

503173700

Unavailable

42

Wheel Cap

570063600

$3.49

43

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
