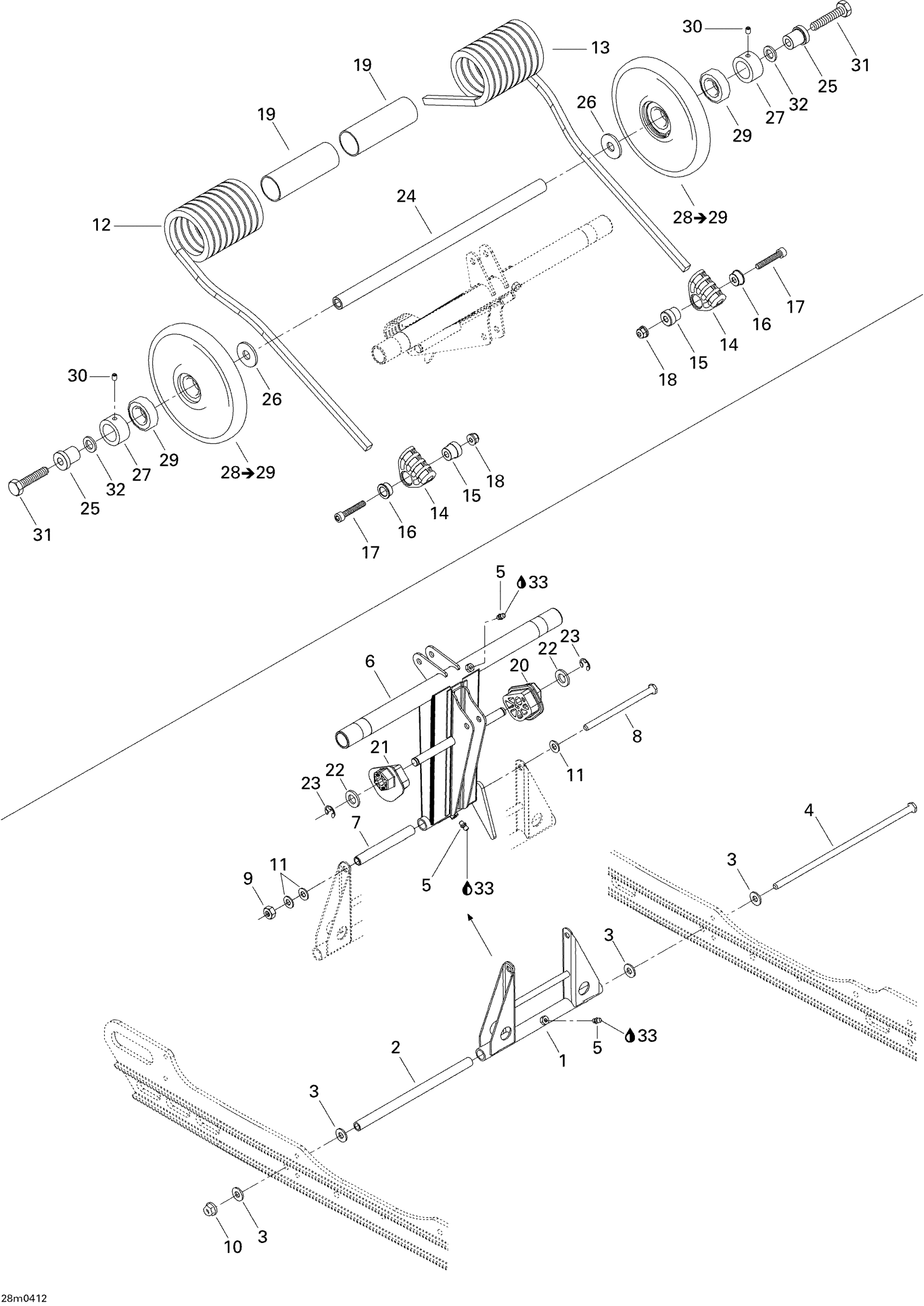

Ski-Doo Summit 600 HO, 2004 08- Rear Arm Diagram

#

Description
Price

1

Pivot Arm

503189793

Unavailable

2

Pivot Arm Axle

503189156

$21.99

3

Washer

503189157

$3.28

4

Bolt M8 X 248mm

503192440

$30.49

5

Grease Fitting

408200700

$3.49

6

Rear Arm

503190552

Unavailable

7

Upper Axle, Pivot Arm

503144300

$11.65

8

Bolt M8, Short

732601197

$15.36

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Flat Washer 8 mm

234081410

$0.83

12

RH Spring, Square

503190329

Unavailable

RH SPRING, SQUARE - Call your local BRP dealership | SE

503190492

Unavailable

RH Spring, Square

503190329

Unavailable

RH SPRING, SQUARE - Call your local BRP dealership | SE

503190492

Unavailable

13

LH SPRING, SQUARE - Call your local BRP dealership

503190331

Unavailable

LH SPRING, SQUARE - Call your local BRP dealership | SE

503190494

Unavailable

LH SPRING, SQUARE - Call your local BRP dealership

503190331

Unavailable

LH SPRING, SQUARE - Call your local BRP dealership | SE

503190494

Unavailable

14

Spring Support

503189657

$11.99

15

Spring Guide Axle

503188934

Unavailable

16

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

17

Socket Head Screw M8 X 45

205084544

$0.90

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

BUSHING - Call your local BRP dealership

503190333

Unavailable

20

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

21

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

22

Flat Washer 12 mm

234021410

$0.72

23

E-Circlip

293370013

$0.65

24

SHAFT - Call your local BRP dealership

503190387

Unavailable

25

Bushing

503189324

$14.15

26

Washer

503190328

$12.65

27

Retaining Ring

503168800

$14.99

28

Wheel 165 Ass’Y | Includes 24 to 25

503190269

Unavailable

29

Ball Bearing

293350115

$12.11

30

Socket Set Screw M6 X 8

206260844

$1.48

31

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

32

Washer

503189564

$0.74

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
