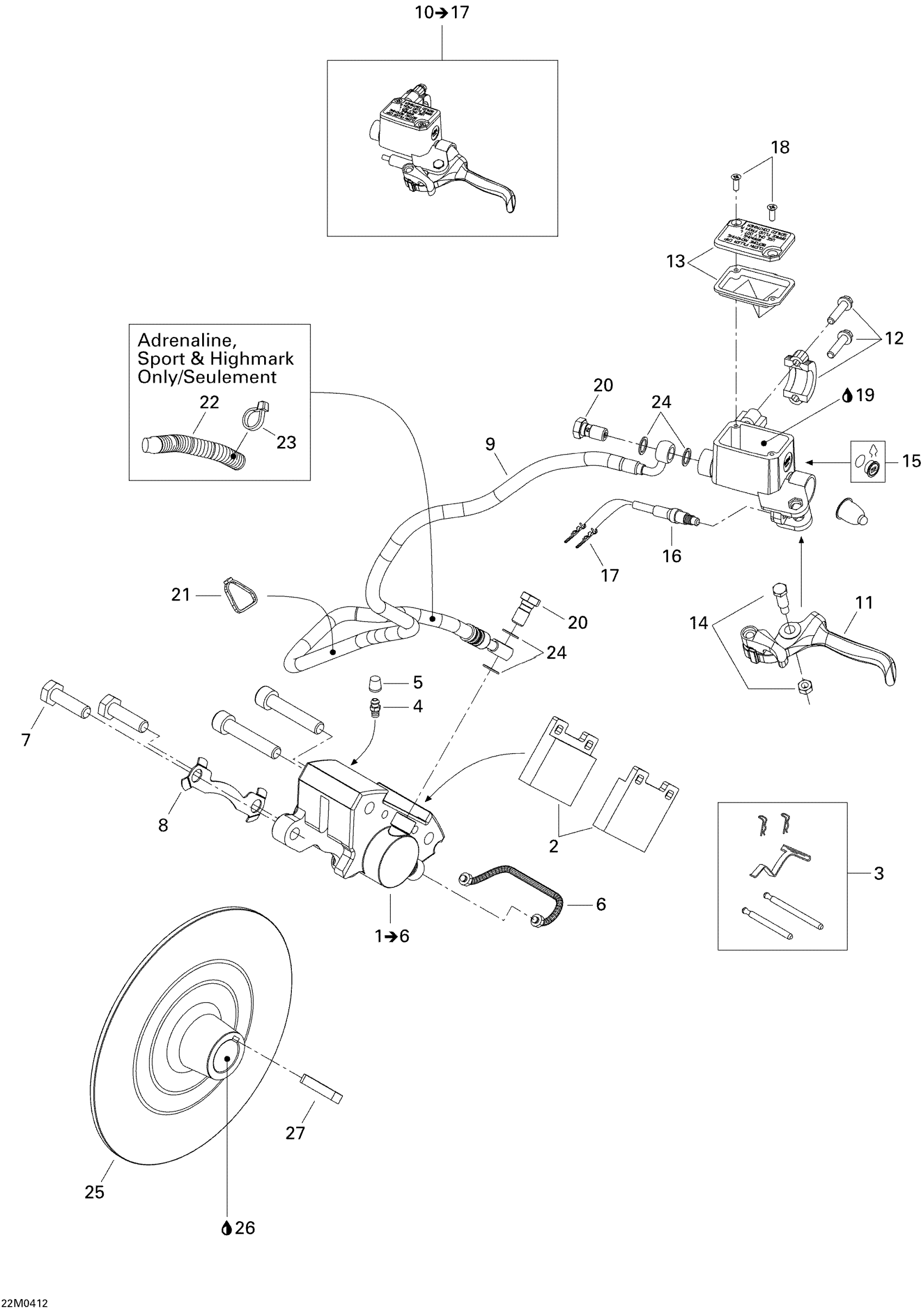

Ski-Doo Summit 600 HO, 2004 06- Hydraulic Brake Diagram
#
Description
Price
1
Caliper | X & Renegade X / Includes items 1 to 6
507032382
Unavailable
1
Caliper | Includes items 1 to 6
507032383
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
8
LOCKING TAB - Call your local BRP dealership
507032316
Unavailable
9
HOSE - Call your local BRP dealership
507032397
Unavailable
9
BRAKE HOSE - Call your local BRP dealership
507032398
Unavailable
10
Master Cylinder | Includes 10 to 16
507032362
Unavailable
11
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
15
WINDOW - Call your local BRP dealership
414990600
Unavailable
18
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
19
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
25
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
25
BRAKE DISK - Call your local BRP dealership
507032395
Unavailable
26
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
27
KEY - Call your local BRP dealership
507021300
Unavailable
