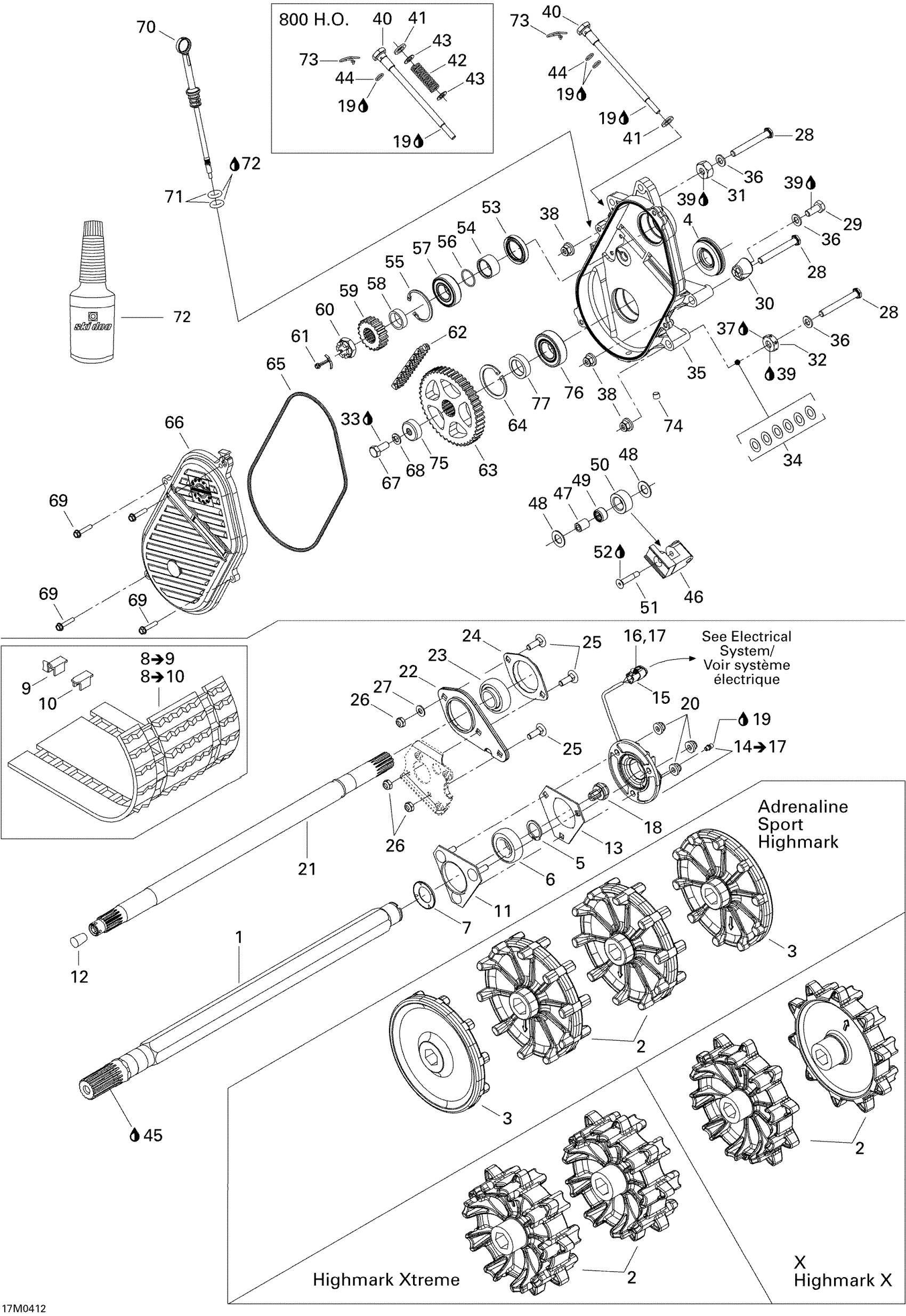

Ski-Doo Summit 600 HO, 2004 05- Drive System Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

Unavailable

SPROCKET, 10 TEETH, INTERIOR/EXTERIOR - Call your local BRP dealership | Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications

504152502

Unavailable

Double Sprocket, 9 Teeth

504152356

Unavailable

3

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

Unavailable

4

Oil Seal Ass'y

504151918

$20.49

5

CIRCLIP - Call your local BRP dealership

371910200

$2.09

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

Track 16" X 144" X 2.0" Ass'y | X & Adr. 800 H.O. & 600 H.O., Includes 7 to 9

504152223

Unavailable

Track "16 X 151" X 2" | Includes 8 to 9 / Sport & Highmark

504152234

Unavailable

Track 16" X 143,64" X 2" | Includes 8 to 9 / Adrenaline

504152311

Unavailable

Track 16" X 151" X 2.0" Ass'y | X & Adr. 800 H.O., Includes 7 to 9

504152324

Unavailable

Track 16" X 158,76" X 2" | Inclus items 8 à 10 / HM Xtreme

504152325

Unavailable

9

Track Guide | Track Width 16''

415129528

$3.29

Track Guide | Track Width 16''

415129528

$3.29

Track Guide | Track Width 16''

415129528

$3.29

Track Guide | Track Width 16''

415129528

$3.29

Track Guide | Track Width 16''

415129528

$3.29

10

Cleat

504152651

$9.69

Cleat

504152651

$9.69

Cleat

504152651

$9.69

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Rotation Sensor

504152345

$71.99

15

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

16

Female Terminal

278000632

$2.09

17

Female Lock, 3 Circuits

515175676

$5.39

18

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

22

SPACER - Call your local BRP dealership

504151968

Unavailable

23

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

24

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

25

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

26

Hex. Elastic Stop Nut M8

232581414

$0.56

27

Flat Washer 8 mm

234081410

$0.83

28

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

29

Hex. Screw M10 X 25

207102544

$1.37

30

Spacer

504152252

Unavailable

31

Spacer

504083800

Unavailable

32

SPACER - Call your local BRP dealership

504152237

Unavailable

33

Loctite 271, 10 ml

293800005

$26.99

34

WASHER - Call your local BRP dealership

504073700

Unavailable

35

Chaincase

504152086

Unavailable

Chaincase

504152312

Unavailable

36

Washer

503183800

$3.28

37

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

38

Hex. Flange Elastic Nut M10

233201414

$1.58

39

Loctite 243, 10 ml

293800060

$21.49

40

Adjustment Screw

504151946

Unavailable

ADJUSTMENT SCREW - Call your local BRP dealership

732601314

Unavailable

41

Flat Washer 10 mm

234001410

$1.26

Washer | 7415/7416. 7417/7418.

503189148

$2.85

42

SPRING - Call your local BRP dealership

504151945

Unavailable

43

HARD WASHER - Call your local BRP dealership | LTD

503125900

Unavailable

44

O-Ring

414484400

$7.51

O-RING - Call your local BRP dealership

504151954

Unavailable

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

46

Chain Tensioner

504151940

Unavailable

Chain Tensioner

504151951

Unavailable

47

SPACER - Call your local BRP dealership

504080200

Unavailable

48

WASHER - Call your local BRP dealership

504080300

Unavailable

49

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

50

ROLLER - Call your local BRP dealership

414531300

Unavailable

51

SCREW - Call your local BRP dealership

732601144

Unavailable

52

Loctite 271, 10 ml

293800005

$26.99

53

Oil Seal

293200158

$14.22

54

SPACER - Call your local BRP dealership

507031500

Unavailable

55

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

56

O-RING - Call your local BRP dealership

414876700

Unavailable

57

Ball Bearing

293350115

$12.11

58

SHIM - Call your local BRP dealership

504147200

Unavailable

59

Sprocket 23 Teeth

504153911

$44.99

Sprocket 22 Teeth Large

504091100

$70.99

Sprocket, 21 Teeth

504096200

$93.99

Sprocket, 19 Teeth

504153783

$111.49

60

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

61

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

62

DRIVE CHAIN, 72 LINKS - Call your local BRP dealership

504151830

Unavailable

Drive Chain, 74 Links | Except Europe

504151857

$153.49

63

43 TEETH SPROCKET, LARGE - Call your local BRP dealership | Except Europe

504148500

Unavailable

45 Tooth Sprocket | Europe

504152238

Unavailable

64

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

65

O-Ring

415046400

$24.99

66

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

67

Hex. Screw M10 X 25

207102544

$1.37

68

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

69

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

70

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

71

O-RING - Call your local BRP dealership

414969400

Unavailable

72

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

73

Hair Pin

414575600

$1.89

74

Plug 1/8”-27

504151921

$4.19

75

CAP - Call your local BRP dealership

504152104

Unavailable

76

Ball Bearing

504152005

$46.49

77

Shim

504152058

Unavailable
