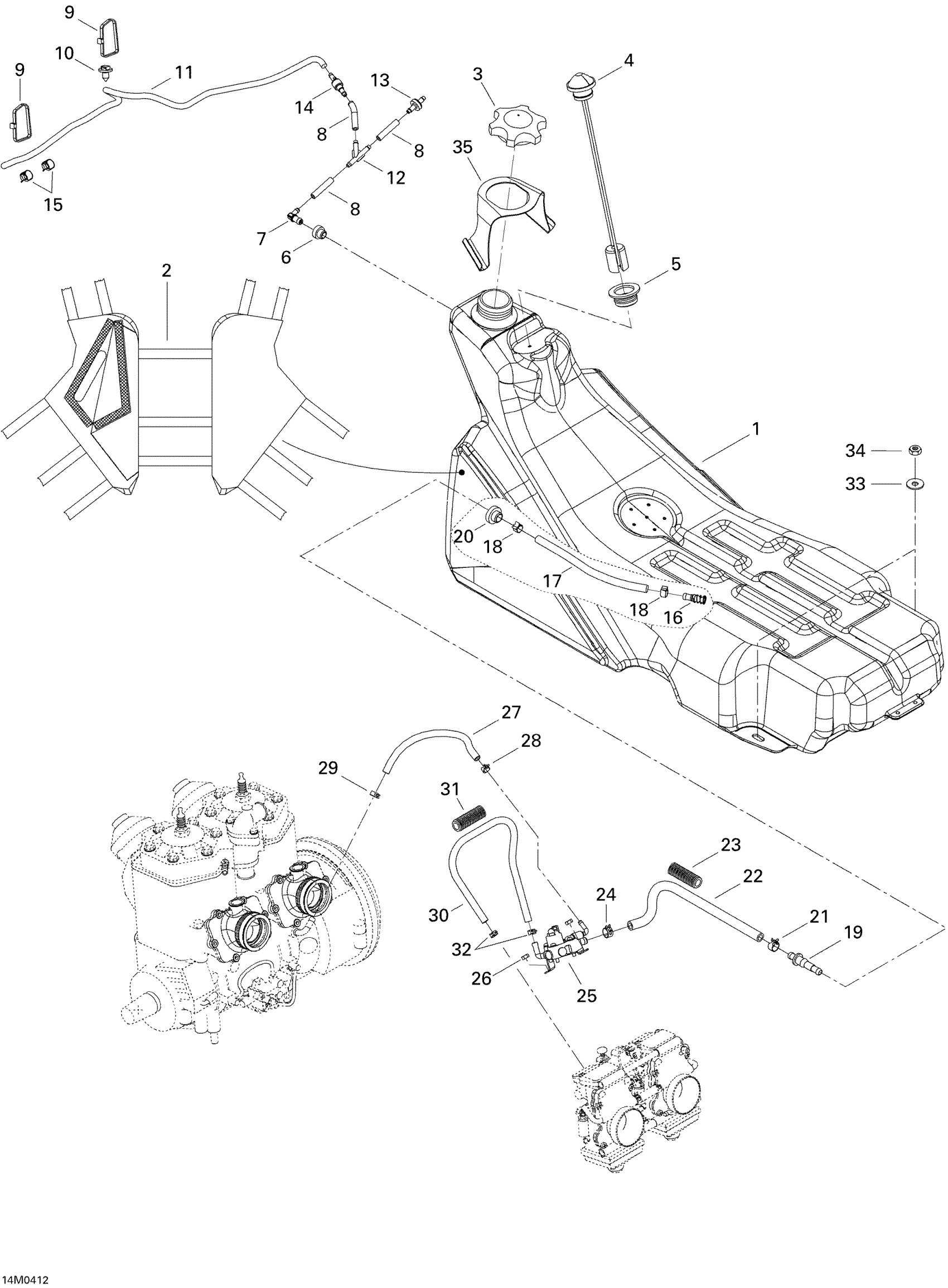

Ski-Doo Summit 600 HO, 2004 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033090

Unavailable

Fuel Tank

513033094

Unavailable

2

TANK COVER, BLACK - Call your local BRP dealership

513033075

Unavailable

3

Fuel Tank Cap 91 Octane

513033722

$22.49

Fuel Tank Cap

513033025

$24.49

4

Fuel Gauge | HM

513033095

Unavailable

5

Grommet

293720058

$11.99

6

Grommet

513032908

$10.49

7

Male Connector

414580700

$4.12

8

Polyurethane Hose 10000Mm Long

219704410

$56.99

9

Tie-Rap 180 mm

414115200

$0.11

10

Mount Dart

293730040

$1.04

11

Polyurethane Hose 10000Mm Long

219704410

$56.99

12

Y-Fitting

293710059

$9.69

13

Check Valve

275500398

$10.99

14

Check Valve

275500505

$31.99

15

Spring Clamp

414554800

$0.88

16

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

17

Hose

513033070

$14.99

18

Norma Spring Clamp

513033010

$9.69

19

Male Connector

414872700

$1.90

20

Grommet | Europe

707800347

$10.49

21

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

22

Hose

513033073

Unavailable

23

Tubing 16 Mm 1000Mm Long

219704408

$7.49

24

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

25

Fuel Pump | Manuel Start

403901811

$84.99

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

HOSE - Call your local BRP dealership

513033035

Unavailable

28

Spring Clamp

414415200

$0.88

29

Universal Spring Clamp

513033029

$5.39

30

Tube

415117800

Unavailable

31

Tubing 10 MM 1000MM Long

219704407

$2.79

32

Spring Clamp

414420700

$0.72

33

Flat Washer 8 mm

234082410

$1.47

34

Hex. Elastic Stop Nut M8

232581414

$0.56

35

SUPPORT - Call your local BRP dealership

513033066

Unavailable
