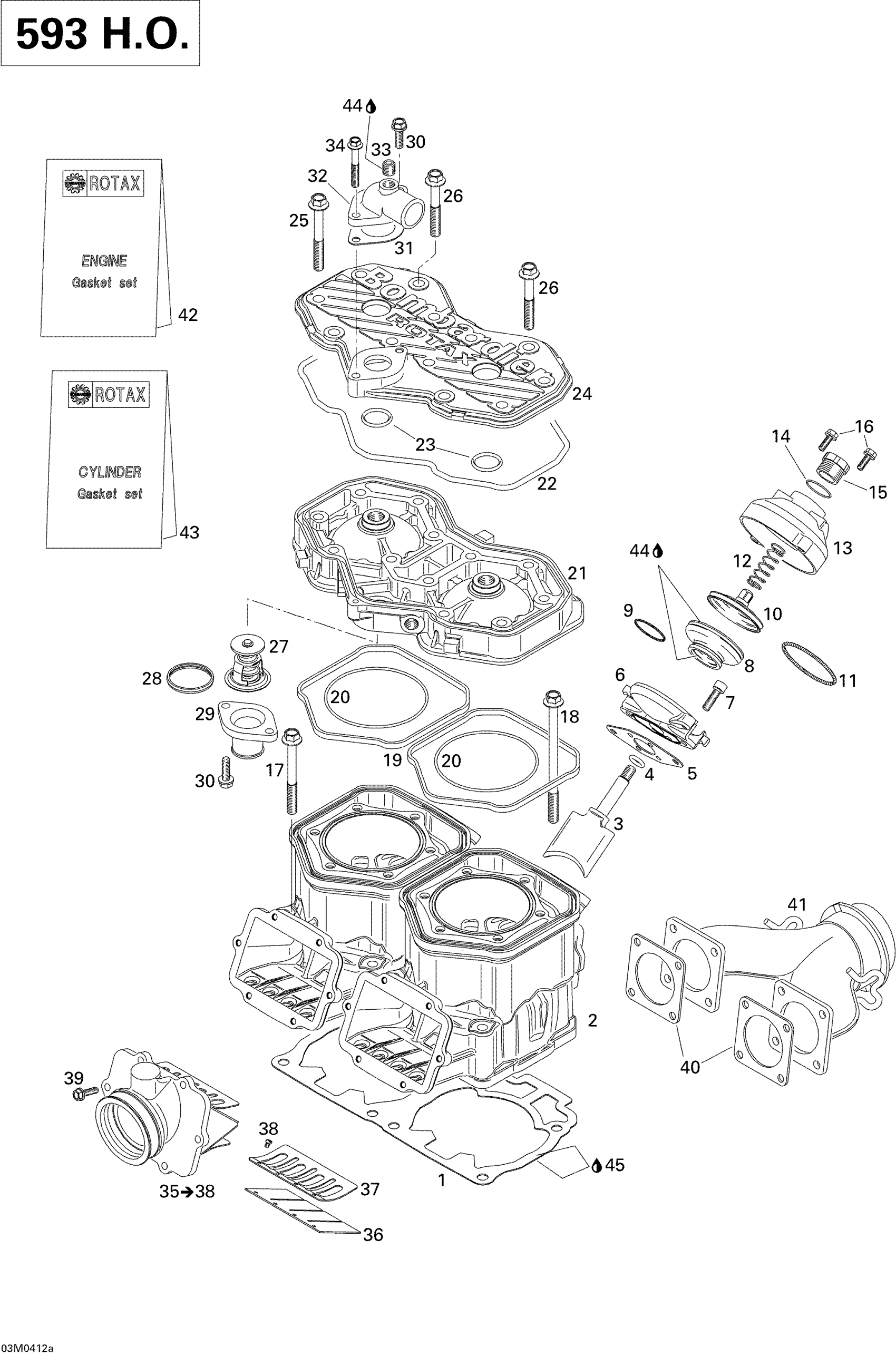

Ski-Doo Summit 600 HO, 2004 Cylinder, Exhaust Manifold, Reed Valve (593 HO) Diagram

#

Description
Price

1

Gasket 0.6 mm

420431161

$23.05

Gasket 0.5 mm

420431160

$16.89

Gasket 0.7 mm

420431162

$23.05

Double Gasket 0.8 mm

420431163

$23.05

2

NICASIL CYLINDER - Call your local BRP dealership

420613710

Unavailable

3

Exhaust Valve

420854650

$66.89

4

Gasket

420931542

$6.62

5

O-Ring

420430110

$3.61

6

Valve Housing

420854455

$75.99

7

Socket Head Screw M6 X 25

205062544

$0.88

8

Bellows

420260729

$37.66

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

Spring This part replaces 420239944.

420239954

$7.31

SPRING - Call your local BRP dealership

420239941

Unavailable

13

Valve Cover This part replaces 420911558.

420911559

$24.02

14

O-Ring

420430220

$8.03

15

Adjuster Screw

420241221

Unavailable

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

17

Hex. Collar Screw

420640524

$11.52

18

Hex. Collar Screw

420640534

$13.58

19

Rubber Ring

420931590

$5.69

20

O-Ring This part replaces 420850540.

293300026

$2.67

21

CYLINDER HEAD, SILVER - Call your local BRP dealership

420613700

Unavailable

22

O-Ring This part replaces 290950320.

420950320

$11.48

23

O-Ring

420430782

$4.41

24

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

$264.99

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

26

Hex. Screw M8 X 56.5

420941627

$8.34

27

Thermostat This part replaces 414834100.

420922519

$59.20

28

Sealing Ring

420931272

$15.35

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

$22.28

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

31

Gasket

420850338

$10.28

32

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

$40.74

33

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

34

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

35

Intake Socket Ass'y | Includes 35 to 38

420867879

$352.28

36

Reed Pedal

420924680

$37.66

37

Reed Pedal Stop

420924695

$13.58

38

Phillips Screw M3 X 5

420941215

$1.42

39

Taptite Screw M5 X 16

420941928

$0.39

40

Gasket

420850552

$7.92

41

EXHAUST MANIFOLD - Call your local BRP dealership

420673072

$196.89

42

Gasket Set, Engine

420889931

$245.35

43

Gasket Set, Cylinder

420889936

$170.74

44

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

45

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97
