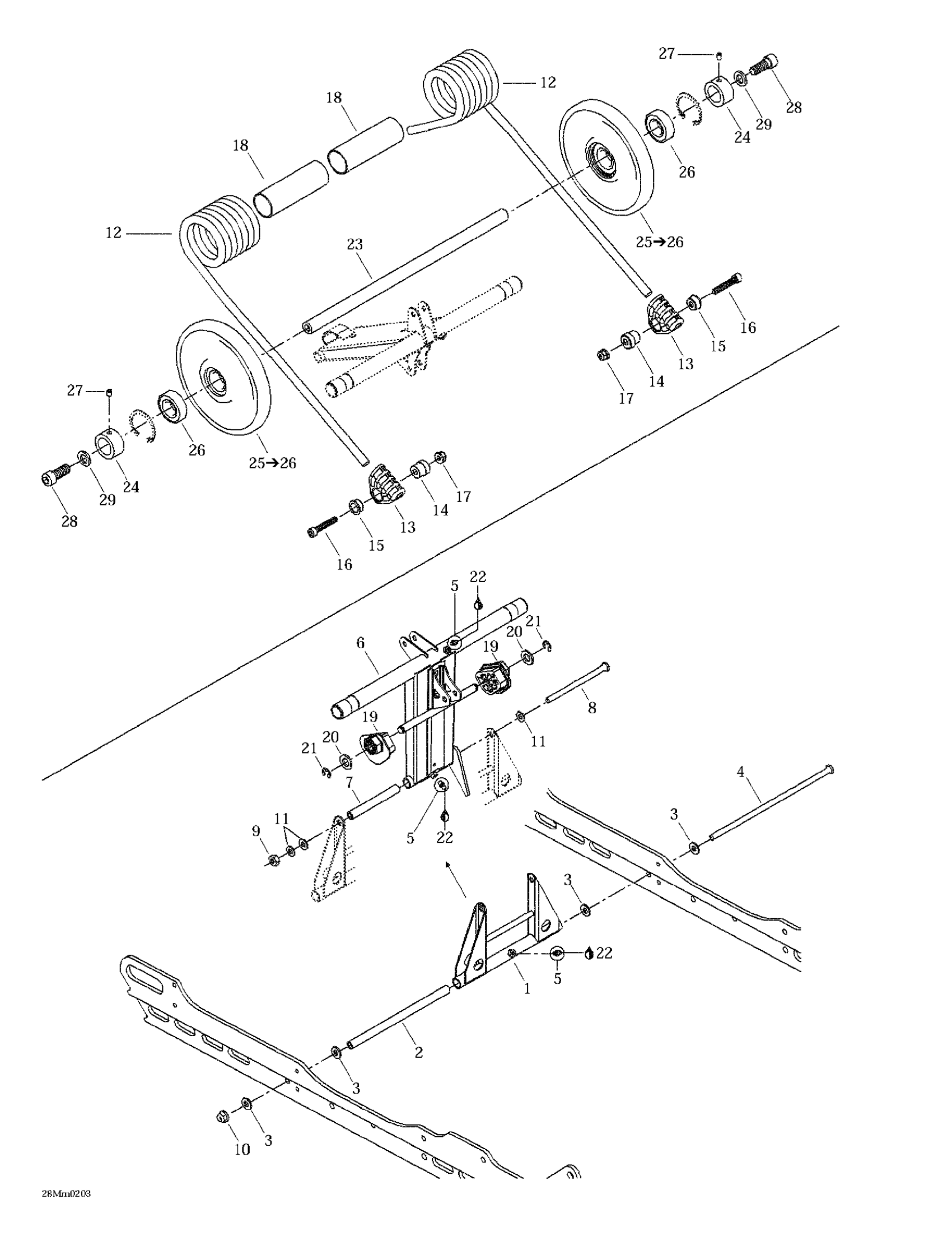

Ski-Doo Summit 600/700/800, 2002 08- Rear Arm Diagram

#

Description
Price

1

Pivot Arm

503189793

Unavailable

2

Pivot Arm Axle

503189156

$21.99

3

Washer

503189157

$3.28

4

Bolt M8 X 248mm

503192440

$30.49

5

Grease Fitting

408200700

$3.49

6

Rear Arm

503189954

Unavailable

7

Upper Axle, Pivot Arm

503144300

$11.65

8

Bolt M8, Short

732601197

$15.36

9

Hex. Elastic Stop Nut M8

232581414

$0.56

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Flat Washer 8 mm

234081410

$0.83

12

RH SPRING - Call your local BRP dealership

503189522

Unavailable

LH SPRING - Call your local BRP dealership

503189524

Unavailable

RH SPRING - Call your local BRP dealership

503189522

Unavailable

LH SPRING - Call your local BRP dealership

503189524

Unavailable

RH Spring (Europe) | MX Z 380 F. MX Z 550 F.

503189627

Unavailable

LH SPRING (EUROPE) - Call your local BRP dealership | MX Z 380 F. MX Z 550 F.

503189629

Unavailable

13

Spring Support

503189657

$11.99

14

Spring Guide Axle

503188934

Unavailable

15

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

16

Socket Head Screw M8 X 45

205084544

$0.90

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

BUSHING - Call your local BRP dealership

572086000

Unavailable

19

LH Cam Adjuster

503189773

Unavailable

RH Cam Adjuster

503189774

Unavailable

20

Flat Washer 12 mm

234021410

$0.72

21

E-Circlip

293370013

$0.65

22

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

23

Rear Cross Shaft

503189711

Unavailable

24

Retaining Ring

503168800

$14.99

25

Wheel 165 Ass'y | Includes 25 - 26.

503189187

Unavailable

26

Ball Bearing

293350115

$12.11

27

Socket Set Screw M6 X 8

206260844

$1.48

28

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

29

Washer

503189276

$3.28
