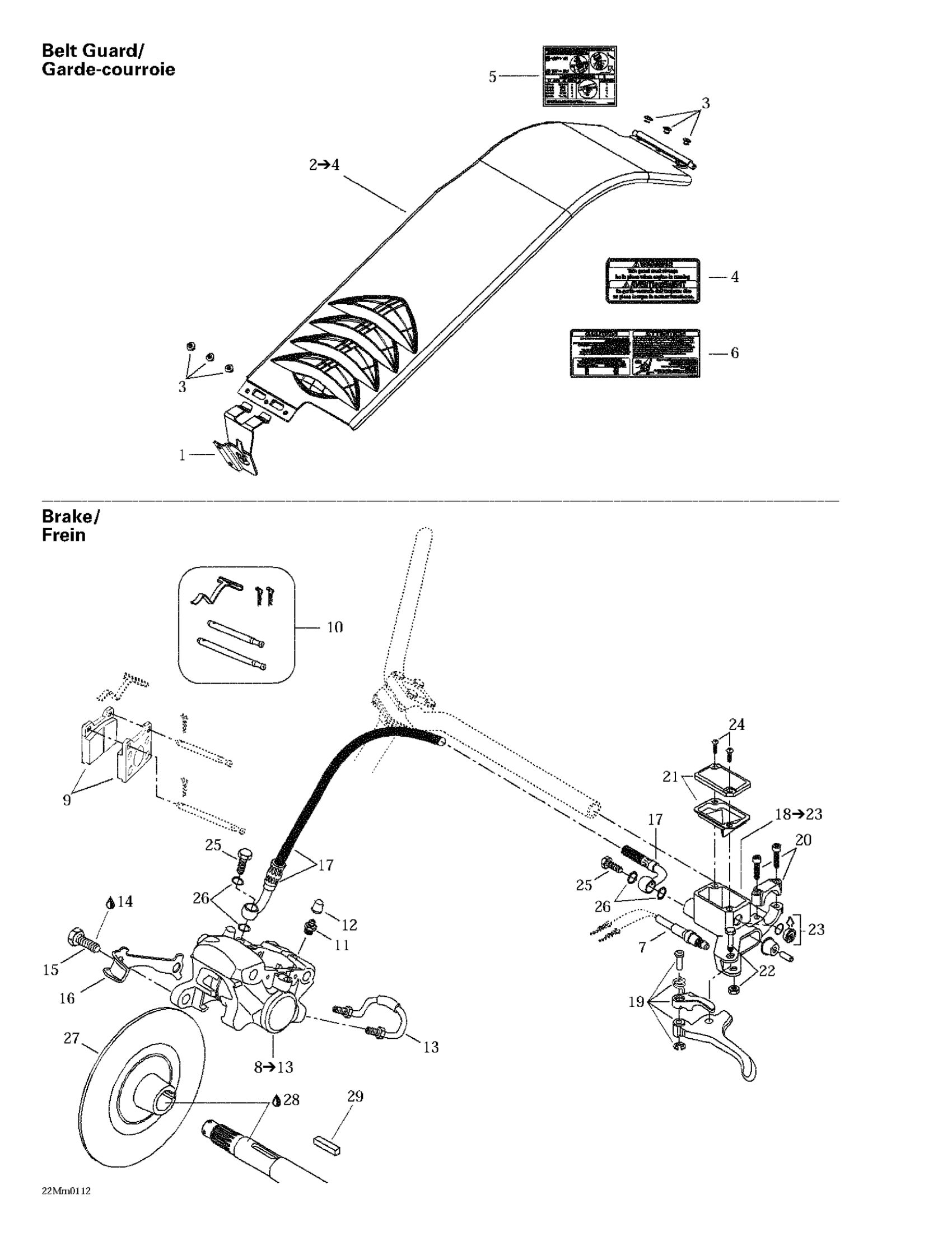

Ski-Doo Summit 600/700/800, 2002 06- Hydraulic Brake And Belt Guard Diagram
#
Description
Price
1
Bracket
417300001
Unavailable
2
Belt Guard Ass’Y | Includes Items 2 to 4
417300173
Unavailable
4
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
5
Suspension Adjustment Decal
418001706
Unavailable
Suspension Adjustment Decal | (X, HMX) Summit 800.
516000955
Unavailable
6
Instruction Label | Canada / U.S.A.
516001232
Unavailable
8
Caliper | Includes Items 1 to 6
507032321
Unavailable
8
Caliper (X) | MX Z 600. MX Z 700. MX Z 800.
507032204
Unavailable
10
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
11
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
12
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
13
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
16
Locking Tab
506032316
Unavailable
17
HOSE - Call your local BRP dealership
507032237
Unavailable
Braided Brake Hose
507032329
Unavailable
18
Master Cylinder | Includes 1 to 8
507032293
Unavailable
19
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
23
WINDOW - Call your local BRP dealership
414990600
Unavailable
24
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
27
BRAKE DISK - Call your local BRP dealership
507031300
Unavailable
Brake Disk | X & Renegade X
507032301
Unavailable
28
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
29
KEY - Call your local BRP dealership
507021300
Unavailable
