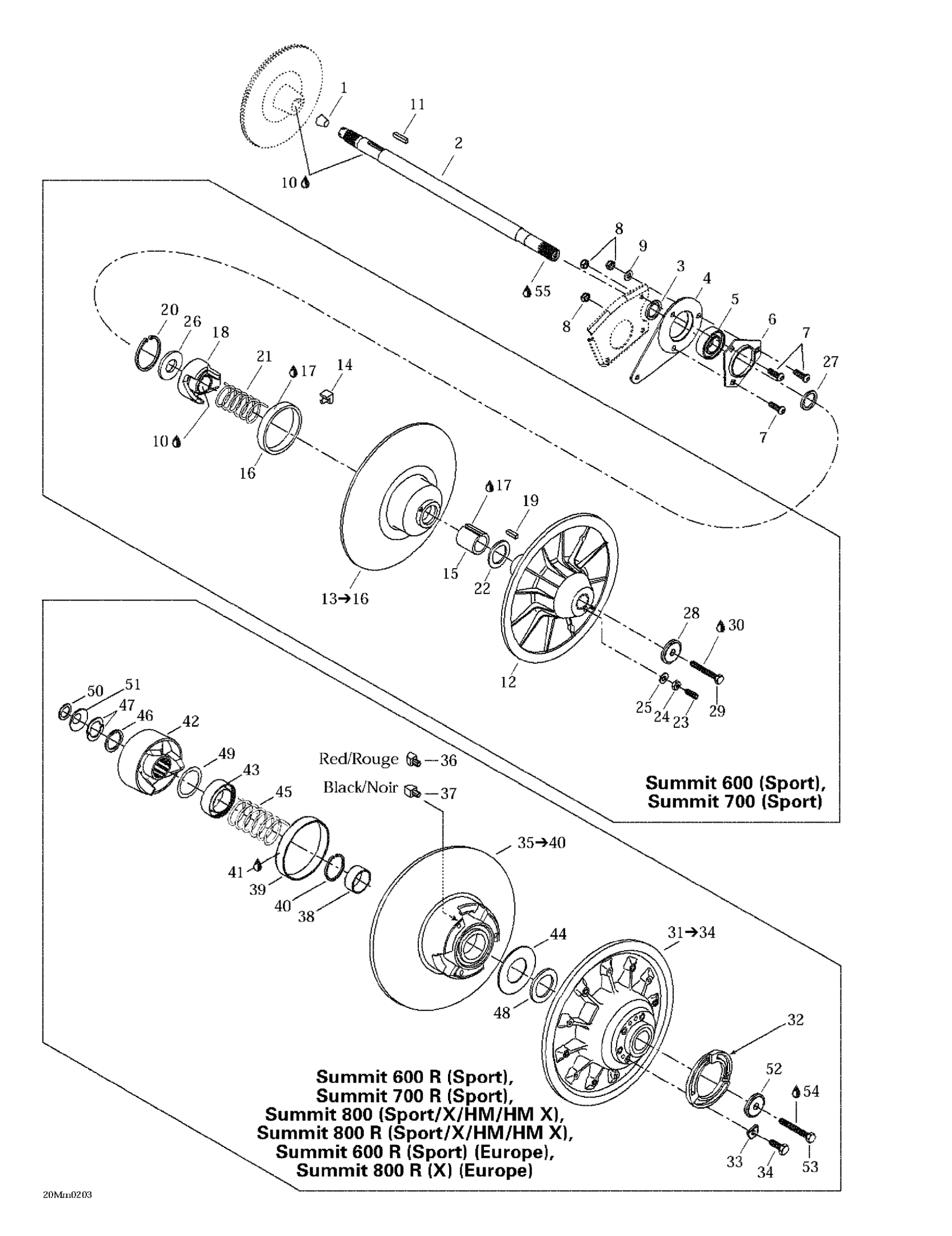

Ski-Doo Summit 600/700/800, 2002 05- Driven Pulley Diagram

#

Description
Price

1

CORK - Call your local BRP dealership

414784800

Unavailable

2

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

3

Spacer

504149100

$12.99

4

Spacer (Casting)

080044200

$21.99

5

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

6

FLANGE - Call your local BRP dealership

501025000

Unavailable

7

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205482546

Unavailable

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

Flat Washer 8 mm

234081410

$0.83

10

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

11

KEY - Call your local BRP dealership

507021300

Unavailable

12

Fixed Flange | 380 F.

417126477

Unavailable

13

Sliding Flange Ass’Y | Includes 3 - 7.

417126486

Unavailable

14

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

15

BUSHING - Call your local BRP dealership

415011200

Unavailable

16

GARLOCK BUSHING - Call your local BRP dealership

414876600

Unavailable

17

Loctite 609, 10 ml

413703100

$26.99

18

Cam 44 Deg. (Summit 600 (Sport)) | Summit 600.

417126333

Unavailable

Cam 47° | STD 600 ADRENALINE & TRAIL MX Z 500. MX Z 700.

417126337

Unavailable

19

Key

414820800

Unavailable

20

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

21

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

22

Thrust Washer

504141900

Unavailable

23

Socket Set Screw M6 X 30

206263044

Unavailable

24

Hex. Nut M6

232061414

$0.53

25

WASHER - Call your local BRP dealership

420245370

Unavailable

26

Washer

504141800

Unavailable

27

Spacer

504149100

$12.99

28

Strength Washer

517302322

$12.63

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Fixed Flange Ass’Y | INCLUDES ITEMS 39 TO 42

417126527

Unavailable

32

Adjustment Ring

415005800

Unavailable

33

Adjustment Shim

415005900

Unavailable

34

Hex. Screw M6 X 25

207162544

$1.15

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

35

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

36

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

37

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

38

Not Available As Spare Part - Friction Washer

Unavailable

39

BUSHING - Call your local BRP dealership

417126902

Unavailable

40

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

41

Loctite 609, 10 ml

413703100

$26.99

42

Cam Ass'y

417126385

Unavailable

Cam Ass'y

417126385

Unavailable

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

Cam Ass'y

417126385

Unavailable

43

GUARD - Call your local BRP dealership

417126381

Unavailable

44

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

45

Release Spring, Purple | North America

414978300

$33.99

46

Spacer

417126375

Unavailable

47

HALF KEY - Call your local BRP dealership

371911000

Unavailable

48

SHIM - Call your local BRP dealership

504112300

Unavailable

49

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

50

Spacer

417300265

$2.29

51

Protector

417300055

Unavailable

52

Strength Washer

517302322

$12.63

53

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

54

Loctite 243, 10 ml

293800060

$21.49

55

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
