Description

Price

1

Flange Connector

420810868

$88.99

2

Socket Head Screw M6 x 16

420241237

$2.22

3

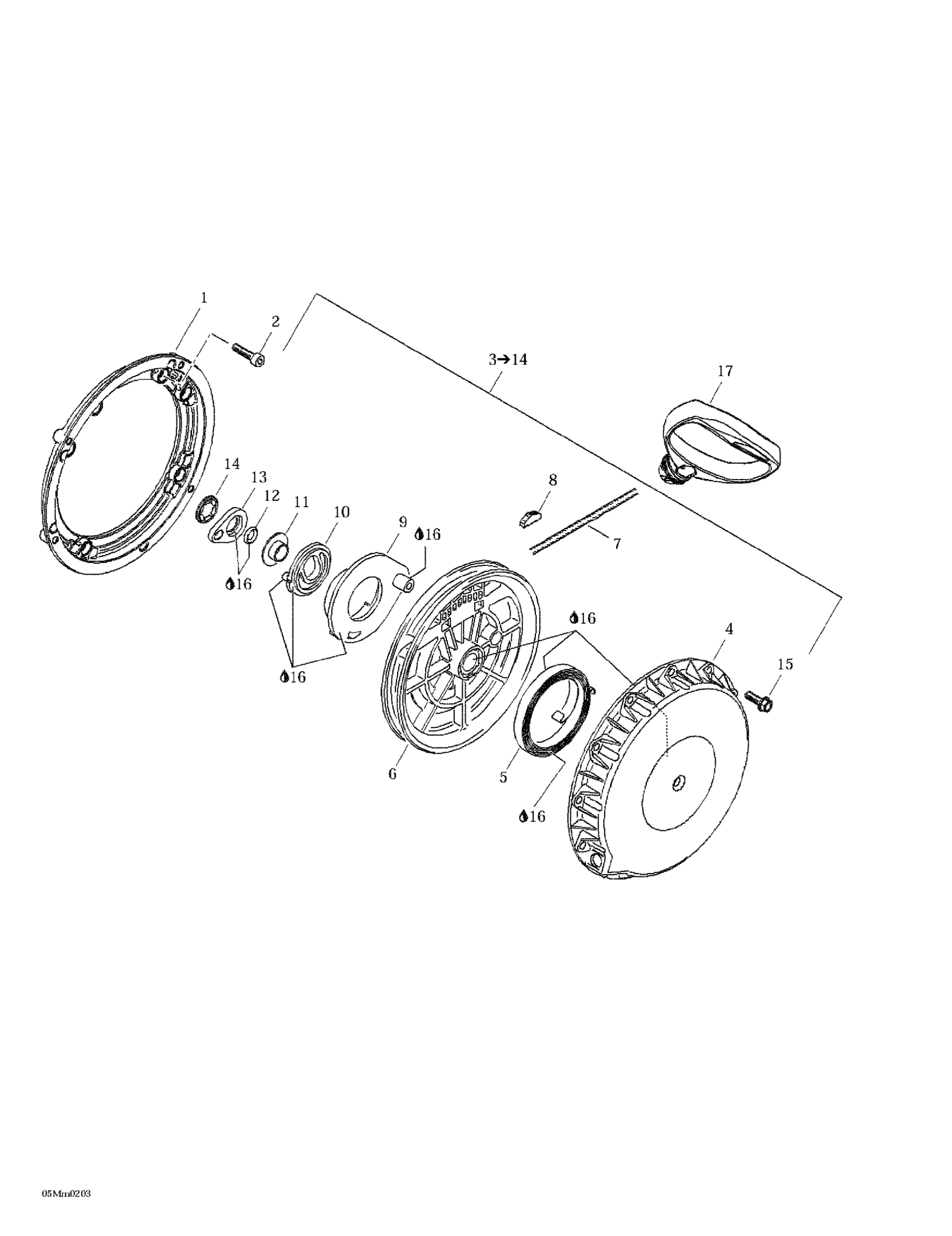

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

4

Starter Housing

420910256

$94.99

5

Rewind Spring

420939115

$30.49

6

Rope Sheave

420852285

Unavailable

7

Was 412500100 Rope-Starter

219704403

$158.99

8

Key Clamp

420852070

$4.23

9

Pawl

420852633

$33.99

10

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

11

Stage Sleeve

420847926

$16.33

12

O-Ring

420250400

$5.39

13

Lock Ring

420852520

$9.27

14

Locking Element

420845560

$2.11

15

Torx Flange Screw M6 X 20

420441386
