Description

Price

1

Carburetor Kit TM 40-B157 | Summit 600.

403138702

Unavailable

Carburetor Kit TM 40-B163 | Summit 700.

403138704

Unavailable

Carburetor Kit TM 40-B175 | Summit 800.

403138703

Unavailable

Carburetor Kit TM 40 B-154 | Grand Touring 600.

403138700

$986.99

Carburetor Kit TM 40 B-166 | Grand Touring 800.

403138698

Unavailable

2

Gasket

404161940

$24.49

3

COVER - Call your local BRP dealership

404161939

$38.99

4

Ring

404161937

Unavailable

5

Screw

404161936

Unavailable

6

Screw

404161928

$12.70

7

Ring

404161926

$12.70

8

Ring

404161925

$12.70

9

RING - Call your local BRP dealership

404161924

Unavailable

10

Screw

404161923

$7.23

11

Spring

404161915

Unavailable

12

Throttle Shaft

404161914

Unavailable

13

Screw

404161911

$34.99

14

Screw

404161910

$12.70

15

Lever

404161909

$17.99

16

Nipple

404161905

$47.99

17

Starter Lever

404161901

$35.99

18

Packing

404161894

$12.70

19

Spring

404103500

$8.47

20

SHAFT - Call your local BRP dealership

404161981

Unavailable

21

Hose | Grand Touring 500.

404161956

$19.49

22

Clip | Grand Touring 500.

404161957

$17.08

23

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

24

Funnel (PTO)

404161959

Unavailable

Funnel (MAG)

404161958

Unavailable

25

DRAIN SCREW - Call your local BRP dealership

404161955

Unavailable

26

O-Ring

404161945

$9.06

27

Main Jet 500 | 600

404108200

$5.21

Main Jet 510N | 700

404161983

Unavailable

Main Jet 520N | 800 ADRENALINE & RENEGADE MX Z 800.

404161984

$17.99

28

Pilot Jet 20 | 600

404108600

$5.21

Pilot Jet 17.5

404161944

$5.21

29

Needle J8-9Ghy01-58 | 600

404161980

Unavailable

NEEDLE J8-9ZLY03-58 - Call your local BRP dealership | 700

404161953

Unavailable

Needle J8-9zly02-58 | Grand Touring 800.

404161962

Unavailable

30

Piston Valve 2.0

404161950

Unavailable

31

Packing

404137600

$6.38

32

E-Ring

404152200

$4.14

33

Lever (PTO)

404161927

Unavailable

Lever (MAG)

404161938

Unavailable

34

O-Ring

404161935

$24.49

35

O-Ring

404161961

$17.99

36

Screw

404161933

$11.18

37

Float

404161932

$122.49

38

BODY FLOAT ASS'Y - Call your local BRP dealership

404161960

Unavailable

39

Cap

270500095

$9.59

40

Plate

404161930

Unavailable

41

Clip

404161929

Unavailable

42

E-Ring

404138300

$11.18

43

Washer

404161922

Unavailable

44

Ring

404161921

Unavailable

45

Screw

404161920

$12.70

46

Plate

404161919

$12.70

47

Spring

404161918

$6.45

48

Screw

404161917

$12.70

49

Bracket TM 40-98 (PTO)

404161916

Unavailable

50

Adjustment Screw

404137500

$19.49

51

Spring

404161913

$12.70

52

Screw

404161912

$6.38

53

Screw

404136100

$6.38

54

Cap

404140000

$11.18

55

Guide Holder

404136900

$16.49

56

Spring

404161908

$12.77

57

Plunger Ass'y

404161907

$31.99

58

Screw

404161906

$6.38

59

HOSE - Call your local BRP dealership

404161904

Unavailable

60

Screw

404161903

$3.08

61

Bracket, Mag

404161902

Unavailable

62

Cap

404161899

$12.18

63

Adjuster

404161898

$23.99

64

Spring

404161897

$5.95

65

Washer

404161896

$6.06

66

Packing

404161895

$9.06

67

Nipple

404153400

$12.16

68

CAP - Call your local BRP dealership

404154900

Unavailable

69

Screw

404138800

$6.06

70

Tool Kit

407112000

Unavailable

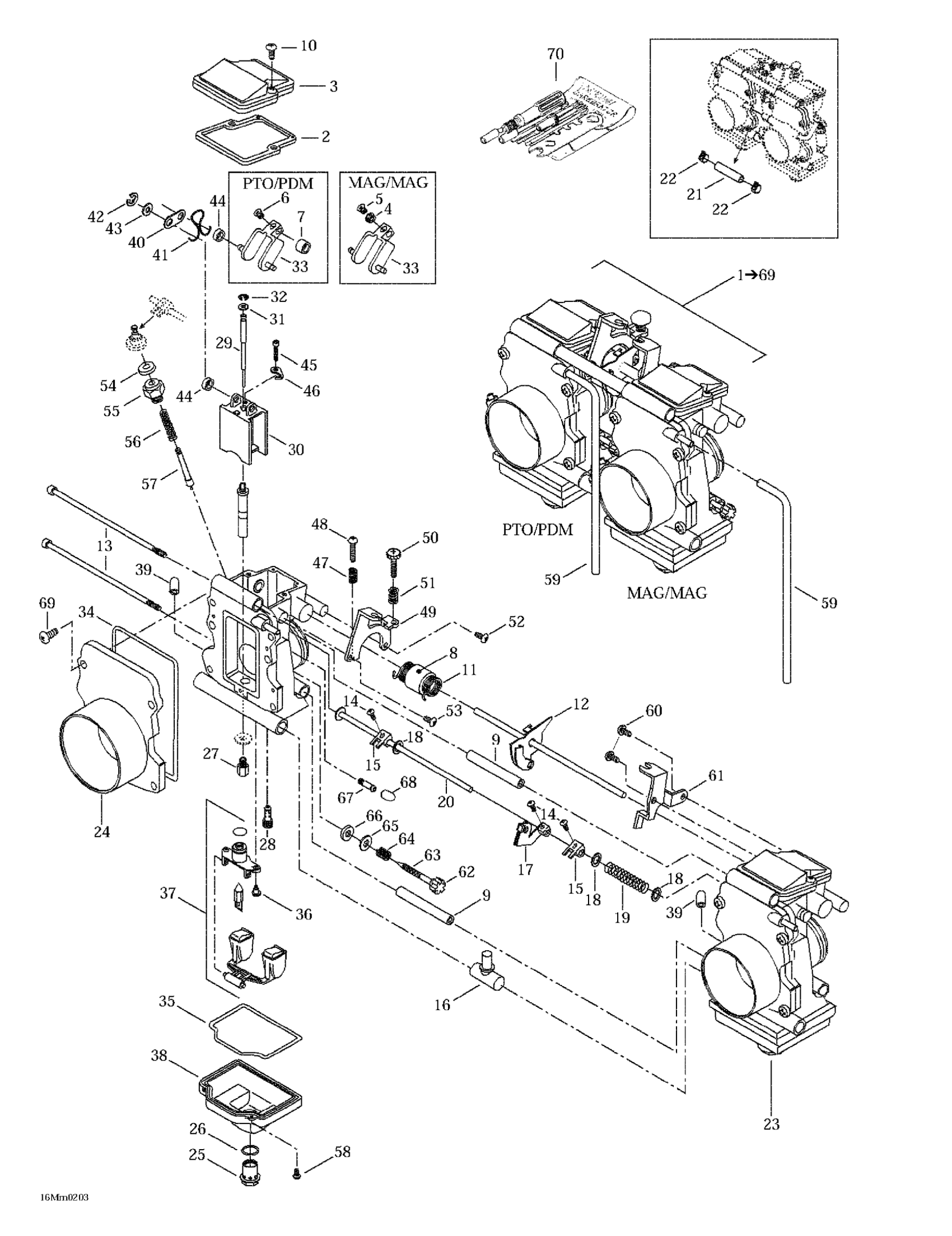

Ski-Doo Summit 600/700/800, 2002 02- Carburetors Diagram

Carburetor Kit TM 40-B157 | Summit 600.

Carburetor Kit TM 40-B163 | Summit 700.

Carburetor Kit TM 40-B175 | Summit 800.

Carburetor Kit TM 40 B-154 | Grand Touring 600.

Carburetor Kit TM 40 B-166 | Grand Touring 800.

Gasket

COVER - Call your local BRP dealership

Ring

Screw

Screw

Ring

Ring

RING - Call your local BRP dealership

Screw

Spring

Throttle Shaft

Screw

Screw

Lever

Nipple

Starter Lever

Packing

Spring

SHAFT - Call your local BRP dealership

Hose | Grand Touring 500.

Clip | Grand Touring 500.

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Funnel (PTO)

Funnel (MAG)

DRAIN SCREW - Call your local BRP dealership

O-Ring

Main Jet 500 | 600

Main Jet 510N | 700

Main Jet 520N | 800 ADRENALINE & RENEGADE MX Z 800.

Pilot Jet 20 | 600

Pilot Jet 17.5

Needle J8-9Ghy01-58 | 600

NEEDLE J8-9ZLY03-58 - Call your local BRP dealership | 700

Needle J8-9zly02-58 | Grand Touring 800.

Piston Valve 2.0

Packing

E-Ring

Lever (PTO)

Lever (MAG)

O-Ring

O-Ring

Screw

Float

BODY FLOAT ASS'Y - Call your local BRP dealership

Cap

Plate

Clip

E-Ring

Washer

Ring

Screw

Plate

Spring

Screw

Bracket TM 40-98 (PTO)

Adjustment Screw

Spring

Screw

Screw

Cap

Guide Holder

Spring

Plunger Ass'y

Screw

HOSE - Call your local BRP dealership
