Description

Price

1

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

421000563

Unavailable

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

421000563

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

Ball Bearing 6206

420832590

$48.49

4

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

Oil Seal

420931795

$17.63

7

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

8

Ball Bearing 6207 | With drive pin

420832575

$52.99

9

Oil Seal

420931455

$35.99

10

Retaining Disk

420927710

$7.41

11

Oil Seal This part replaces 290831952.

420831952

$18.01

12

Woodruff Key

420246015

$3.17

13

Lock Washer, 22 mm

420945759

$1.90

14

Hex. Nut, M22 X 1.5

420842239

$17.53

15

Needle Bearing

420832445

$27.49

16

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

420889173

$169.99

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

420889174

$169.99

17

Semi-Trapez Ring, Standard

420815155

$51.99

Semi-Trapez Ring, 1st

420815156

$51.99

18

Piston Pin

420916412

$30.99

19

Piston Circlip

420845106

$3.93

20

Ball Bearing 6206

420832590

$48.49

21

Oil Seal | Included in gasket kit

420931940

$30.49

22

Central Gear, 15 Teeth

420834350

$104.99

23

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

420818665

Unavailable

24

Crankshaft This part replaces 420818693.

420818697

$255.49

25

Rod Repair Kit, MAG Side

420890973

$313.99

Rod Repair Kit, PTO Side

420890974

$313.99

26

Loctite 243, 10 ml

293800060

$21.49

27

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

28

Sealant Loctite 648

219703000

$45.99

29

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

30

Petamo Grease, GHY133N, 400 g

420899271

$67.99

31

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

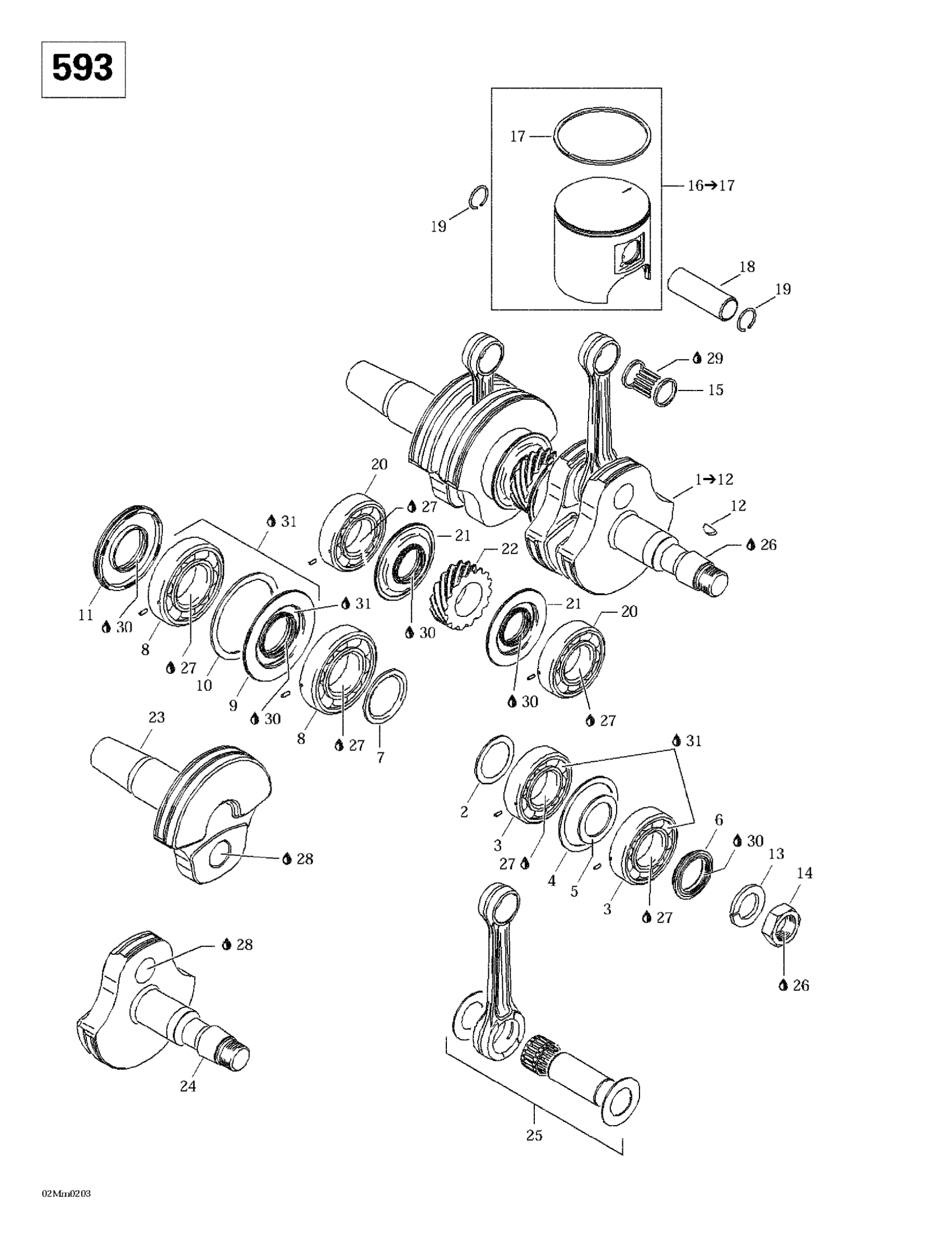

Ski-Doo Summit 600/700/800, 2002 01- Crankshaft And Pistons (593) Diagram

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

REBUILD-CRANKSHAFT 593 2000 - Call your local BRP dealership | Grand Touring 600. This part replaces 420888751.

DISTANCE RING - Call your local BRP dealership

Ball Bearing 6206

RETAINING DISK - Call your local BRP dealership

ADJUSTMENT WASHER - Call your local BRP dealership

Oil Seal

DISTANCE RING - Call your local BRP dealership

Ball Bearing 6207 | With drive pin

Oil Seal

Retaining Disk

Oil Seal This part replaces 290831952.

Woodruff Key

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Needle Bearing

Piston Ass’y, 75.88 mm, Standard | Includes 13 to 14

Piston Ass’y, 76.13 mm, Oversize | Includes 13 to 14

Semi-Trapez Ring, Standard

Semi-Trapez Ring, 1st

Piston Pin

Piston Circlip

Ball Bearing 6206

Oil Seal | Included in gasket kit

Central Gear, 15 Teeth

CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.

Crankshaft This part replaces 420818693.

Rod Repair Kit, MAG Side

Rod Repair Kit, PTO Side

Loctite 243, 10 ml

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

Sealant Loctite 648

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Petamo Grease, GHY133N, 400 g

Isoflex Grease, TOPAS NB52, 50 g
