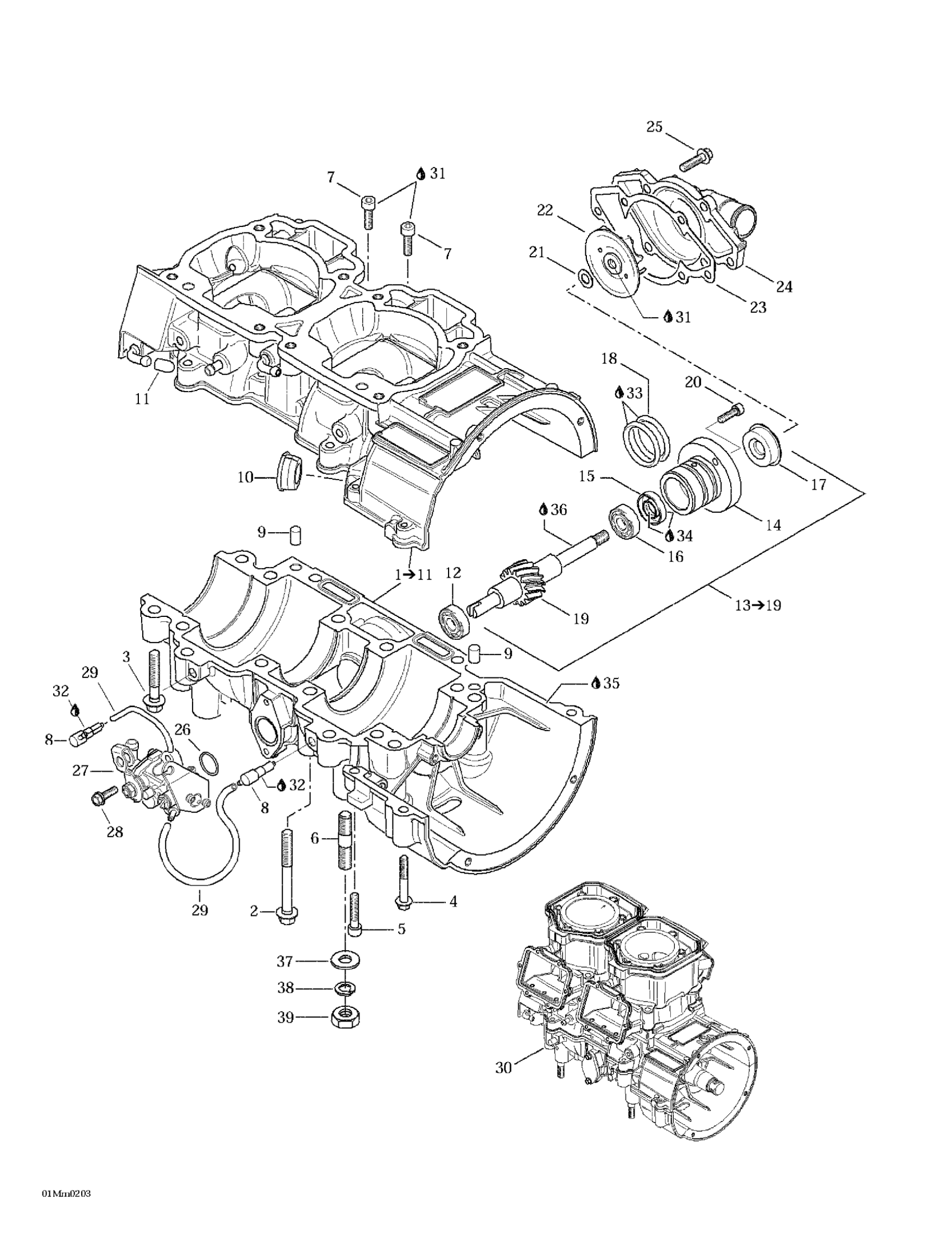

Ski-Doo Summit 600/700/800, 2002 Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 11. Grand Touring 500. Grand Touring 600.

420888763

Unavailable

1

Crankcase Ass'y | Grand Touring 700.

420889082

Unavailable

1

Crankcase Ass'y | Grand Touring 800.

420889084

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$1.88

3

Hex. Collar Screw M8 x 45

420640432

$1.88

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.15

5

Socket Head Screw M6 X 30

205063044

$1.63

6

Stud M10 X 23

420941644

Unavailable

7

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.43

8

Check Valve

420956511

$32.81

9

Center Pin 8 X 12

420632010

$3.52

10

Cable Grommet

420860965

$13.18

11

Cap

420960770

$3.88

12

Ball Bearing

420232100

$17.88

13

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$332.06

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Seal

420230195

$14.52

16

Ball Bearing

420232100

$17.88

17

Rotary Seal

420650371

$41.01

18

O-Ring

420950890

$4.15

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Allen Screw M5 x 16

420840514

$1.79

21

Thrust Washer

420227945

$3.75

22

Water Impeller

420222505

$17.13

23

Gasket This part replaces 420931810.

420931811

$12.87

24

Water Pump Housing

420922630

$57.43

25

Hex. Screw M6 X 25

420240034

$1.79

26

O-Ring

293300041

$8.09

27

Oil Pump Ass'y

420888780

$375.34

OIL PUMP ASSY - Call your local BRP dealership | 800 H.O. no DPM

420888770

Unavailable

28

Taptite Screw M5 X 16

420941928

Unavailable

29

Oil Hose 1500Mm Long

219704404

$15.64

30

SHORT BLOCK ASS'Y - Call your local BRP dealership | Grand Touring 600.

420059305

Unavailable

Short Block Ass'y | MX Z 700.

420069307

Unavailable

SHORT BLOCK ASS'Y - Call your local BRP dealership | MX Z 800.

420079304

Unavailable

31

Loctite 243, 10 ml

293800060

$21.49

32

Sealant Loctite 648

219703000

$41.01

33

Dow Corning 111, 150 g

413707000

$59.99

34

Petamo Grease, GHY133N, 400 g

420899271

$65.64

35

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

36

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

37

Flat Washer 10 mm

234001410

$1.12

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.27
