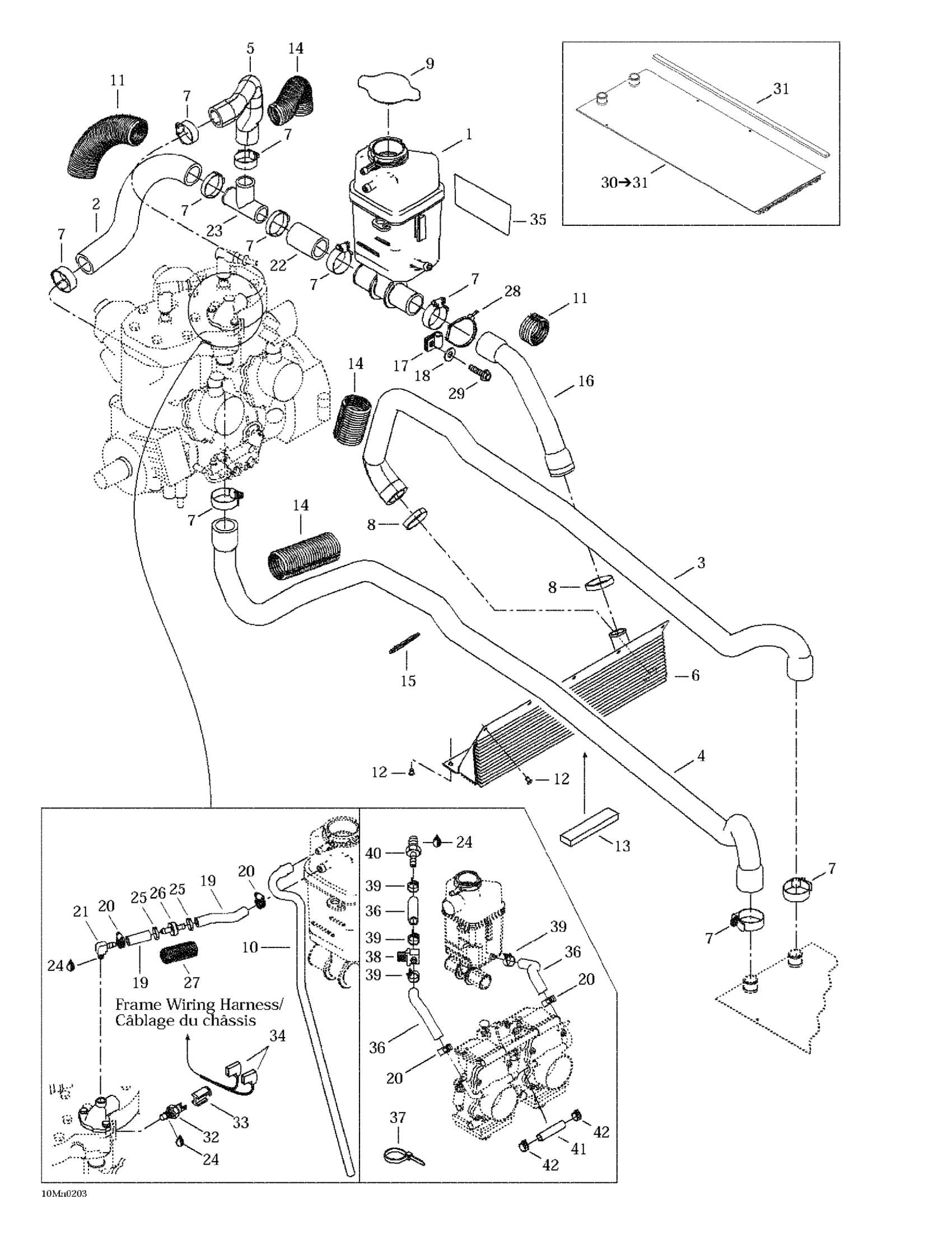

Ski-Doo Summit 600/700/800, 2002 01- Cooling System Diagram

#

Description
Price

1

Tank Coolant

509000167

$94.99

2

ENGINE INLET HOSE - Call your local BRP dealership

509000141

Unavailable

3

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

Unavailable

4

Radiator Outlet Hose

509000145

Unavailable

5

Hose

509000142

Unavailable

6

Front Radiator

509000150

Unavailable

7

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

8

Oetiker Gear Clamp 36.1MM

509000045

$8.29

9

Pressure Cap

509000187

$29.49

10

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

11

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

12

Pop Rivet 3/16"

390402200

$0.35

13

Neoprene Seal (1PAC=3M)

219704364

$27.49

14

Tubing 25 MM 1000MM Long

219704402

$15.99

15

Tie Wrap 368 mm

293750008

$1.04

16

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000144

Unavailable

17

Bracket

415052400

$4.39

18

Washer | DS 650 X

391301600

$0.48

19

Hose 8 mm

509000093

Unavailable

20

Tridon Gear Clamp

293650170

$1.99

21

Elbow Fitting 90°

293700020

Unavailable

22

Hose

509000143

Unavailable

23

T-Fitting

509000219

$15.89

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Crimp Clamp

293650053

$3.09

26

Check Valve

509000153

$19.99

27

Tubing 16 Mm 1000Mm Long

219704408

$7.49

28

Tie Rap

509000165

$2.11

29

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$2.00

30

Rear radiator | Includes 30 - 31.

518322903

Unavailable

Rear radiator | Summit 800.

518322907

Unavailable

31

Radiator Protector

518322360

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

32

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

33

Connector Plug | Grand Touring 500.

515175297

Unavailable

34

Female Terminal

409010300

$4.39

35

Reflective Sheet | Grand Touring 500.

514053399

Unavailable

36

Hose 8 mm

509000093

Unavailable

37

Tie-Rap 180 mm

414115200

$0.11

38

Valve 5/16” | Grand Touring 500.

512059324

$44.99

39

Spring Clamp

414655700

$0.72

40

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

41

Hose | Grand Touring 500.

404161956

$19.49

42

Clip | Grand Touring 500.

404161957

$17.08
