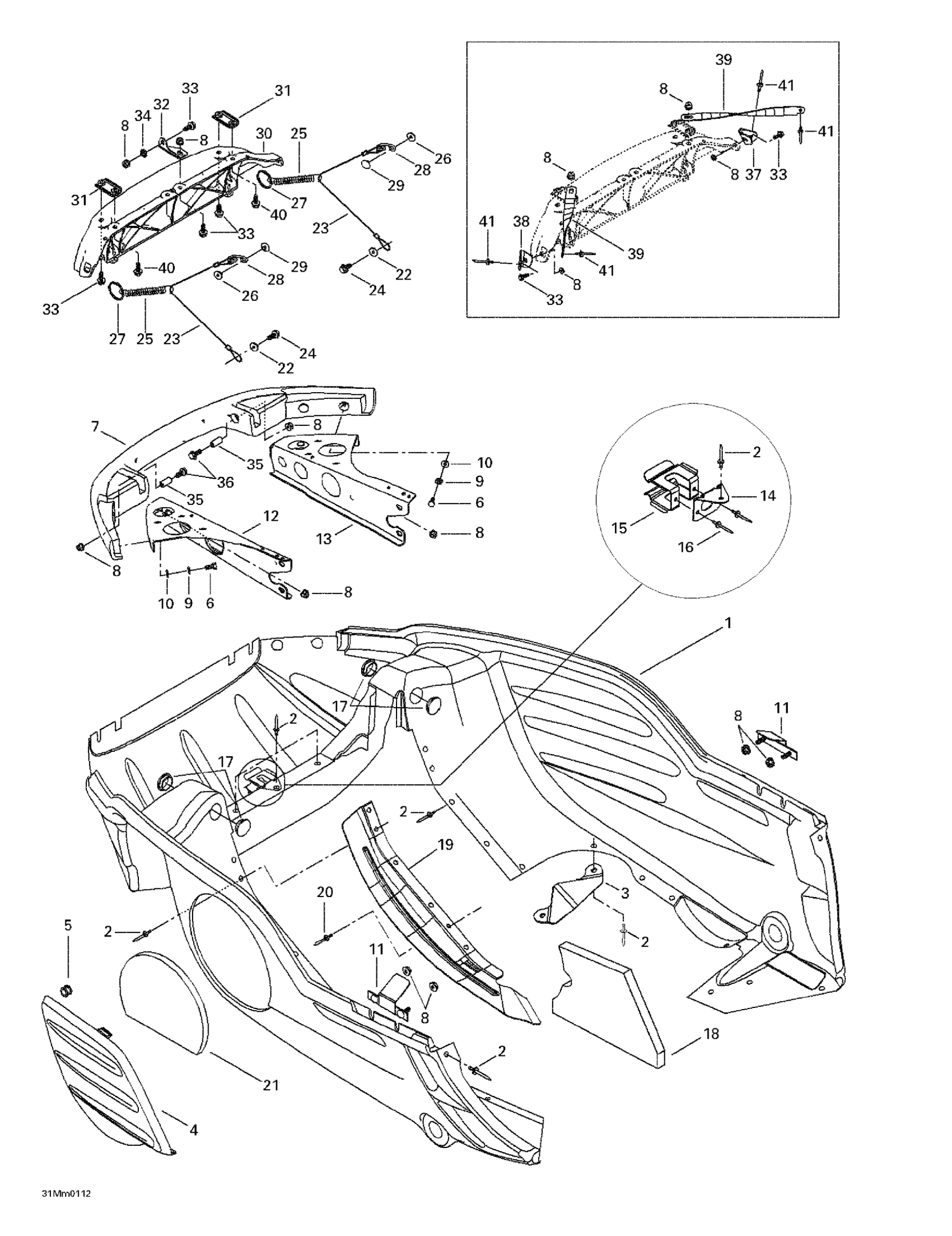

Ski-Doo Summit 600/700/800, 2001 Bottom Pan Diagram
#
1
2000 Yellow, Bottom Pan
502006588
Unavailable
Deep Black, Bottom Pan
502006589
Unavailable
Bottom Pan (Red) B-215 | MX-Z 600. MX-Z 700.
502006627
Unavailable
2
Pop Rivet 3/16"
390906800
Unavailable
Pop Rivet 3/16"
390906800
Unavailable
Pop Rivet 3/16"
390906800
Unavailable
3
Snow Deflector
502006563
Unavailable
Snow Deflector | RENEGADE MX Z 600. MX Z 800.
502006637
Unavailable
4
Bottom Pan Door | B-190 YELLOW
502006511
Unavailable
Bottom Pan Door (Red) B-215 | MX-Z 600. MX-Z 700.
502006628
Unavailable
7
Bumper
502006535
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Bracket
502006500
Unavailable
13
RH Support
502006596
Unavailable
14
Belt Support
502006599
Unavailable
15
Bracket
517281905
Unavailable
16
Pop Rivet 3/16"
390402400
Unavailable
18
Bottom Foam
502006558
Unavailable
19
Bottom Pan Protector | 700 / WITH GRILL
502006593
Unavailable
21
Bottom Pan Door Foam
502006559
Unavailable
22
Washer | DS 650 X
391301600
Unavailable
23
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Spring
415043300
Unavailable
26
Washer
517124300
Unavailable
27
RING - Call your local BRP dealership
415058300
Unavailable
28
Bracket
517262800
Unavailable
30
Hinge
517302631
Unavailable
31
HINGE SIDE PLATE - Call your local BRP dealership
517302176
Unavailable
32
Hinge Center Plate
517302045
Unavailable
34
Lock Washer Serrated M6
250200041
Unavailable
35
BUSHING - Call your local BRP dealership
517302179
Unavailable
37
RH Corner Support
517302254
Unavailable
38
LH Corner Support
517302255
Unavailable
39
Hood Clamp
517302256
Unavailable
40
Hex. Flange Screw M6 X 25
207662544
Unavailable
41
Pop Rivet 3/16"
390406500
