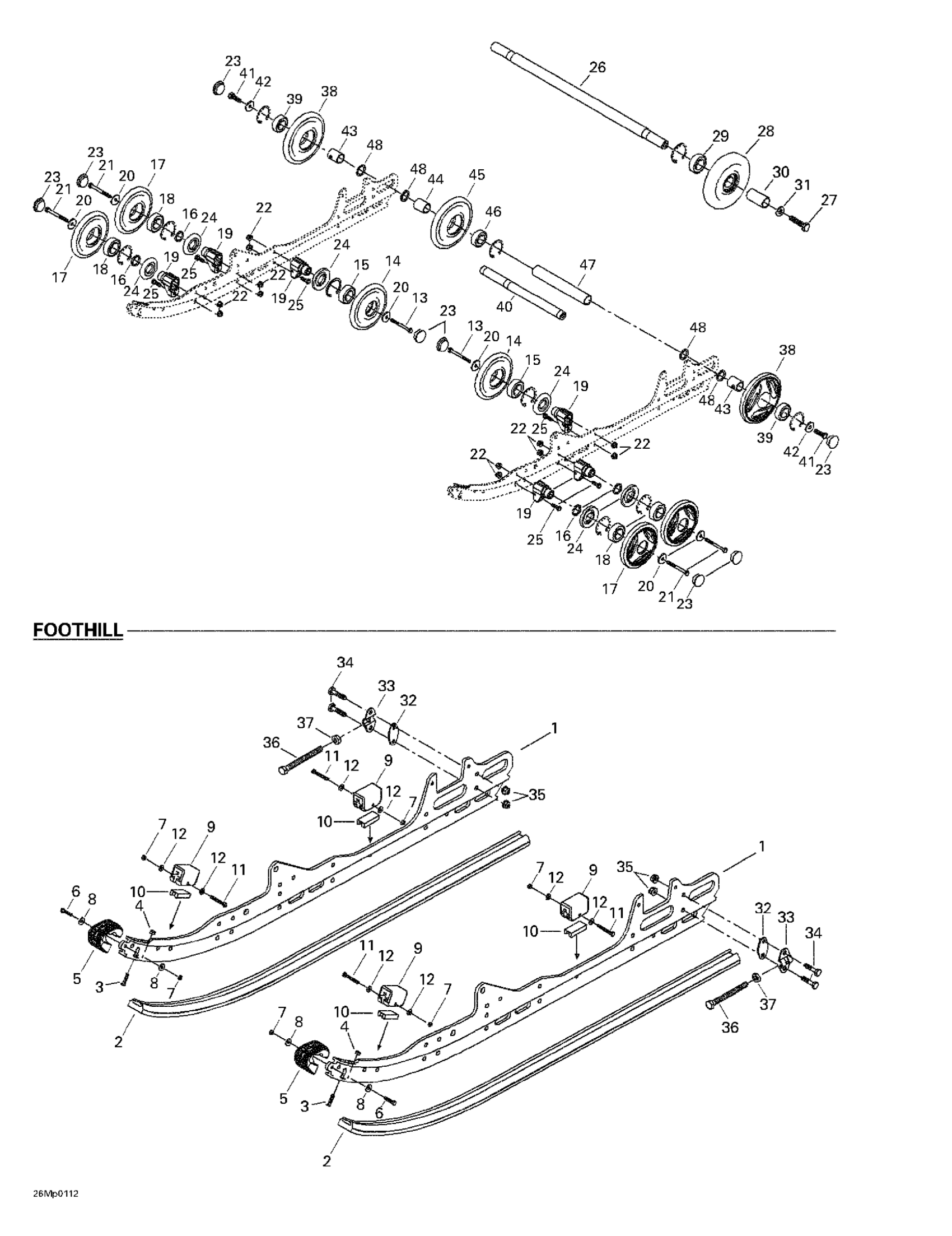

Ski-Doo Summit 600/700/800, 2001 Rear Suspension (foothill) Diagram

#

Description
Price

1

Runner

503189415

Unavailable

2

Slide Shoe

605355362

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

Unavailable

8

Washer | DS 650 X

391301600

Unavailable

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$5.25

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Hex. Screw M8 X 80

207088044

Unavailable

14

Wheel 135

503191029

Unavailable

15

Ball Bearing

293350115

Unavailable

16

WASHER - Call your local BRP dealership

503173700

Unavailable

17

Wheel 135, Yellow

503190785

Unavailable

18

Ball Bearing

293350115

Unavailable

19

SUPPORT - Call your local BRP dealership

503190389

Unavailable

20

Washer

503183100

$3.08

21

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Wheel Cap

570063600

Unavailable

24

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

25

Hex. Screw M8 X 25

207182544

Unavailable

26

Wheel Support Axle

503153600

Unavailable

27

HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership

207383044

Unavailable

28

Idler Wheel | Includes 48 - 49.

572043500

Unavailable

29

Ball Bearing

405404600

$24.58

30

Spacer

572048300

Unavailable

31

Washer

503189157

$3.20

32

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

33

Tensioner

503155300

Unavailable

34

Hex. Screw M6 X 30

207063044

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

37

Elastic Locking Nut M10 X 1.5

233601416

$1.68

38

Wheel 165 mm Yellow

503190817

Unavailable

39

Ball Bearing

293350115

Unavailable

40

Rear Axle

503167900

$129.20

41

Hex. Screw With Nylon

250000019

Unavailable

42

Washer

503183300

$5.68

43

Outer Spacer

503189809

$15.35

44

Inner Spacer

503182900

$10.18

45

Wheel 165" | Includes 670 to 670b

503194127

$49.97

46

Ball Bearing

293350115

Unavailable

47

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

48

Washer

503180400

$3.37
