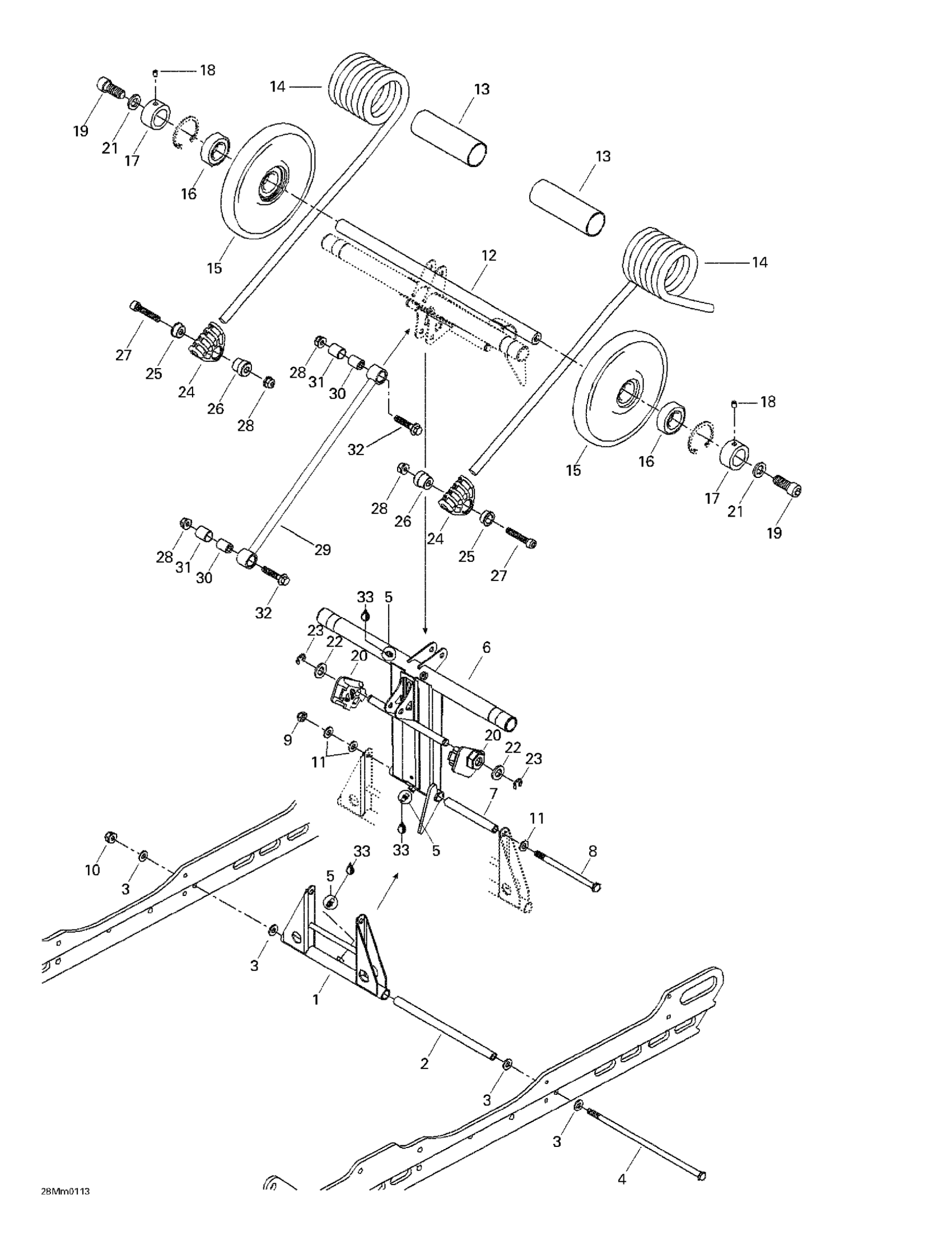

Ski-Doo Summit 600/700/800, 2001 Rear Arm Diagram

#

Description
Price

1

Pivot Welded Arm

503169200

Unavailable

2

Lower Axle Pivot

503154703

Unavailable

3

Washer

503189157

$3.10

4

Bolt M8 X 248mm

503192440

$29.07

5

Grease Fitting

408200700

$3.21

6

Rear Arm

503189557

Unavailable

7

Upper Axle, Pivot Arm

503144300

$10.84

8

Bolt M8, Short

732601197

$14.61

9

Hex. Elastic Stop Nut M8

232581414

$0.54

10

Hex. Flange Elastic Nut M8

233281414

$1.31

11

Flat Washer 8 mm

234081410

$0.79

12

Rear Cross Shaft

503168700

Unavailable

13

BUSHING - Call your local BRP dealership

572086000

Unavailable

14

RH Spring (Europe) | MX Z 380 F. MX Z 550 F.

503189627

Unavailable

LH SPRING (EUROPE) - Call your local BRP dealership | MX Z 380 F. MX Z 550 F.

503189629

Unavailable

RH SPRING - Call your local BRP dealership

503189522

Unavailable

LH SPRING - Call your local BRP dealership

503189524

Unavailable

15

Wheel 155 Ass'y | Includes 15 - 16.

503189658

Unavailable

16

Ball Bearing

405404600

$23.85

17

Retaining Ring

503168800

$12.27

18

Socket Set Screw M6 X 8

206260844

$1.43

19

Hex. Screw M10 x 35 (Scotch Grip)

207303544

$1.60

20

LH Cam Adjuster

503189284

Unavailable

RH Cam Adjuster

503189283

Unavailable

21

Washer

732900049

$0.55

22

Flat Washer 12 mm

234021410

$0.66

23

E-Circlip

293370013

$0.60

24

Spring Support

503189657

$9.90

25

Spring Guide Axle

503188934

Unavailable

26

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

27

Socket Head Screw M8 X 45

205084544

$0.85

28

Hex. Flange Elastic Nut M8

233281414

$1.31

29

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

30

BUSHING - Call your local BRP dealership

503189133

Unavailable

31

Cushion

503189266

Unavailable

32

Hex. Flange Screw M8 X 40

207684044

$1.43

33

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
