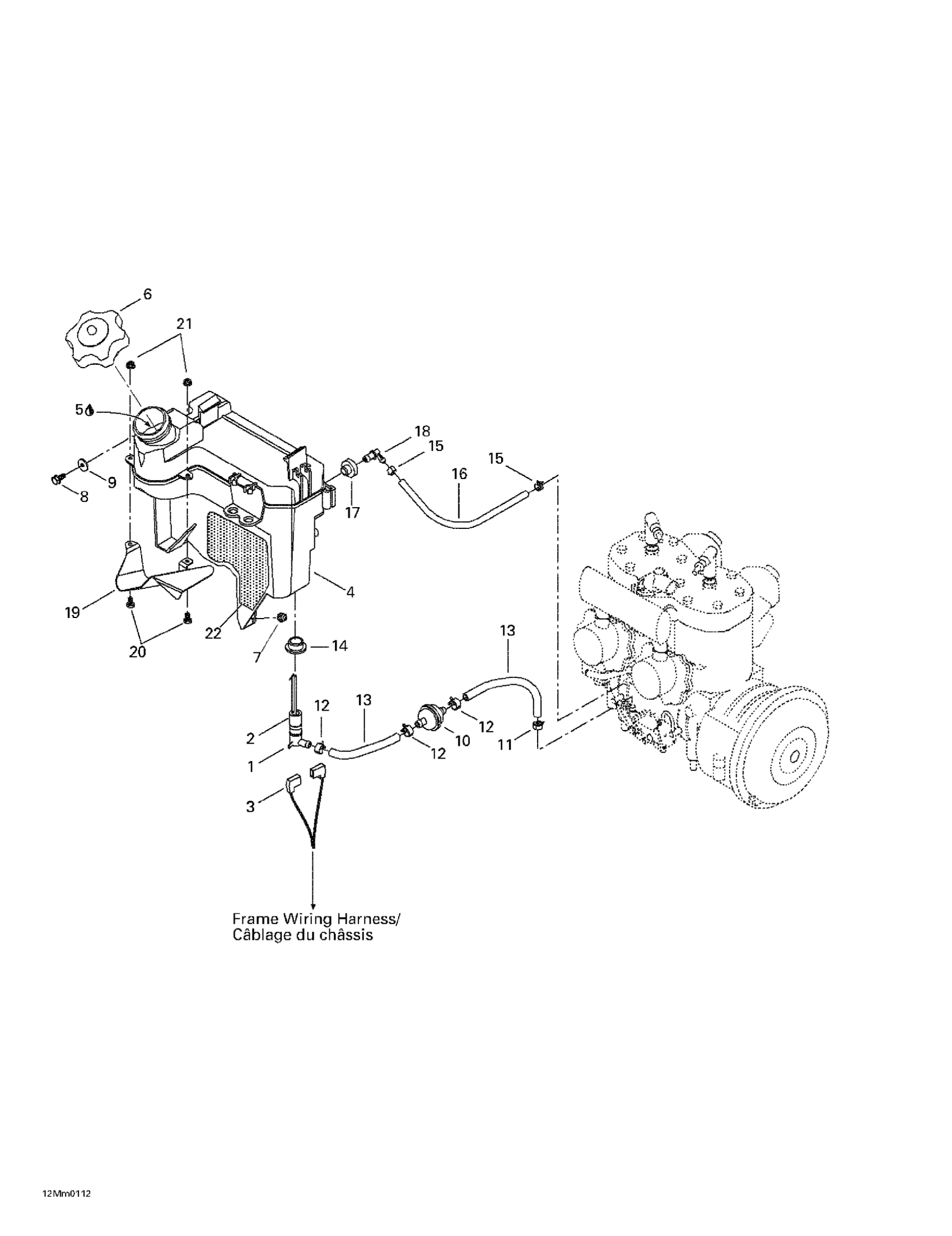

Ski-Doo Summit 600/700/800, 2001 Oil Tank Diagram

#

Description
Price

1

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

2

Float

414681900

Unavailable

3

Female Terminal

409010300

$4.12

4

Oil Tank

519000037

Unavailable

5

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

6

Cap

519000017

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

8

Hex. Flange Screw M6 X 16

210261650

$1.22

9

Lock Washer Serrated M6

250200041

Unavailable

10

Filter

414536500

$3.25

11

Spring Clamp

414420700

Unavailable

12

Spring Clamp

414415200

$0.83

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

14

Insulating Ring

570023000

Unavailable

15

Spring Clamp

414554800

$0.83

16

Polyurethane Hose 10000Mm Long

219704410

Unavailable

17

Grommet

709200285

$8.38

18

Male Connector

414580700

Unavailable

19

Deflector

519000018

Unavailable

20

Hex. Screw M5 X 12

207151244

Unavailable

21

Hex. Flange Elastic Nut M5

233251414

Unavailable

22

Reflective Sheet

519000023

Unavailable
