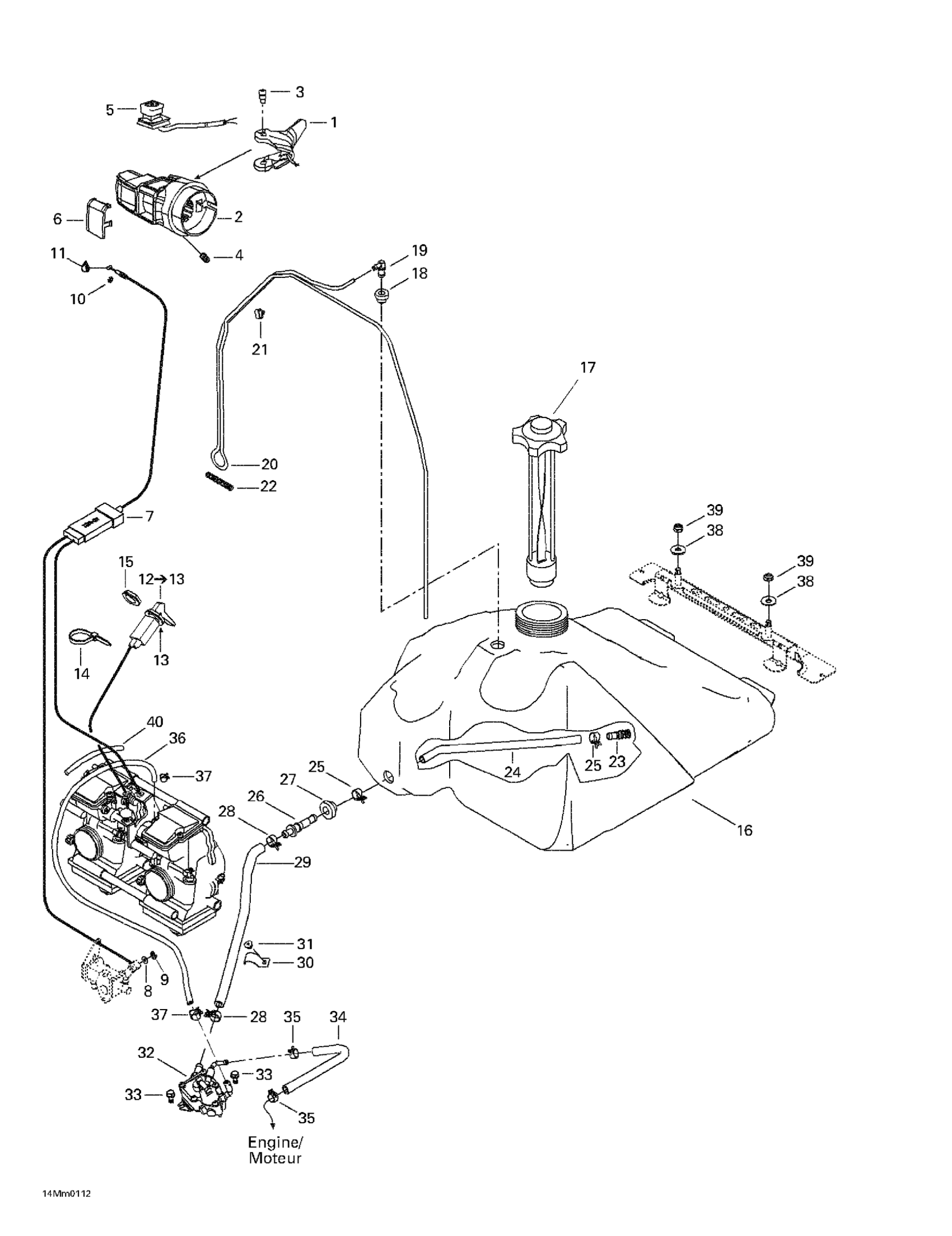

Ski-Doo Summit 600/700/800, 2001 Fuel System Diagram
#
Description
Price
1
Throttle Handle
512059481
Unavailable
2
THROTTLE HOUSING - Call your local BRP dealership
512059763
Unavailable
5
Kill Switch
515175410
Unavailable
6
Switch Cover
572100901
Unavailable
7
Throttle Cable | Formula Deluxe 600. Formula Deluxe 700.
512059388
Unavailable
10
Circlip
414274500
Unavailable
11
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
12
CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42
512059110
Unavailable
13
Lock Washer, Interior Teeth
394103300
Unavailable
15
PLASTIC NUT - Call your local BRP dealership
512059094
Unavailable
16
Fuel Tank
513032987
Unavailable
20
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
21
TUBE CLAMP - Call your local BRP dealership
513032923
Unavailable
22
SPRING - Call your local BRP dealership
414818200
Unavailable
25
Norma Spring Clamp
513033010
Unavailable
26
Male Connector
414872700
Unavailable
27
Grommet | Europe
707800347
Unavailable
28
UNIVERSAL SPRING CLAMP - Call your local BRP dealership
513032979
Unavailable
31
Pop Rivet 3/16"
390406500
Unavailable
32
Fuel Pump | MANUAL STARTER
403901806
Unavailable
Fuel Pump | MANUAL STARTER
403901806
Unavailable
33
HEX. SCREW M6 X 12 - Call your local BRP dealership
210361280
Unavailable
34
Hose
219704549
Unavailable
36
Formed Tube
513032986
Unavailable
37
Spring Clamp
414420700
Unavailable
39
Hex. Elastic Stop Nut M8
232581414
Unavailable
40
Tubing 10 MM 1000MM Long
219704407
Unavailable
