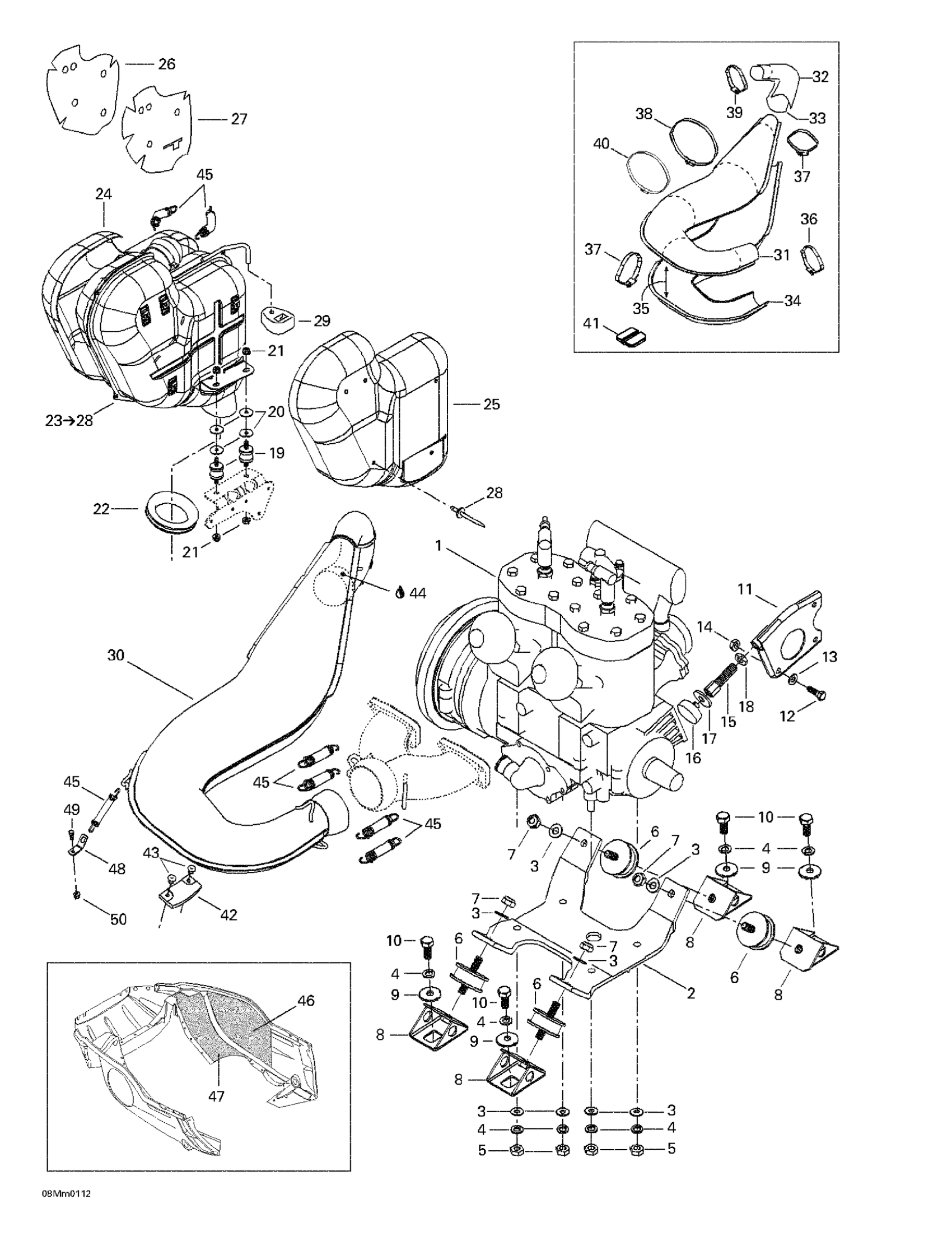

Ski-Doo Summit 600/700/800, 2001 Engine Support And Muffler Diagram

#

Description
Price

1

<<593>> Engine | MX-Z 600.

400509725

Unavailable

<<693>> Engine | MX-Z 700.

400604021

Unavailable

<<793>> Engine | Summit 800.

400702605

Unavailable

2

Engine Support

512058000

Unavailable

Engine Support

512059173

Unavailable

3

Flat Washer 10 mm

234001410

Unavailable

4

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

5

Hex. Nut M10 X 1.5

232006414

$1.11

6

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

7

Elastic Locking Nut M10 X 1.5

233601416

$1.68

8

Engine Support

512050900

Unavailable

9

Lock Washer

512056700

Unavailable

10

Hex. Screw M10 X 25

207102544

Unavailable

11

Support Plate

512058500

Unavailable

12

Hex. Screw M8 X 20

207182044

$0.61

13

Flat Washer 8 mm

234081410

Unavailable

14

Hex. Elastic Stop Nut M8

232581414

Unavailable

15

STOPPER SCREW - Call your local BRP dealership

512058800

Unavailable

16

Stopper

512059056

Unavailable

17

WASHER - Call your local BRP dealership

512059057

Unavailable

18

Nut Hexagonal RH.

232026414

Unavailable

19

Rubber Mount

514052994

Unavailable

20

Insulated Washer

514052891

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

Exhaust Grommet

514053064

Unavailable

23

Muffler Ass'y | Formula Deluxe 600.

514053212

Unavailable

Muffler Ass'y | Formula Deluxe 700.

514053161

Unavailable

Muffler Ass'y | Includes 23 - 28.

514053178

Unavailable

24

RH Heat Shield | 600

514053160

Unavailable

25

LH Heat Shield | 600

514052733

Unavailable

26

RH Insulating Wool | 600

514052734

Unavailable

27

LH Insulating Wool | 600

514052844

Unavailable

28

Pop Rivet 3/16”

390910000

$0.48

29

RUBBER BUMPER - Call your local BRP dealership

514052704

$10.74

30

Tuned Pipe Ass'y | Includes 30 - 41. Formula Deluxe 600.

514053198

Unavailable

30

Tuned Pipe Ass'y | Includes 30 - 41. Formula Deluxe 700.

514053171

Unavailable

30

Tuned Pipe Ass'y | Includes 30 - 41.

514053170

Unavailable

31

Upper Enveloppe | 600

514053192

Unavailable

32

REAR UPPER ENVELOPE - Call your local BRP dealership | 600

514053193

$23.05

33

REAR LOWER ENVELOPE - Call your local BRP dealership | 600

514053196

$23.05

34

Rear Lower Enveloppe | Formula Deluxe 600. Formula Deluxe 700.

514053194

Unavailable

35

INSULATING WOOL - Call your local BRP dealership | 600

514053285

$16.89

Insulating Wool | Grand Touring 600.

514053197

Unavailable

36

Norma Gear Clamp

514053074

Unavailable

37

NORMA GEAR CLAMP - Call your local BRP dealership | Grand Touring 600. Grand Touring 700. Grand Touring 800.

514053224

Unavailable

38

Norma Gear Clamp

514052735

Unavailable

39

Norma Gear Clamp

293650090

$4.38

40

Norma Gear Clamp | Grand Touring 600.

514052902

Unavailable

41

Rubber Pad | 600

514053180

Unavailable

42

Rubber Pad

570044100

Unavailable

43

Pop Rivet 3/16"

390406500

Unavailable

44

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

45

Spring

415107100

$6.20

46

Reflective Sheet

514052718

Unavailable

47

Reflective Sheet

514052719

Unavailable

48

Spring Bracket

514053026

Unavailable

49

Hex. Screw M5 X 12

207151244

Unavailable

50

Hex. Flange Elastic Nut M5

233251414

Unavailable
