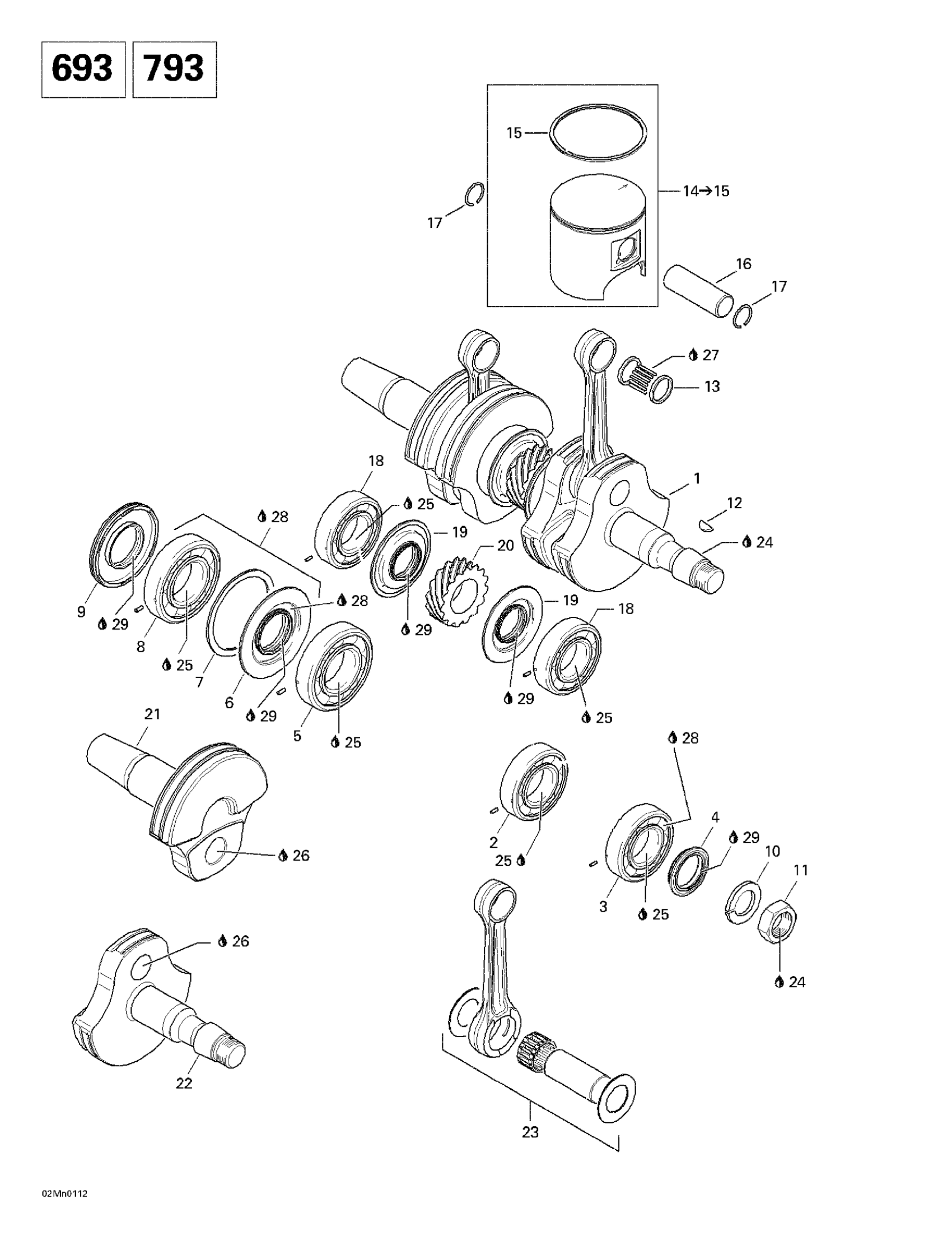

Ski-Doo Summit 600/700/800, 2001 Crankshaft And Pistons (693, 793) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 9. Formula Deluxe 700.

420888285

Unavailable

1

Crankshaft Ass'y

420888401

Unavailable

2

Ball Bearing Sealed, 6207

420832673

$96.89

3

Ball Bearing 6207 | With drive pin

420832575

Unavailable

4

Oil Seal

420931795

$16.89

5

Ball Bearing 6208 | With drive pin

420832600

$76.12

Bearing_Ball - Call your local BRP dealership | MX Z 800.

420832601

Unavailable

6

Oil Seal

420931910

$36.89

7

Washer

420926190

Unavailable

8

Ball Bearing 6208 | With drive pin

420832600

$76.12

Bearing_Ball - Call your local BRP dealership | MX Z 800.

420832601

Unavailable

9

Oil Seal

420931280

Unavailable

Oil Seal | Included in gasket kit

420931284

Unavailable

10

Lock Washer, 22 mm

420945759

Unavailable

11

Hex. Nut, M22 X 1.5

420842239

Unavailable

12

Woodruff Key

420246015

Unavailable

13

Needle Bearing

420832445

Unavailable

14

Piston Ass'y (1 Ring 77.88 mm) | Includes 14 - 15. Formula Deluxe 700.

420888296

Unavailable

Piston 81 | Includes 13 to 14 This part replaces 420889456.

420889457

Unavailable

15

SEMI-TRAPEZ RING - Call your local BRP dealership | Formula Deluxe 700.

420815225

Unavailable

SEMI-TRAPEZ RING - Call your local BRP dealership

420815360

Unavailable

16

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

17

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

420845102

Unavailable

Piston Circlip

420845106

Unavailable

18

Ball Bearing 6207 | With drive pin

420832575

Unavailable

19

Oil Seal

420931455

Unavailable

20

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

21

CRANKSHAFT, PTO SIDE - Call your local BRP dealership

420818708

Unavailable

CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.

420819030

Unavailable

22

CRANKSHAFT (MAG) - Call your local BRP dealership | Grand Touring 700.

420818738

Unavailable

Crankshaft, Mag

420819061

Unavailable

23

ROD REPAIR KIT (MAG) - Call your local BRP dealership | Grand Touring 700.

420888288

Unavailable

Rod Repair Kit (MAG side)

420888403

Unavailable

ROD REPAIR KIT (PTO) - Call your local BRP dealership | Grand Touring 700.

420888289

Unavailable

Rod Repair Kit (PTO side)

420888404

Unavailable

24

Loctite 243, 10 ml

293800060

$20.77

25

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

26

Sealant Loctite 648

219703000

Unavailable

27

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

28

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable

29

Petamo Grease, GHY133N, 400 g

420899271

Unavailable
