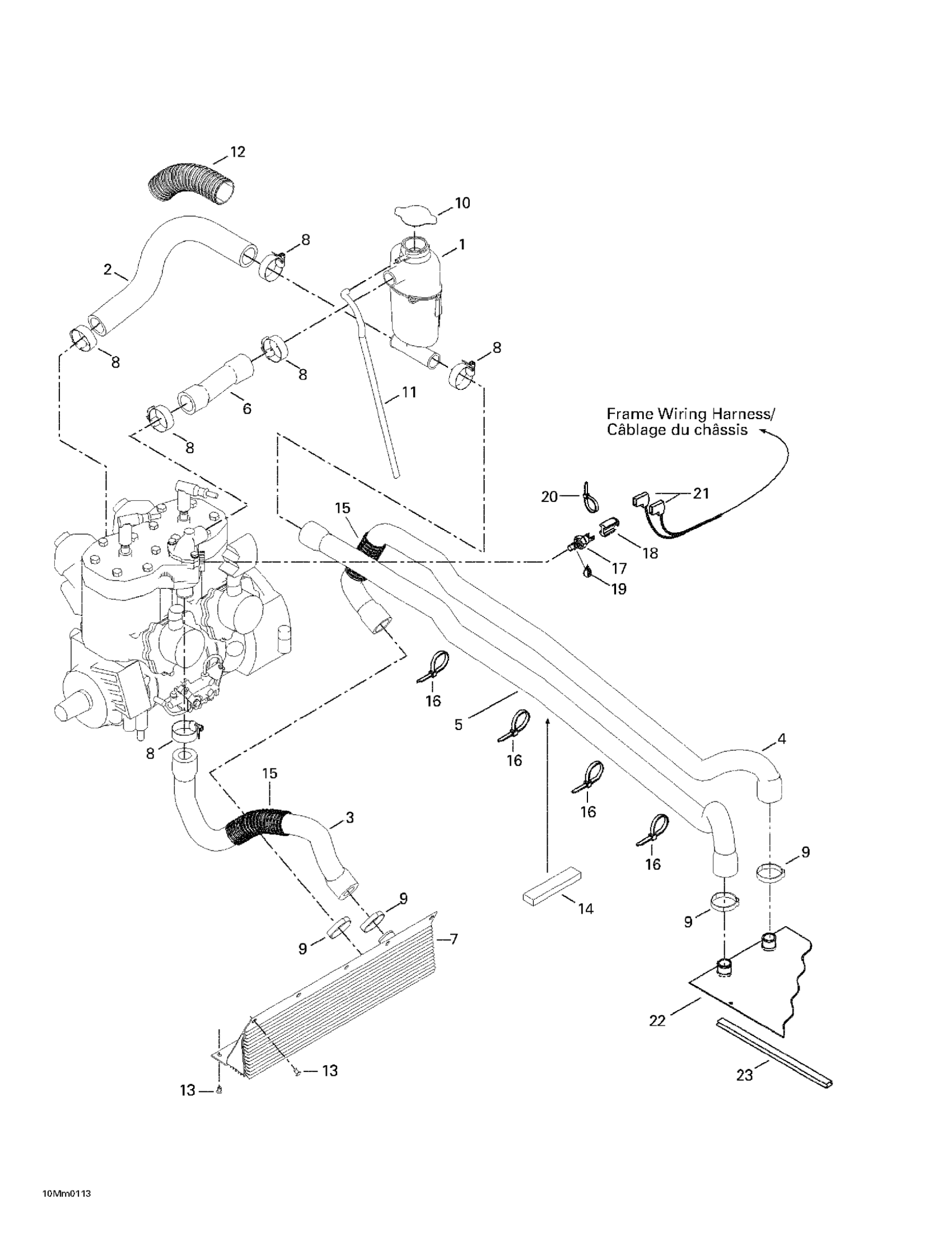

Ski-Doo Summit 600/700/800, 2001 Cooling System Diagram
#
Description
Price
1
Tank Coolant | Grand Touring 500. This part replaces 509000133.
509000134
Unavailable
2
Engine Inlet Hose
509000001
Unavailable
3
ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000046
Unavailable
4
RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000003
Unavailable
5
Radiator Outlet Hose | Grand Touring 500.
509000004
Unavailable
6
Deviation Hose | Grand Touring 500.
509000112
Unavailable
7
Front Radiator
509000070
Unavailable
8
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
9
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
10
Pressure Cap
509000187
Unavailable
11
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
12
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
15
Tubing 25 MM 1000MM Long
219704402
Unavailable
17
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
18
Connector Plug | Grand Touring 500.
515175297
Unavailable
19
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
20
Tie Wrap 142 mm
293750002
Unavailable
22
Rear Radiator (H.M., H.M.X) | Summit 700. Summit 800.
518322413
Unavailable
22
Rear Radiator (STD, X) | Includes 22 - 23.
518322354
Unavailable
23
Radiator Protector
518322360
Unavailable
22
Rear Radiator | Includes 28 - 29.
517296310
Unavailable
23
Radiator Protector | Grand Touring 500.
518321656
Unavailable
