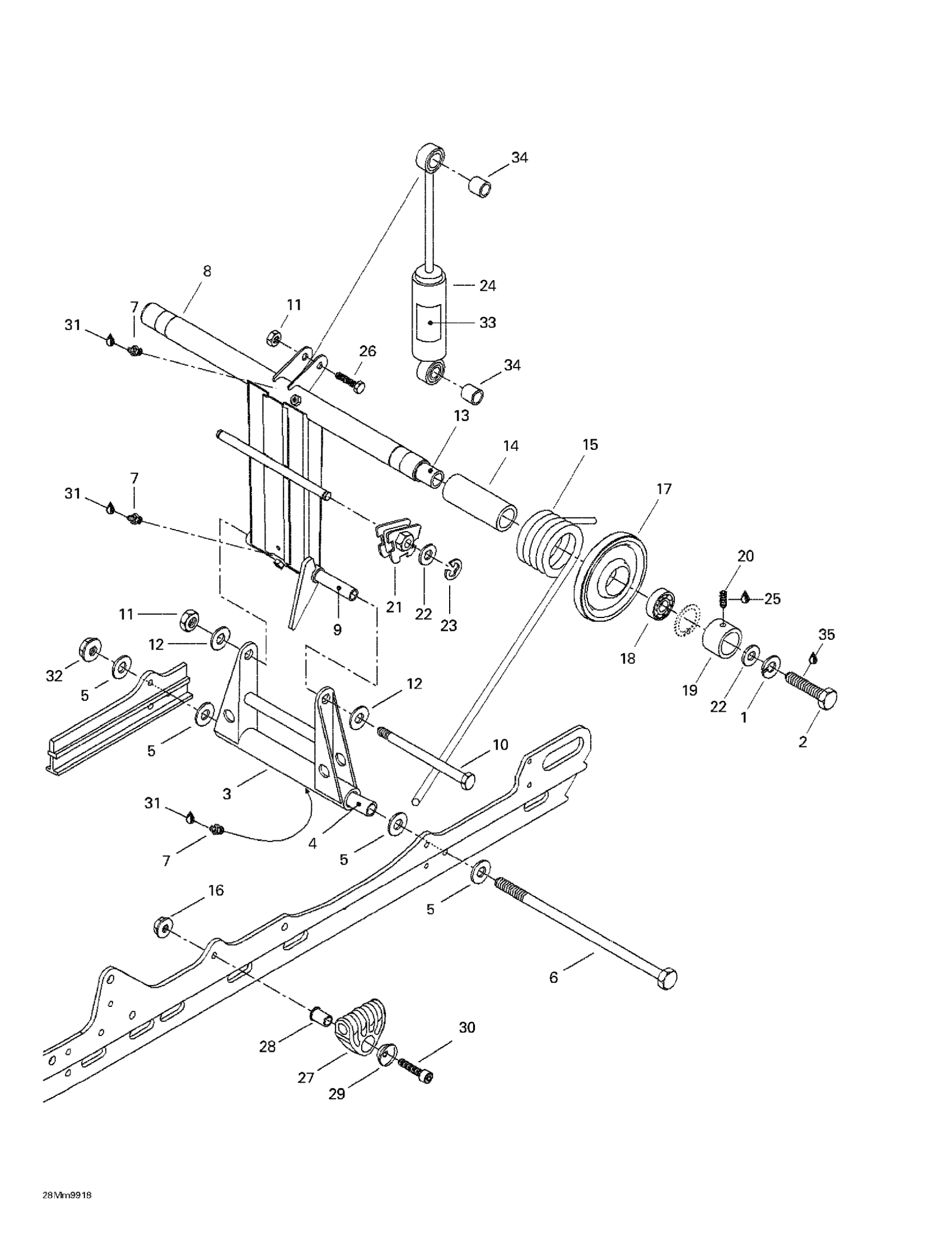

Ski-Doo Summit 600, 1999 08- Rear Arm, Rear Suspension Diagram

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

Hex. Screw M10 X 35

207103544

$1.58

Pivot Welded Arm

503169200

Unavailable

Lower Axle Pivot

503154703

Unavailable

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

Bolt M8 X 248mm

503192440

$30.49

Grease Fitting

408200700

$3.49

Rear Arm

503170700

Unavailable

Upper Axle, Pivot Arm

503144300

$11.65

Bolt M8, Short

732601197

$15.36

Hex. Elastic Stop Nut M8

232581414

$0.56

Flat Washer 8 mm

234081410

$0.83

Rear Cross Shaft

503168700

Unavailable

BUSHING - Call your local BRP dealership

572086000

Unavailable

RH SPRING - Call your local BRP dealership

414943500

Unavailable

LH SPRING - Call your local BRP dealership

414943600

Unavailable

Hex. Flange Elastic Nut M8

233281414

$1.47

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

Ball Bearing

293350115

$12.11

Retaining Ring

503168800

$14.99

Socket Set Screw M6 X 8

206260844

$1.48

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

Flat Washer 10 mm

234001410

$1.26

e Circlip

371907100

Unavailable

Rear Shock

503189182

Unavailable

Loctite 271, 10 ml

293800005

$26.99

Hex. Screw M8 X 40

207084044

$1.15

Spring Support

503189657

$11.99

Spring Guide Axle

503188934

Unavailable

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

Socket Head Screw M8 X 45

205084544

$0.90

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

Hex. Flange Elastic Nut M8

233281414

$1.47

HPG Decal (Europe)

516000182

Unavailable

Bushing

414936000

$13.99

Loctite 243, 10 ml

293800060

$21.49
