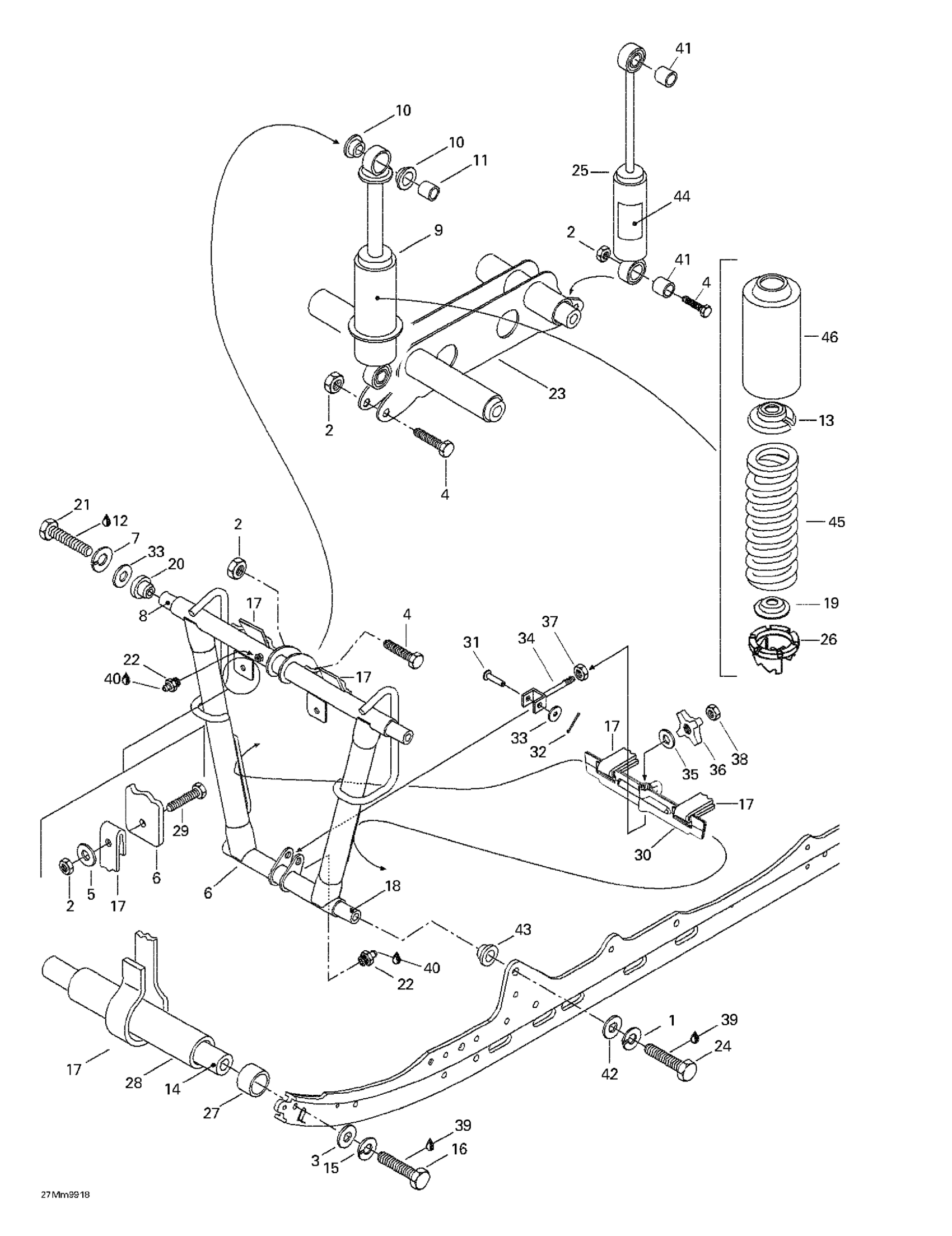

Ski-Doo Summit 600, 1999 08- Front Arm, Rear Suspension Diagram

#

Description
Price

1

Lock Washer 12 mm

224721218

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Flat Washer 8 mm

234081410

$0.83

4

Hex. Screw M8 X 40

207084044

$1.15

5

Washer

503183100

$3.17

6

Front Arm

503189068

Unavailable

7

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Center Shock | Includes 9 - 11.

503188914

Unavailable

10

Bushing

503189364

Unavailable

11

Bushing

503189363

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap

503189208

Unavailable

18

Shaft

503182000

Unavailable

19

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

20

Bushing

503189324

$14.15

21

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

22

Grease Fitting

408200700

$3.49

23

Shock Support | Summit 700 HM.

503173300

Unavailable

24

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

25

Rear Shock

503189182

Unavailable

26

Cam

503169000

Unavailable

27

Spacer

572080600

Unavailable

28

Plastic Spacer

572059300

Unavailable

29

Hex. Screw M8 X 25

207182544

$0.90

30

Belt Bracket

503183600

Unavailable

31

Clevis Pin

415016200

Unavailable

32

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

33

Flat Washer 10 mm

234001410

$1.26

34

Stopper

503169300

Unavailable

35

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

36

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

37

Hex. Nut M10 X 1.5

232006414

$1.37

38

Elastic Locking Nut M10 X 1.5

233601416

$1.69

39

Loctite 271, 10 ml

293800005

$26.99

40

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

41

Bushing

414936000

$13.99

42

Flat Washer 12 mm

234021410

$0.72

43

Cushion

503188940

Unavailable

44

HPG Decal (Europe)

516000182

Unavailable

45

SPRING - Call your local BRP dealership

415070100

Unavailable

46

Protector

503193663

$37.99
