Description

Price

1

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

512059039

Unavailable

2

Plastic Clip, Spark Plug Wire

410914600

$5.61

3

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

4

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

296000365

Unavailable

5

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

6

Housing Support

515175283

$9.19

7

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

8

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

9

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

10

Calibration Module

515175366

Unavailable

11

Electrical Box Decal

516000245

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

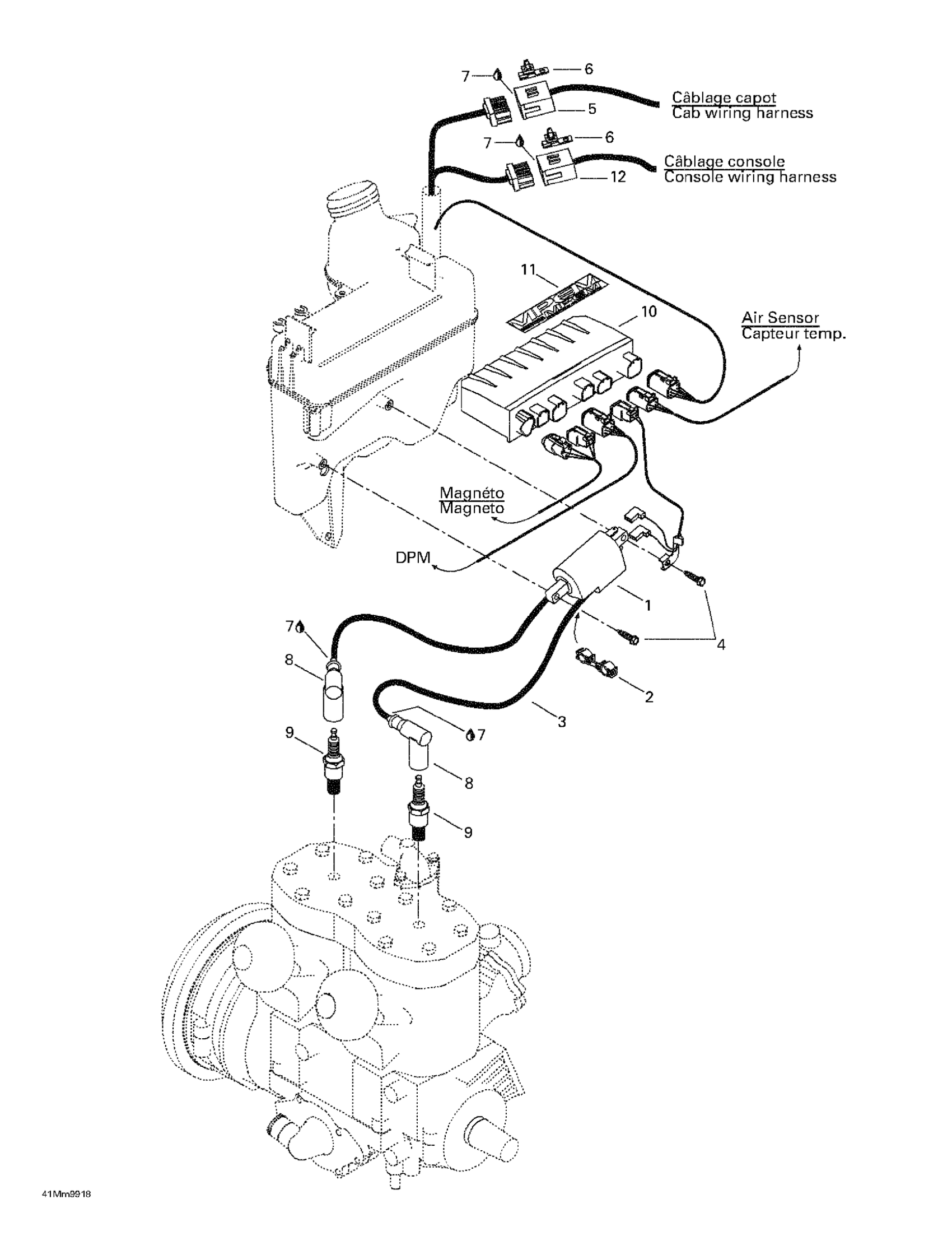

Ski-Doo Summit 600, 1999 03- Ignition Diagram

IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.

Plastic Clip, Spark Plug Wire

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

Housing Support

Was 293550004 Dielectric Grease, 150 g

SPARK PLUG CAP - Call your local BRP dealership

Spark Plug NGK BR9ES This part replaces 414961100.

Calibration Module

Electrical Box Decal

Not Available As Spare Part - Friction Washer
