Description

Price

1

Crankcase Ass'y | Includes 1 - 11. MXZ X 440 LC.

420888203

Unavailable

2

Hex. Collar Screw M8 x 75 | Formula Z 700.

420841316

Unavailable

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.44

5

Stud M10 x 23/17

420941646

Unavailable

6

Check Valve

420956511

$35.99

7

Center Pin 8 X 12

420632010

$4.01

8

Cable Grommet

420860965

$14.28

9

T-Fitting | Formula Z 700.

420874360

Unavailable

10

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

11

Ball Bearing

420232100

$20.99

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$369.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$15.36

15

Ball Bearing

420232100

$20.99

16

Rotary Seal

420650371

$43.49

17

O-Ring

420950890

$4.44

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

$1.90

20

Thrust Washer

420227945

$4.01

21

Water Impeller

420222505

$19.99

22

Gasket This part replaces 420931810.

420931811

$13.76

23

Water Pump Housing

420922630

$61.49

24

Hex. Screw M6 X 25

420240034

$1.90

25

O-Ring

293300041

$8.57

26

Oil Pump Ass’Y, 600

420888260

$489.99

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Hose 1500Mm Long

219704404

$17.26

29

Short Block Ass'y | MXZ 600.

420059301

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

Sealant Loctite 648

219703000

$45.99

32

Dow Corning 111, 150 g

413707000

$59.99

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Petamo Grease, GHY133N, 400 g

420899271

$67.99

35

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

36

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99

37

Flat Washer 10 mm

234001410

$1.26

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.37

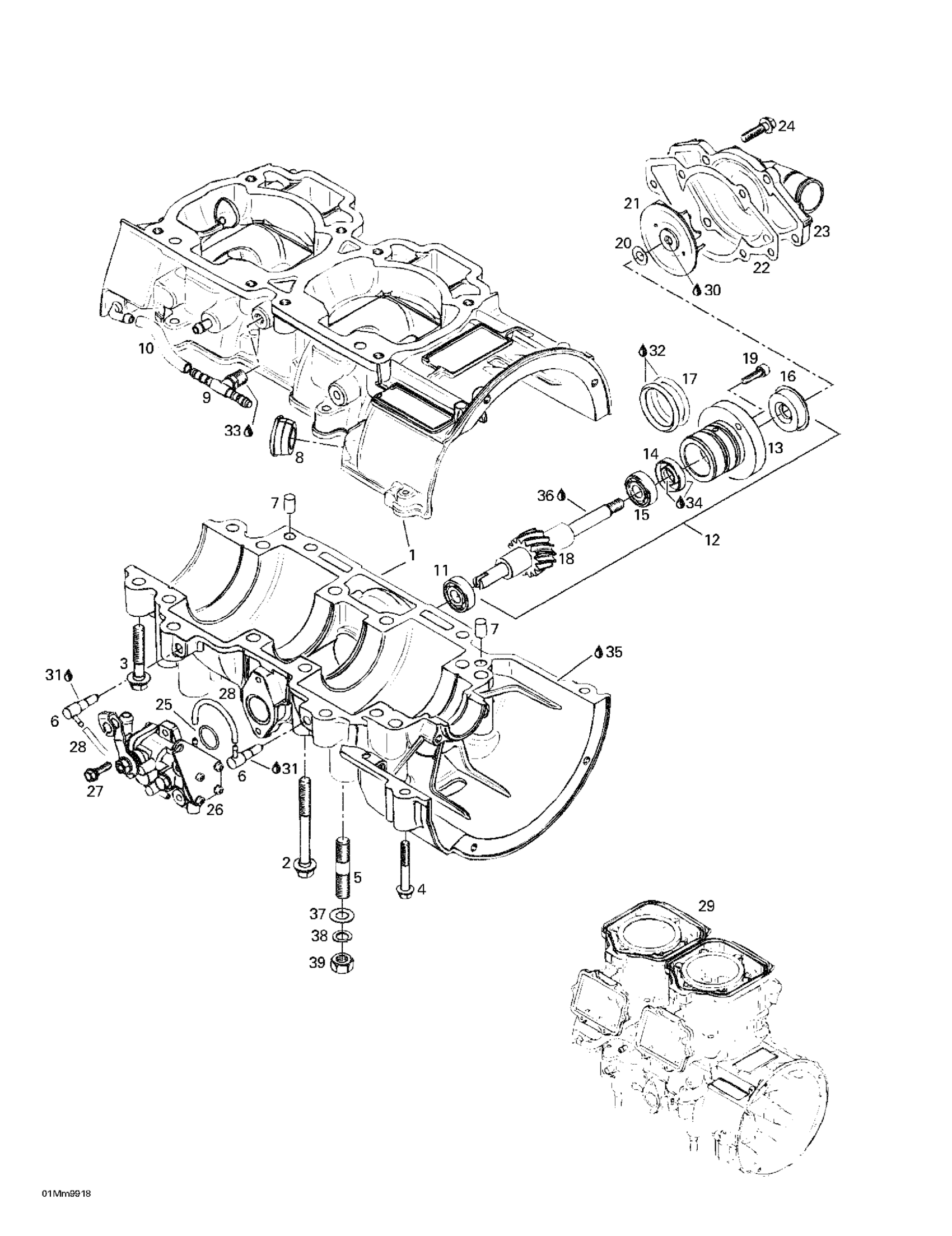

Ski-Doo Summit 600, 1999 01- Crankcase, Water Pump And Oil Pump Diagram

Crankcase Ass'y | Includes 1 - 11. MXZ X 440 LC.

Hex. Collar Screw M8 x 75 | Formula Z 700.

Hex. Collar Screw M8 x 45

Allen Screw M6 x 45 This part replaces 420640311.

Stud M10 x 23/17

Check Valve

Center Pin 8 X 12

Cable Grommet

T-Fitting | Formula Z 700.

Was 415110000 Polyurethane Hose 5.2 mm

Ball Bearing

Water Pump/Oil Pump Ass'y | Includes 12 to 18

Not Available As Spare Part - Friction Washer

Oil Seal

Ball Bearing

Rotary Seal

O-Ring

Not Available As Spare Part - Friction Washer

Allen Screw M5 x 16

Thrust Washer

Water Impeller

Gasket This part replaces 420931810.

Water Pump Housing

Hex. Screw M6 X 25

O-Ring

Oil Pump Ass’Y, 600

Taptite Screw M5 X 16

Oil Hose 1500Mm Long

Short Block Ass'y | MXZ 600.

Loctite 243, 10 ml

Sealant Loctite 648

Dow Corning 111, 150 g

Not Available As Spare Part - Friction Washer

Petamo Grease, GHY133N, 400 g

Sealing Compound Loctite 5366 310Ml

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

Flat Washer 10 mm

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

Hex. Nut M10 X 1.5
