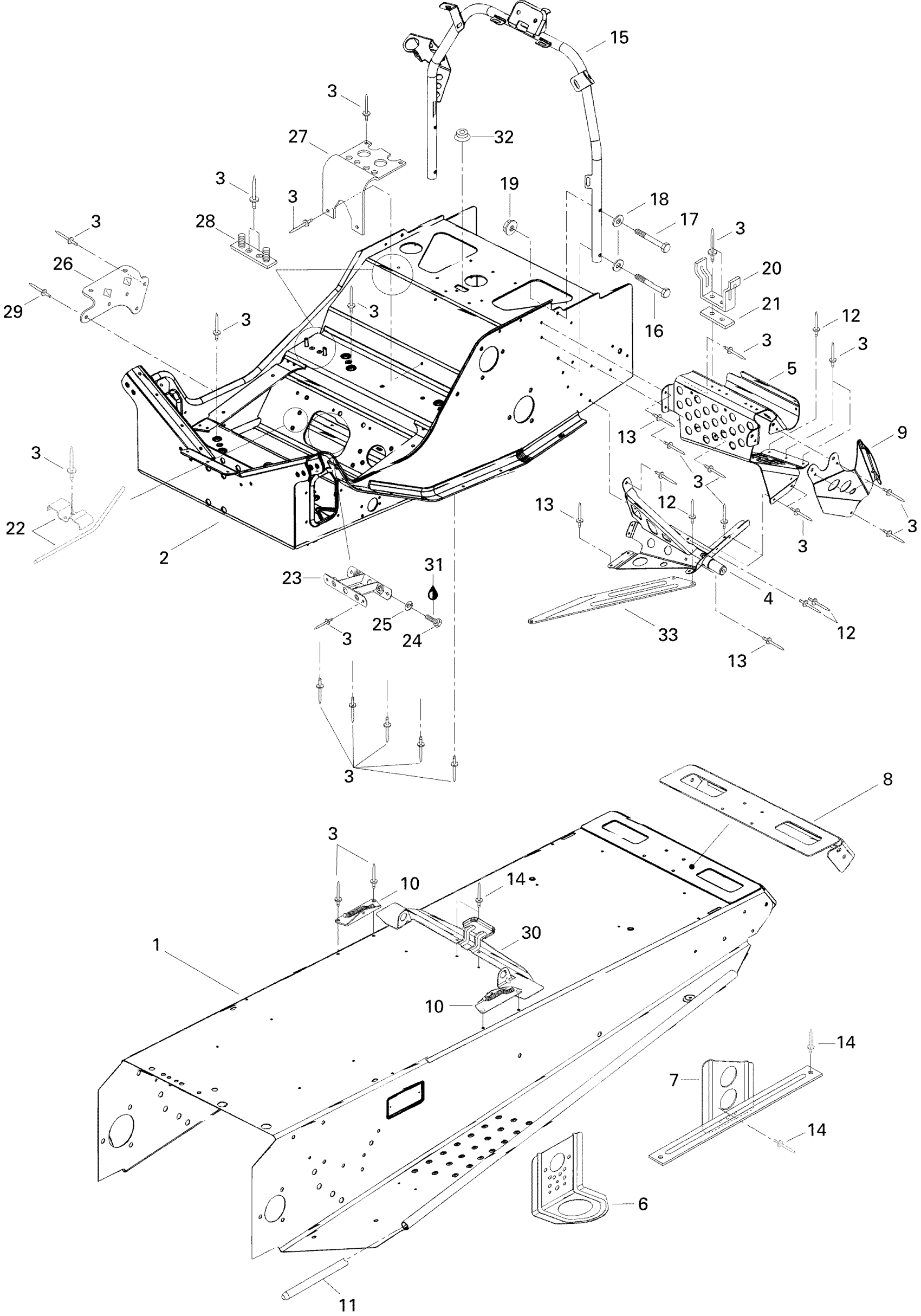

Ski-Doo Summit 583, 1996 09- Frame and Components 583, 670 Diagram

Tunnel

518313251

Unavailable

Front Member

518313050

Unavailable

Pop Rivet 3/16"

390402200

$0.35

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

RH Support

518312901

Unavailable

RH Front Footrest

518313804

Unavailable

LH Front Footrest

518313805

Unavailable

Front Bracket

518312910

Unavailable

LH Rear Bracket

518315205

Unavailable

RH Rear Bracket

518315206

Unavailable

Cap-End

518308717

Unavailable

Upper Plate L.H

518308714

Unavailable

Upper Plate R.H

518308715

Unavailable

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

Avex Rivet

390909200

$0.30

Avex Rivet

390909100

$0.30

Pop Rivet 3/16"

390402400

$0.35

Handle Steering Support

518309200

Unavailable

Hex. Screw M6 X 40

207064044

$1.48

Hex. Flange Screw M6 X 35

207063544

$1.37

Flat Washer 6 mm

234061410

$1.36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Belt Guard Bracket

518202100

$17.49

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

Guide Rope

517313700

Unavailable

Reinf. Plate

518304741

Unavailable

Hex. Screw M8 X 20

207182044

$0.74

Lock Washer 8 mm

234181401

$0.92

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

Support Plate

518315300

Unavailable

Pop Rivet 3/16"

390402300

$0.75

Seat Bracket

518310208

Unavailable

Loctite 271, 10 ml

293800005

$26.99

CAP - Call your local BRP dealership

414859400

Unavailable

RH Reinf. Plate

518312929

Unavailable

LH Reinf. Plate

518312930

Unavailable
