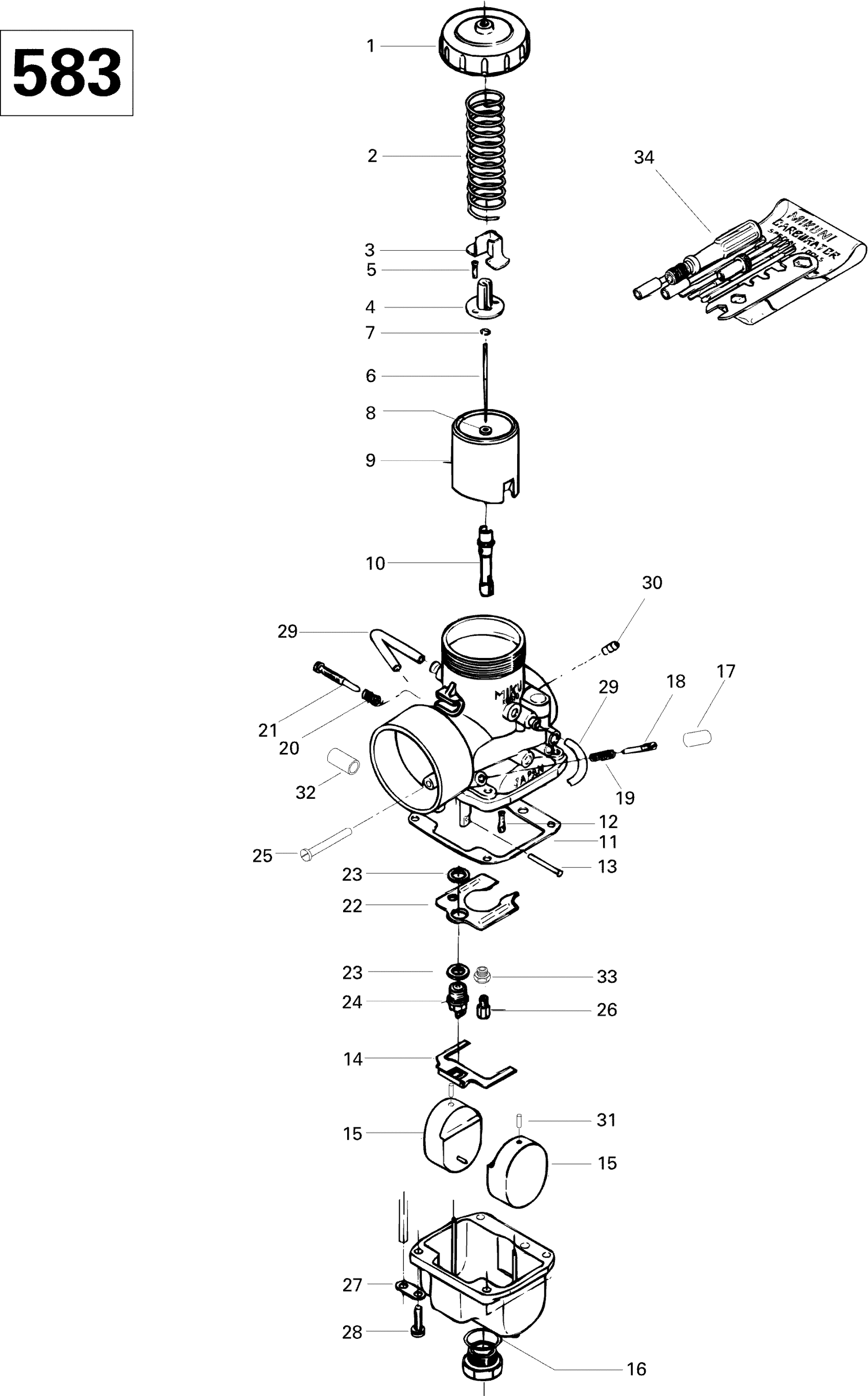

Ski-Doo Summit 583, 1996 02- Carburetor 583 Diagram

VM 38-319 Carburetor (PTO) | Includes 1 to 33

403125800

Unavailable

VM 38-320 Carburetor (MAG) | Includes 1 to 33

403125900

Unavailable

COVER - Call your local BRP dealership

404105100

Unavailable

Spring

404154800

$23.99

Cover

404122100

$19.49

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

Screw With Washer

404121300

$4.14

Jet Needle J8 6BGY15 | Formula 583.

404157500

Unavailable

E-Ring

404152400

$7.27

Packing

404117000

$3.29

Piston Valve CA 2.5

404131300

Unavailable

Needle Jet NJ-480-Q6 | Summit 500.

404157600

Unavailable

GASKET - Call your local BRP dealership

404104700

Unavailable

Pilot Jet PJ 75 | Summit 500.

404148100

Unavailable

Lever Pin

404103300

$6.27

Float Arm

404153300

Unavailable

FLOAT - Call your local BRP dealership

404105400

Unavailable

O-RING - Call your local BRP dealership

404101500

Unavailable

Cap

404155200

Unavailable

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

SPRING - Call your local BRP dealership

404139800

Unavailable

Spring

404101700

$4.14

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Seat Washer

404101600

$3.29

Needle Valve 1.5

404147400

$42.49

Plug Screw

404131700

Unavailable

Main Jet 330

404101400

$8.36

Main Jet MJ 320 (PTO) | Grand Touring 500.

404101300

$8.36

PLATE - Call your local BRP dealership

404103000

Unavailable

Screw With Lock Washer

404102000

$3.18

Hose | Grand Touring SE.

404109800

Unavailable

NIPPLE - Call your local BRP dealership

404127600

Unavailable

Cap

404105800

$6.38

Cap

270500095

$9.59

Guide Screw

404105500

$31.99

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
