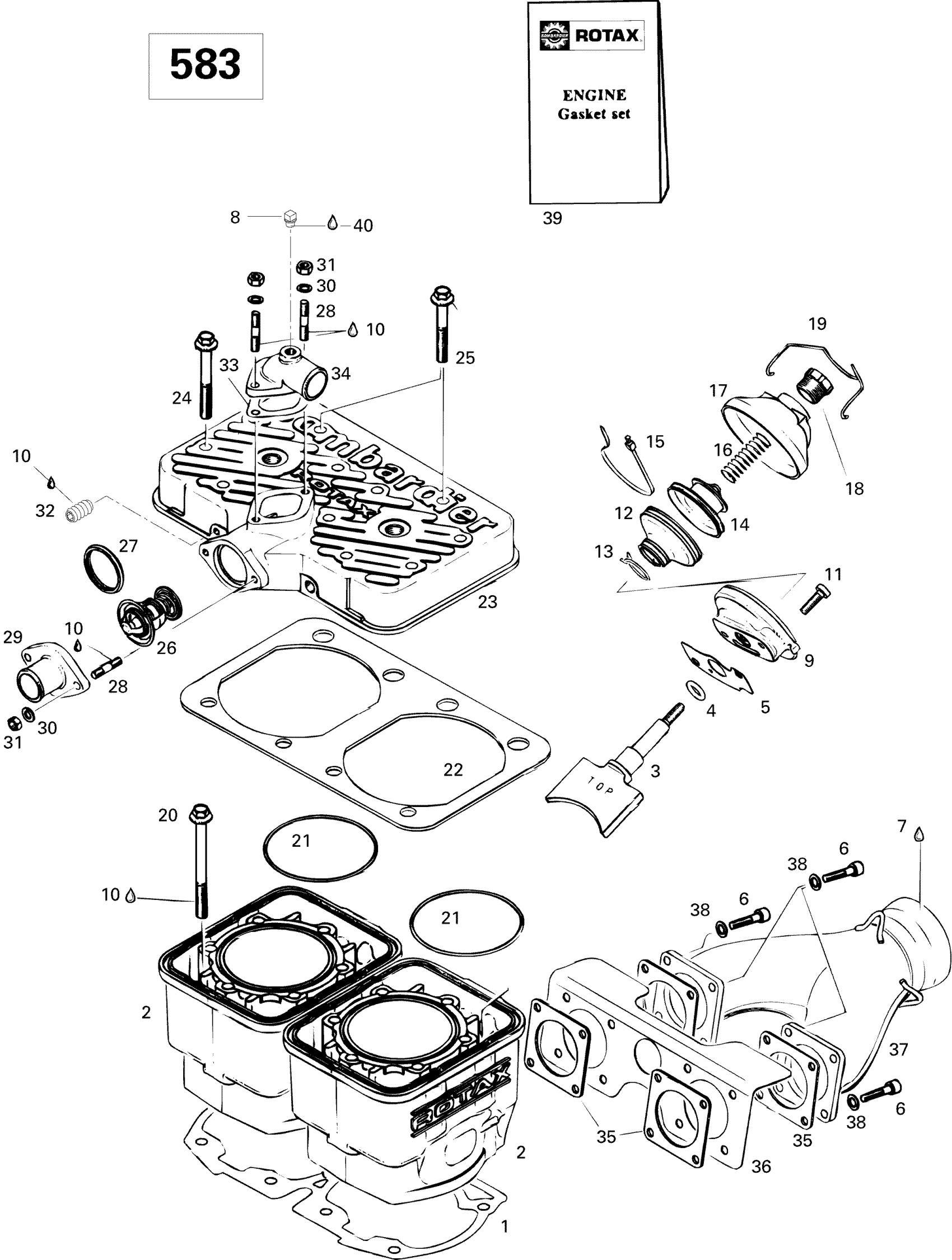

Ski-Doo Summit 583, 1996 01- Cylinder And Exhaust Manifold 583 Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420931185

Unavailable

2

Cylinder With Sleeve

420923067

Unavailable

3

Exhaust Valve | Formula Deluxe 583.

420854310

Unavailable

4

O-Ring

420430110

$4.44

5

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420230256

Unavailable

6

Socket Head Screw M6 X 25

205062544

$1.15

7

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

8

Plug

414184400

Unavailable

9

Valve Rod Housing | Formula Deluxe 583.

420253275

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

Socket Head Screw M6 x 16

420241237

$2.22

12

Bellow

420260721

$51.99

13

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

14

Exhaust Valve This part replaces 290253257.

420854449

$35.99

15

Clamp 77 mm | Formula Deluxe 583.

420251920

Unavailable

16

SPRING - Call your local BRP dealership

420239948

Unavailable

17

Valve Cover

420911552

$38.99

18

Adjuster Screw

420241221

$14.22

19

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

20

Hex. Screw M8 x 90 | Formula Deluxe 583.

420440366

Unavailable

21

O-Ring This part replaces 420850540.

293300026

$3.39

22

RUBBER GASKET - Call your local BRP dealership | Formula Deluxe 583.

420850560

Unavailable

23

Cylinder head, (Viper Red) | Formula 500. Formula 583 Deluxe. .

420923053

Unavailable

24

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

25

Hex. Screw M8 X 56.5

420941627

$8.57

26

Thermostat This part replaces 414834100.

420922519

$63.99

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

Stud M6 x 18 | Formula Z 583. Formula 583 Deluxe.

420941160

Unavailable

29

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Nut M6

232061414

$0.53

32

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

33

Gasket

420850338

$11.60

34

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

35

Gasket

420850552

$8.85

36

Heat Deflector | Formula Z. Formula 583.

420975777

Unavailable

37

Exhaust Manifold

420973987

Unavailable

38

Lock Washer M6, Black

234161471

$0.53

39

Gasket Set

420995878

Unavailable

40

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99
