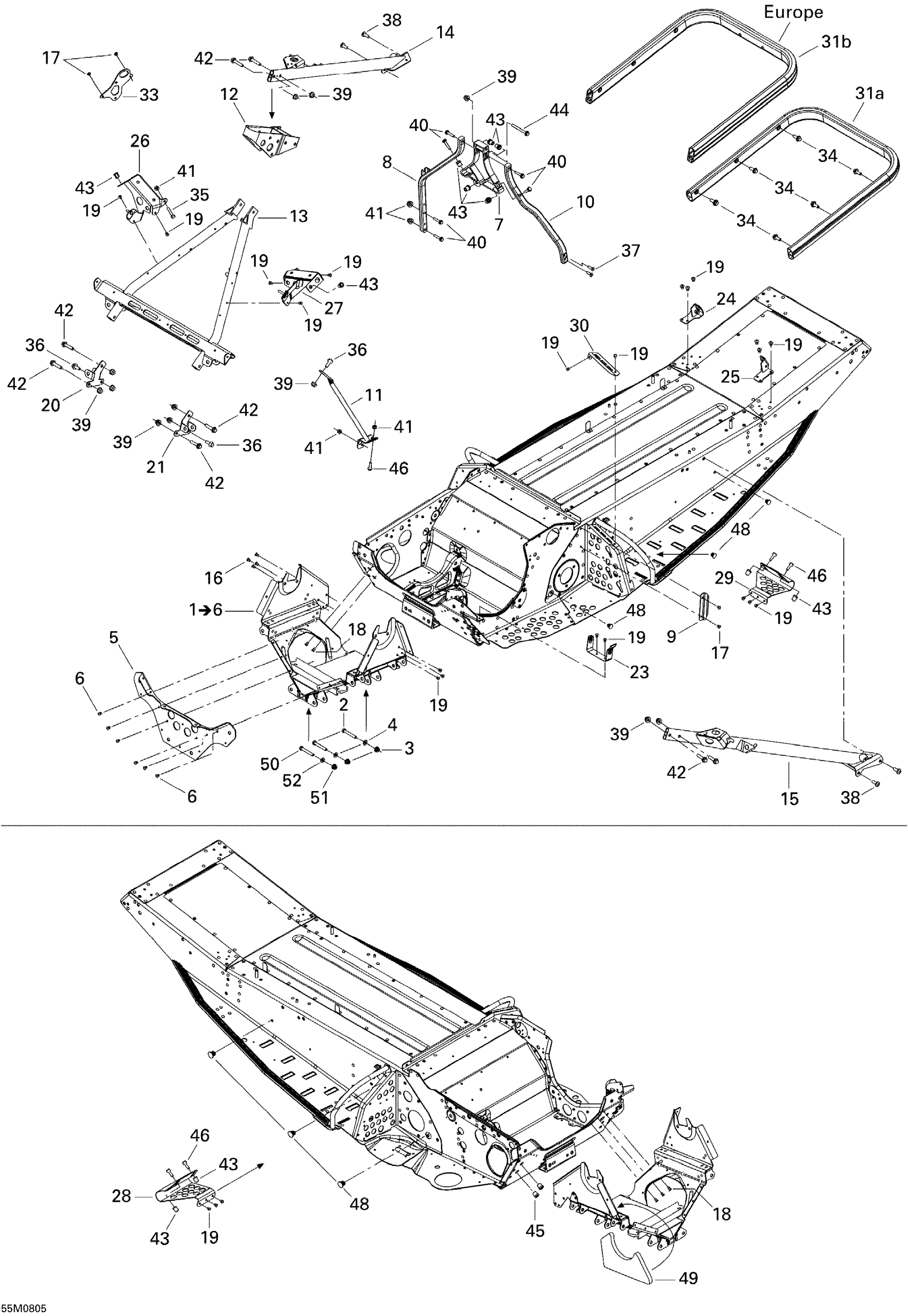

Ski-Doo Summit 550F, 2008 09- Frame and Components Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 55

207085544

$1.68

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Flat Washer 8 mm

234081410

$0.83

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Avex Rivet

390909100

$0.30

7

CENTER STIFFENER - Call your local BRP dealership

518324377

Unavailable

8

RH HANDLE SUPPORT - Call your local BRP dealership

518324397

Unavailable

9

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

10

LH HANDLE SUPPORT - Call your local BRP dealership

518324376

Unavailable

11

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

12

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

13

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

14

RH Member

518323352

Unavailable

15

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

16

Hemlock Rivet, 6.5 mm

293150119

$4.29

17

Pop Rivet 3/16"

390402200

$0.35

18

Avex Rivet

390909100

$0.30

19

Avex Rivet

390909200

$0.30

20

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

21

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

23

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

24

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

25

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

26

RH CONSOLE SUPPORT - Call your local BRP dealership

518324513

Unavailable

27

LH Console Support

518323536

Unavailable

28

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

29

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

30

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

31a

REAR BUMPER - Call your local BRP dealership | Except Europe

518325218

Unavailable

31b

REAR BUMPER - Call your local BRP dealership | Europe

518325219

Unavailable

33

PLATE - Call your local BRP dealership

518324315

Unavailable

34

Hex. Screw M8 X 20

236282084

$1.48

35

Hex. Flange Screw M6 X 35

207063544

$1.37

36

Hex. Flange Screw M8 X 20

207682044

$1.15

37

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

38

Pan Head Torx Screw M8 X 12

250000887

$1.90

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

41

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

42

Hex. Flange Screw M8 X 35

207683544

$1.69

43

Insert

293450275

$12.99

44

Hex. Flange Screw M8 X 70

207687044

$7.41

45

Insert

293450166

$4.29

46

Hex. Flange Screw M6 X 20

207662044

$2.00

48

Panel Fastener

518321954

$7.69

49

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

50

Hex. Screw M8 X 55

207085544

$1.68

51

Hex. Flange Elastic Nut M8

233281414

$1.47

52

Flat Washer 8 mm

234081410

$0.83
