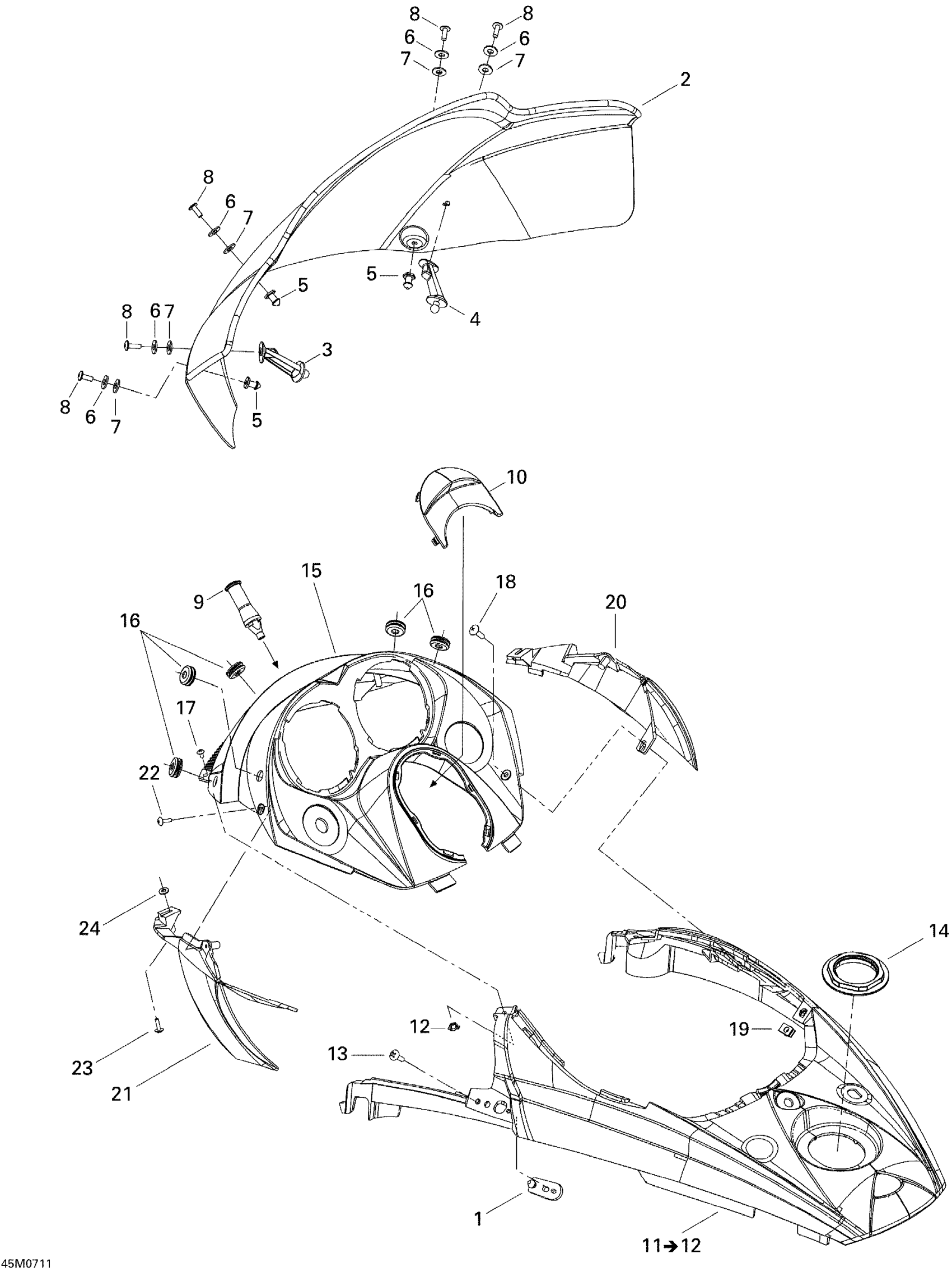

Ski-Doo Summit 550F, 2007 09- Windshield And Console Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

MEDIUM WINDSHIELD - Call your local BRP dealership

517303174

Unavailable

3

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303214

Unavailable

4

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303215

Unavailable

5

Knob

517303439

$4.55

6

Washer M5

250200025

$0.74

7

Rubber Washer 5 mm

250200024

$2.19

8

Torx Screw K50 X 16

250000720

$1.69

9

WINDSHIELD SUPPORT - Call your local BRP dealership

517303197

Unavailable

10

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

11

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 11 to 12

517303354

Unavailable

12

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

13

Torx Screw M6 X 20

250000722

$1.68

14

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

15

INDICATOR SUPPORT - Call your local BRP dealership

517303397

Unavailable

16

Grommet

517302841

$7.89

17

Torx Screw M4 X 8

250000127

$1.15

18

Torx Screw M5 X 20

250000724

$1.69

19

Panel Nut M5 X 0.8

250000958

$4.23

20

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

Unavailable

21

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

22

Phillips Screw K40 X 16

250000723

$0.98

23

Screw M4 X 16

250000725

$3.49

24

Flat Washer 4 mm, Stainless

234042600

$1.15
