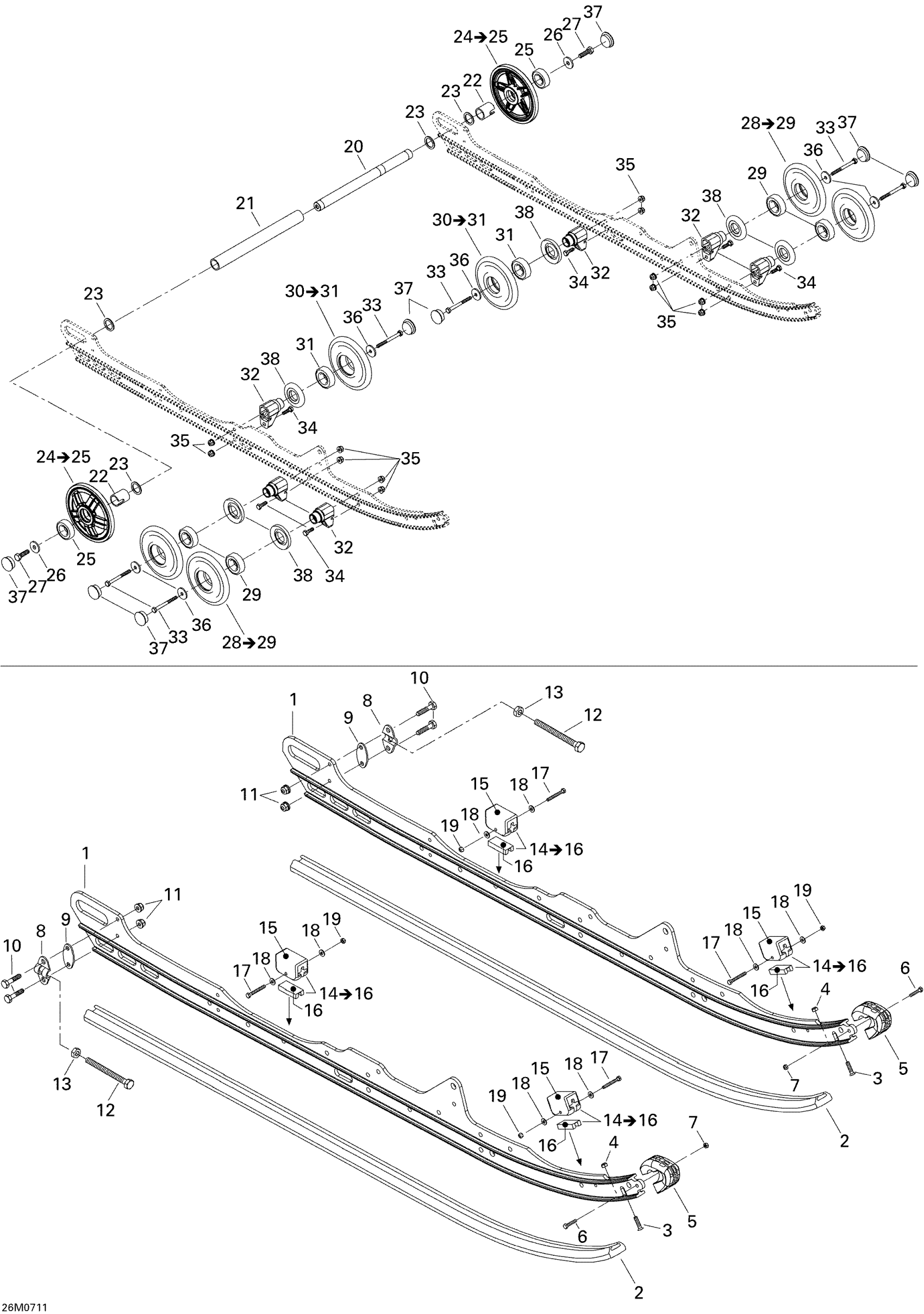

Ski-Doo Summit 550F, 2007 08- Rear Suspension Diagram

RAIL_SUSPENSION 136 MACHINED - Call your local BRP dealership

503191107

Unavailable

Slide Shoe

605355362

$29.49

Phillips Screw M6 X 25

208562560

$2.32

Elastic Stop Nut M6

232561414

$0.55

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

Hex. Flange Screw M5 X 25

207652544

$0.50

Hex. Flange Elastic Nut M5

233251414

$1.04

Tensioner

503155300

Unavailable

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

Hex. Screw M6 X 30

207063044

$1.26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

Elastic Locking Nut M10 X 1.5

233601416

$1.69

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

Rubber Stopper

570063000

Unavailable

Reinforcement Stopper

572084800

$12.99

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

Elastic Stop Nut M5

232551414

$0.87

Rear Axle

503190429

$59.99

Spacer

503191108

$19.99

Rear Wheel Spacer

503190428

$8.14

Washer

503190432

$14.22

WHEEL 165 MM, VIPER RED - Call your local BRP dealership | Includes 22 to 23

503191111

Unavailable

Ball Bearing | Package-STD

503190396

$14.30

Washer

503190439

$5.93

Hex. Screw With Nylon

250000019

$1.69

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

Ball Bearing | Package-STD

503190396

$14.30

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

Ball Bearing | Package-STD

503190396

$14.30

Support

503190580

Unavailable

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Hex. Screw M8 X 25

207182544

$0.90

Hex. Flange Elastic Nut M8

233281414

$1.47

Washer

211200041

$3.17

Wheel Cap

570063600

$3.49

Labyrinth Seal

503190434

$6.09
