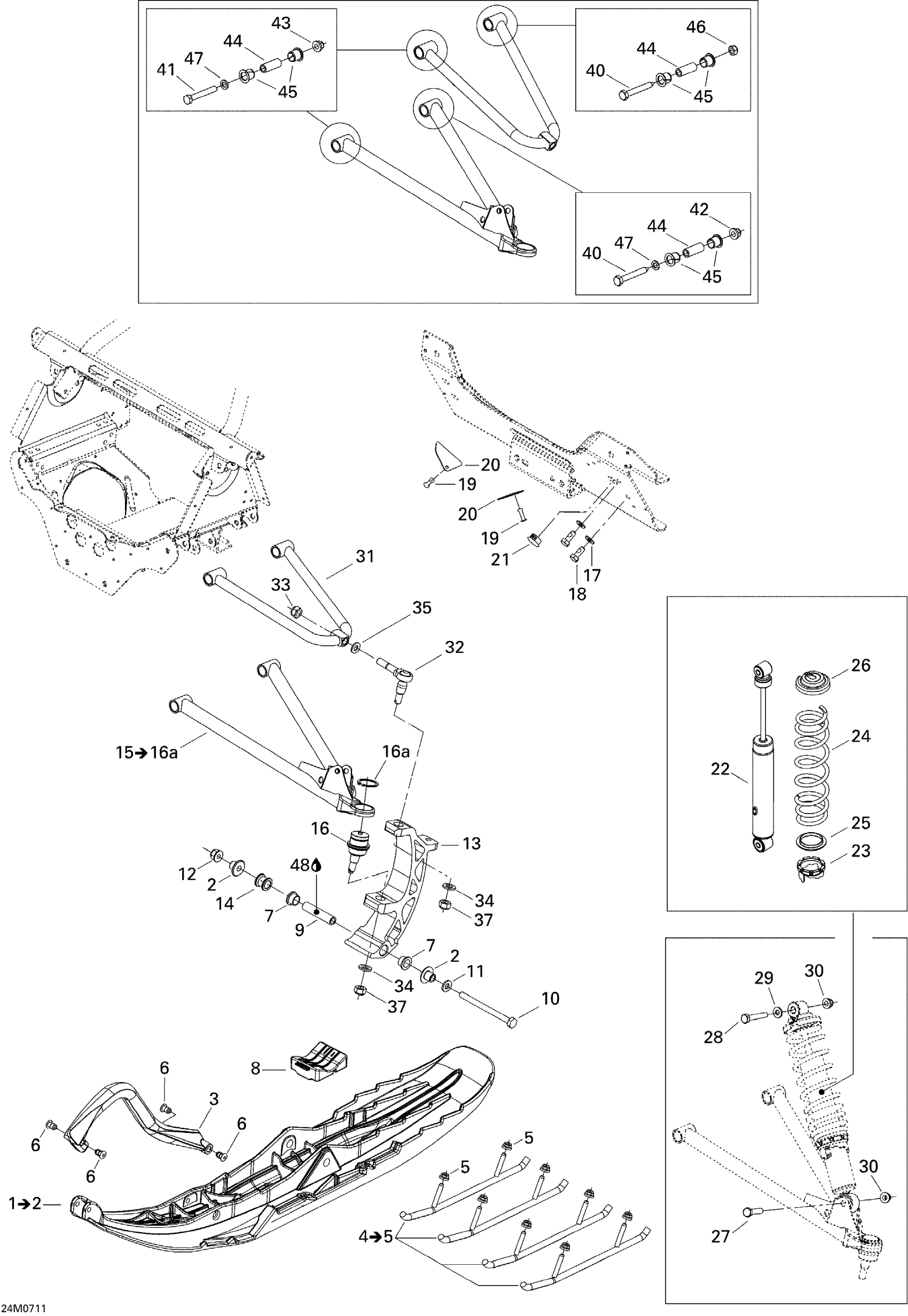

Ski-Doo Summit 550F, 2007 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$170.12

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$170.12

2

Ski Bushing

505071781

$14.90

3

Black, Handle

505070963

$34.30

4

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Retainer 17mm long

505071812

$4.30

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071779

$15.64

9

Spacer

506133300

$19.37

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Washer

732900049

$0.55

12

Flange Nut M10

732610084

$6.30

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

14

SPACER - Call your local BRP dealership

505071215

Unavailable

15

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512900

Unavailable

15

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

16

Ball Joint

505073636

$48.48

16a

Circlip

293370035

$2.48

17

Flat Washer 8 mm

234081410

$0.79

18

Hex. Screw With Nylon

250000118

Unavailable

19

Pop Rivet 3/16"

293150103

$0.52

20

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

21

CAP - Call your local BRP dealership

572072100

Unavailable

22

FRONT SHOCK - Call your local BRP dealership

505071662

Unavailable

23

Adjustment Cam

505073625

$11.82

24

Spring

505071837

Unavailable

25

Spring Guide

503187500

$8.46

26

Spring Stopper

706200881

$11.82

27

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

Washer

503189564

$0.70

30

Hex. Flange Elastic Nut M10

233201414

$1.45

31

UPPER ARM - Call your local BRP dealership

505071816

Unavailable

32

Upper Ball Joint

505072257

$16.39

33

Hex. Elastic Hex. Nut M12

250100089

$0.45

34

Flat Washer 12 mm

234021410

$0.66

35

Washer

503189276

$3.10

37

Hex. Elastic Hex. Nut M12

250100089

$0.45

40

Hex. Screw M10 X 75

250001063

$11.18

41

Hex. Screw M10 X 75

250001063

$11.18

42

Hex. Flange Elastic Nut M10

250100165

$0.81

43

Hex. Flange Elastic Nut M10

250100165

$0.81

44

Bushing

505070567

$19.37

45

Arm Bushing

505070566

$3.04

46

Elastic Flange Nut M10

232501416

$1.43

47

Washer

503189564

$0.70

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
