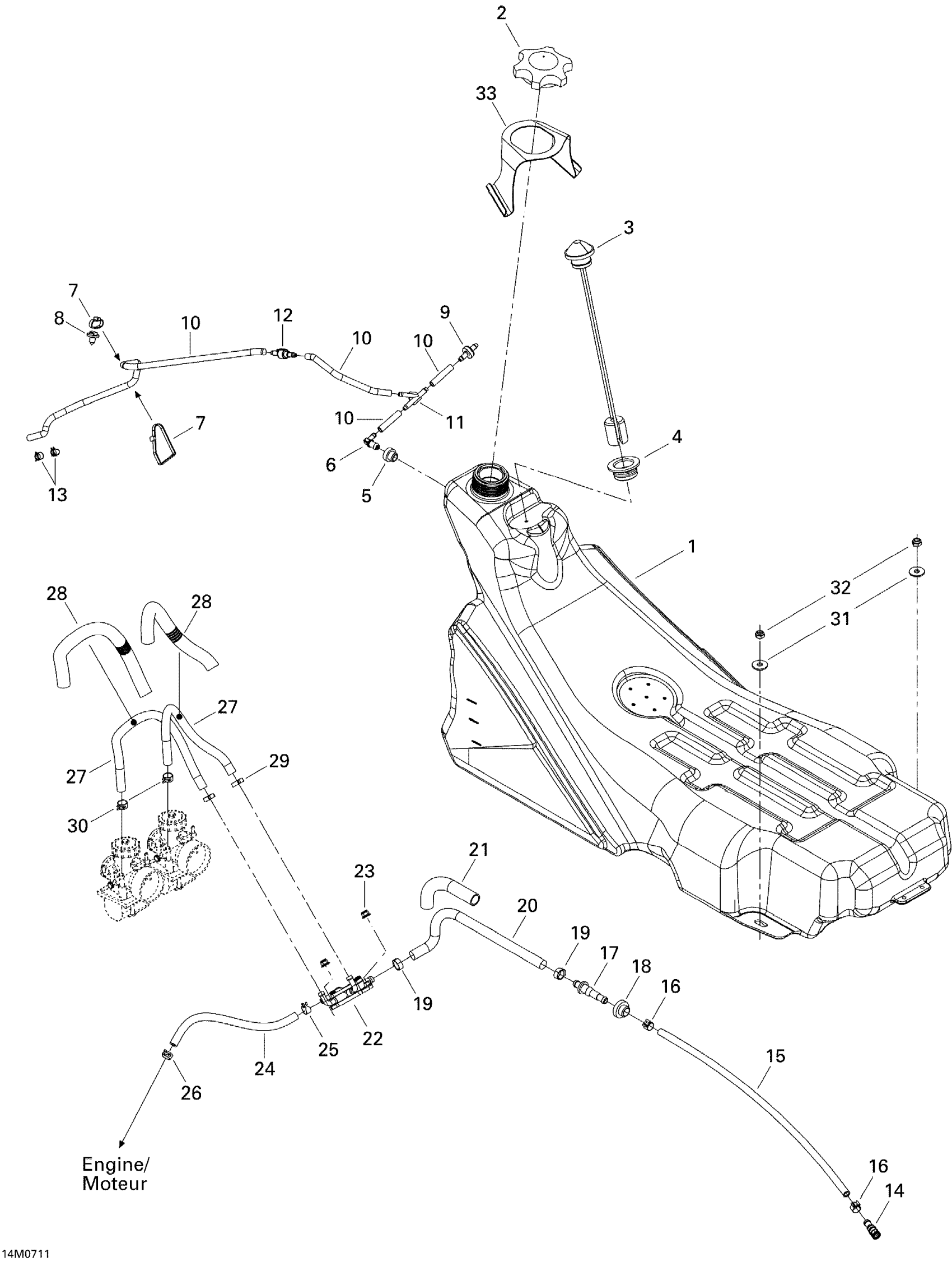

Ski-Doo Summit 550F, 2007 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033171

Unavailable

2

Fuel Tank Cap

513033025

$22.36

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$10.67

5

Grommet

513032908

$8.48

6

Male Connector

414580700

$3.88

7

Tie-Rap 180 mm

414115200

$0.10

8

Mount Dart

293730040

$0.99

9

Check Valve

275500398

$9.84

10

Polyurethane Hose 10000Mm Long

219704410

$52.96

11

Y-Fitting

293710059

$9.40

12

Check Valve

275500505

$29.07

13

Spring Clamp

414554800

$0.81

14

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

15

Hose

513033070

$12.24

16

Norma Spring Clamp

513033010

$8.42

17

Male Connector

414872700

Unavailable

18

Grommet | Europe

707800347

$8.70

19

Crimp Clamp

293650053

$2.78

20

Formed Hose

513033374

$28.33

21

Tubing 16 Mm 1000Mm Long

219704408

$7.15

22

Fuel Pump

403901813

$84.99

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

24

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

25

Spring Clamp

414415200

$0.81

26

Universal Spring Clamp

513033029

$4.96

27

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

28

Tubing 16 Mm 1000Mm Long

219704408

$7.15

29

Crimp Clamp, 15.3-706R

293650047

$3.03

30

Universal Spring Clamp

513033029

$4.96

31

Flat Washer 8 mm

234082410

$1.27

32

Hex. Elastic Stop Nut M8

232581414

$0.54

33

SUPPORT - Call your local BRP dealership

513033066

Unavailable
