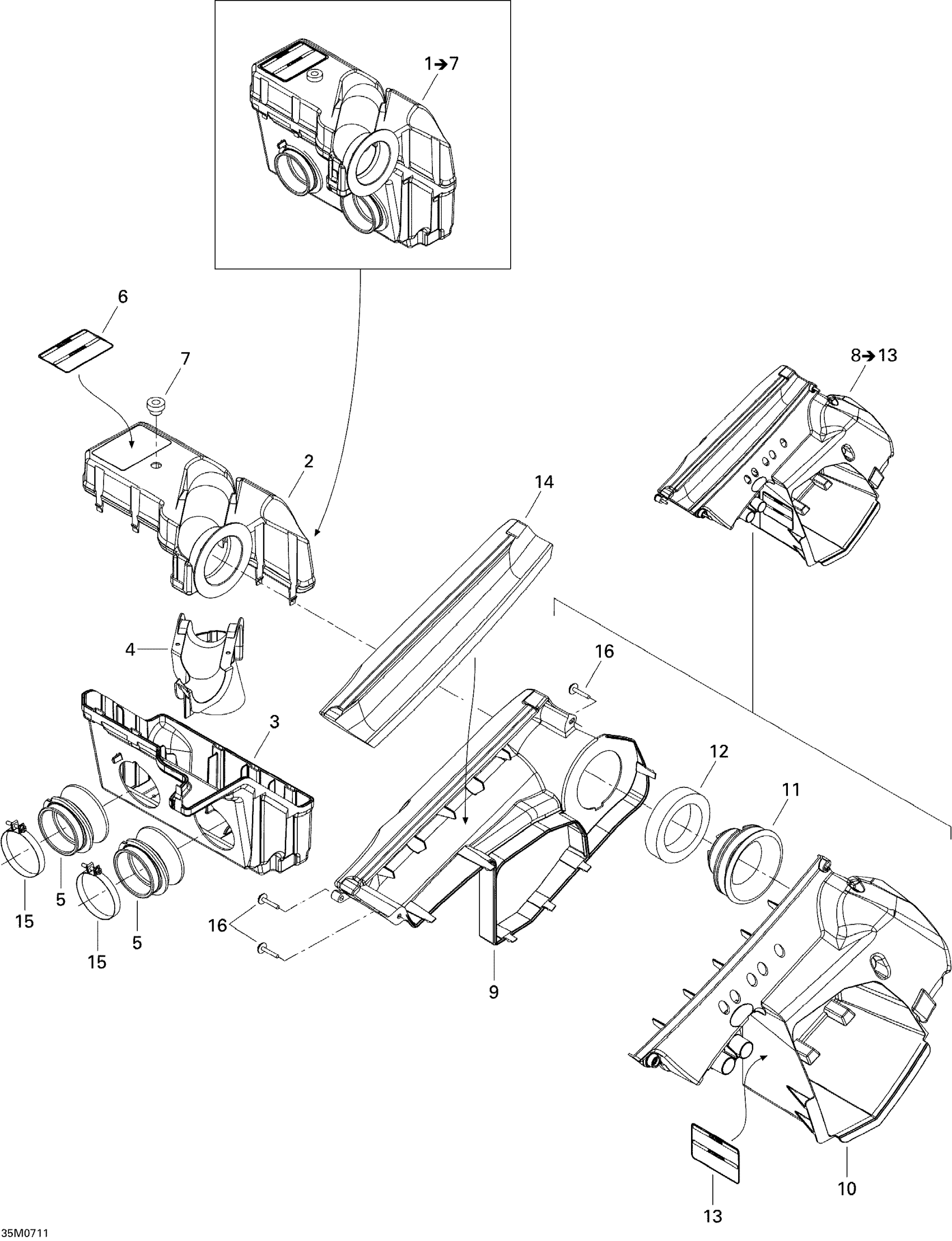

Ski-Doo Summit 550F, 2007 02- Air Intake System Diagram

#

Description
Price

1

Primary Chamber Ass'y | Includes 1 to 3

508000383

$84.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Grommet

513032908

$10.49

8

SECONDARY CHAMBER ASS'Y - Call your local BRP dealership | Includes 4 to 7

508000376

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

GUIDE - Call your local BRP dealership

508000240

Unavailable

12

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

13

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

14

Air Filter

508000394

$51.99

15

GEMI CLAMP - Call your local BRP dealership

508000344

Unavailable

16

Plastite Screw Type K-40, M4 X 25

250000101

$3.49
